AR65.10-P-9080-06GZ Install Antenna Module Cover

AR65.10-P-9080-06GZ Install Antenna Module Cover

Special Tools:

Workshop Equipment:

Place the antenna module cover (1) on the adhesive bead within 5 minutes of applying the adhesive to the body otherwise the bonding properties of the adhesive will be impaired.

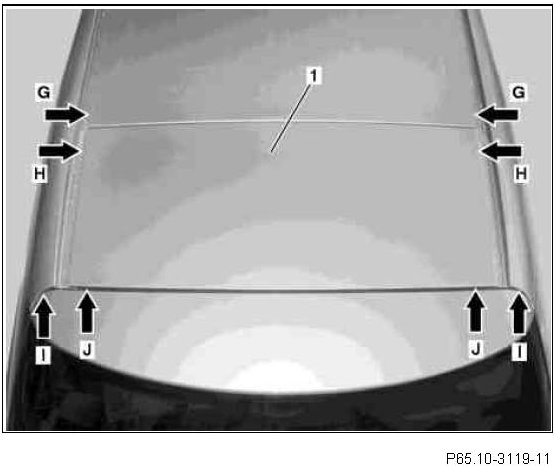

1. Position antenna module cover (1) above cutout with aid of a second person and carefully lower onto adhesive bead.
2. Push antenna module cover (1) lightly against rear roof paneling.

Pay attention to the test and adjustment values for the roof paneling.

3. Align roof paneling with antenna module cover (1) on left and right (G and H).
4. Make sure that gap (I and J) is identical on left and right.

Remove contamination caused by the adhesive immediately.

5. Carefully remove cup suction tool.
