AR65.10-P-9080-04GZ Prepare Antenna Module Cover For Installation

AR65.10-P-9080-04GZ Prepare Antenna Module Cover For Installation

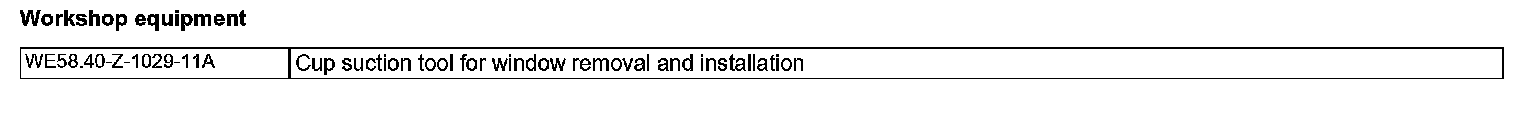

Workshop Equipment:

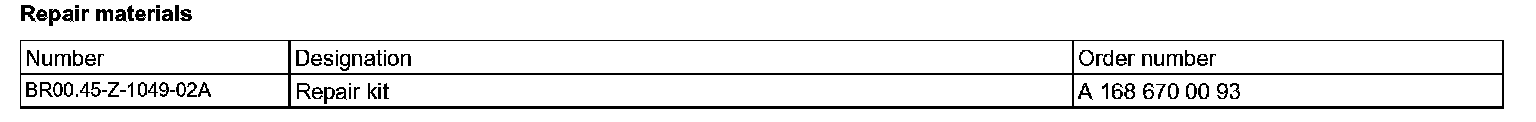

Repair Materials:

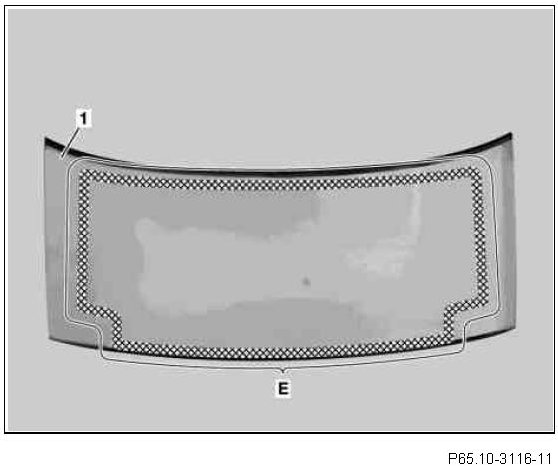

Wear cotton gloves. Ensure that there are no fingerprints on the bonding surface (E). To prevent adhesion problems when installing the window, keep the bonding surface (E) free of dust, oil, grease, wax, dirt residues and other adhesive substances.

1. Check antenna module cover (1) for damage.
2. Attach cup suction tool to outside of antenna module cover (1) and place antenna module cover (1) (with inside facing upwards) on a suitable support.
3. Apply glass activator to bonding surface (E) of antenna module cover (1) using part of paper towel and wipe with remaining part of paper towel.

Apply the glass activator to the black bonding surface (E) only. If glass activator gets onto transparent areas wipe off immediately. Allow glass activator to dry completely.

4. Apply glass primer to bonding surface (E) of antenna module cover (1) using application rod provided and allow to dry completely (flash-off time at least 10 min).
