GF14.20-P-4007P Component Description For the Exhaust Gas Recirculation Actuator

GF14.20-P-4007P Component Description For The Exhaust Gas Recirculation Actuator
ENGINE 642 in MODEL 203.0 /2, 221.0 /1 up to Model Year 2008 /AEJ 07
ENGINE 642.920 in MODEL 211.020 /220 /620
ENGINE 642.921 in MODEL 211.084 /089 /284 /289
ENGINE 642 in MODEL 164.1 /8, 251.0 /1 up to Model Year 2008 /AEJ 07
- except CODE (494) USA version
ENGINE 642.920 in MODEL 211.022
- except CODE (494) USA version
ENGINE 642.920 in MODEL 211.022 /222
- except CODE (498) Japan version
ENGINE 642 in MODEL 209.3 /4, 219.3
ENGINE 642 in MODEL 463.3 up to 31.5.12

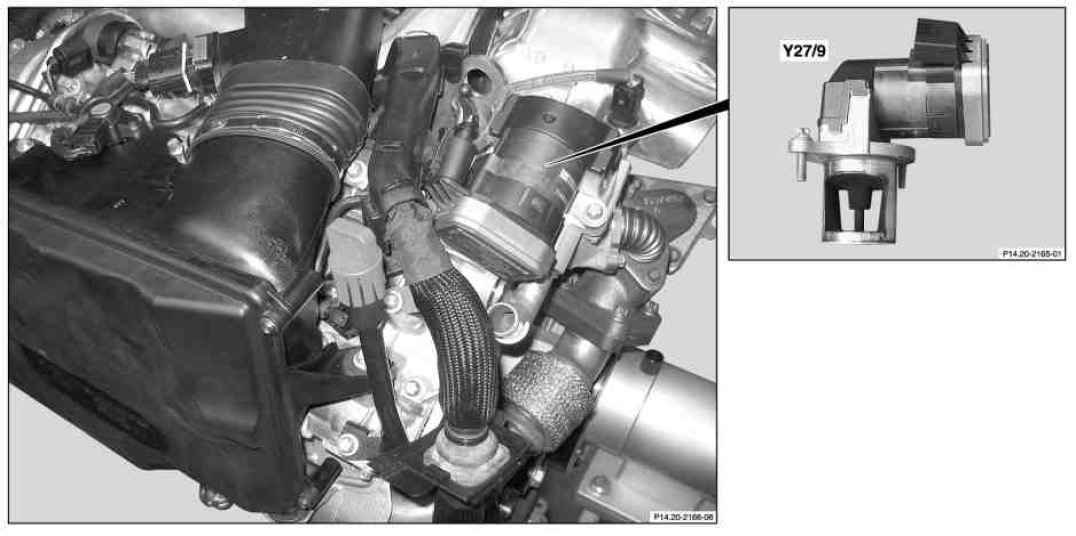

Y27/9 Left exhaust gas recirculation positioner

Location
The left exhaust gas recirculation actuator is located at the rear left next to the turbocharger.

Task
In order to reduce nitrogen oxide (NOX) emission the exhaust gas is led into the engine intake tract. This takes place via a duct, whose cross-section can be modified by the left exhaust gas recirculation positioner. The left exhaust gas recirculation positioner is actuated via the CDI control unit (N3/9).
