Humidity Sensor: Description and Operation

GF83.30-P-2129GZ Dew Point Sensor, Component Description
- with CODE (581) Comfort automatic air conditioning

Component Identification:

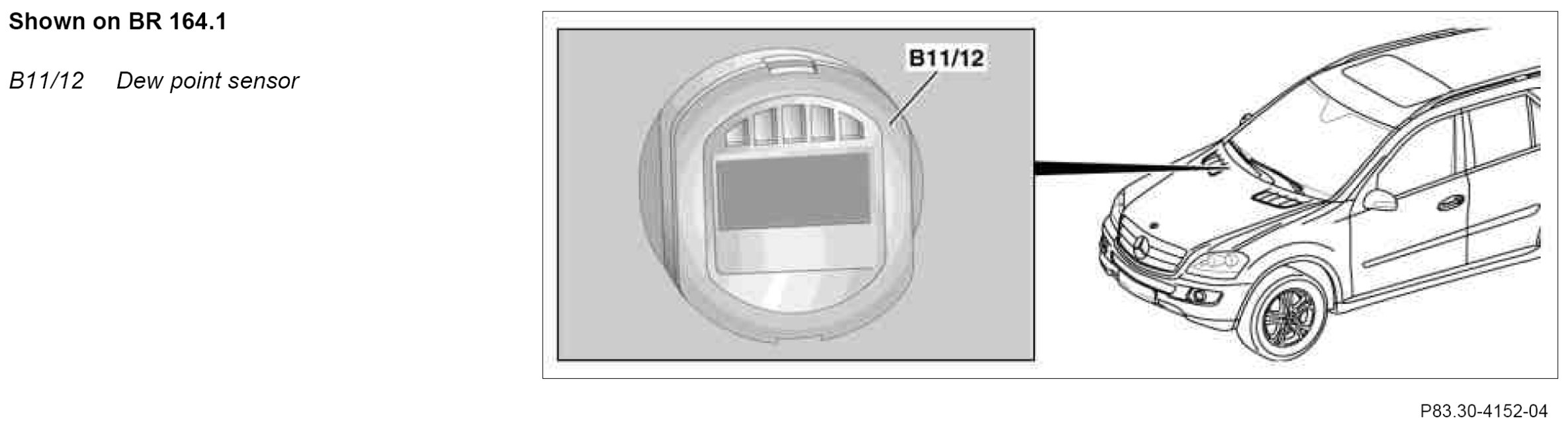

Location
The dew point sensor is located down at the front of the automatic air conditioning box.

Task
The dew point sensor is used to sense the air humidity.

Design
The dew point sensor comprises the following elements:
^ Measuring cell for humidity
^ Electrical connector
^ Electronic printed circuit board with processor

Function
The dew point sensor measures the air humidity of the suctioned air and forwards this measured value to the comfort AAC [KLA] control and operating unit (N22/7), thereby allowing it to regulate a demand-based, not too dry interior climate. The calculated measured value is additionally placed by the comfort AAC control and operating unit on the CAN interior. The left front door control unit (N69/1) and the right front door control unit (N69/2) read in this value to obtain the most favorably adjusted heated outside mirror.
