GF83.40-P-0004-03GZ Comfort Automatic Air Conditioning (C-AAC) Location of Components



GF83.40-P-0004-03GZ Comfort Automatic Air Conditioning (C-AAC) Location Of Components
- with CODE (581) Comfort automatic air conditioning
- except CODE (582) Rear air conditioner

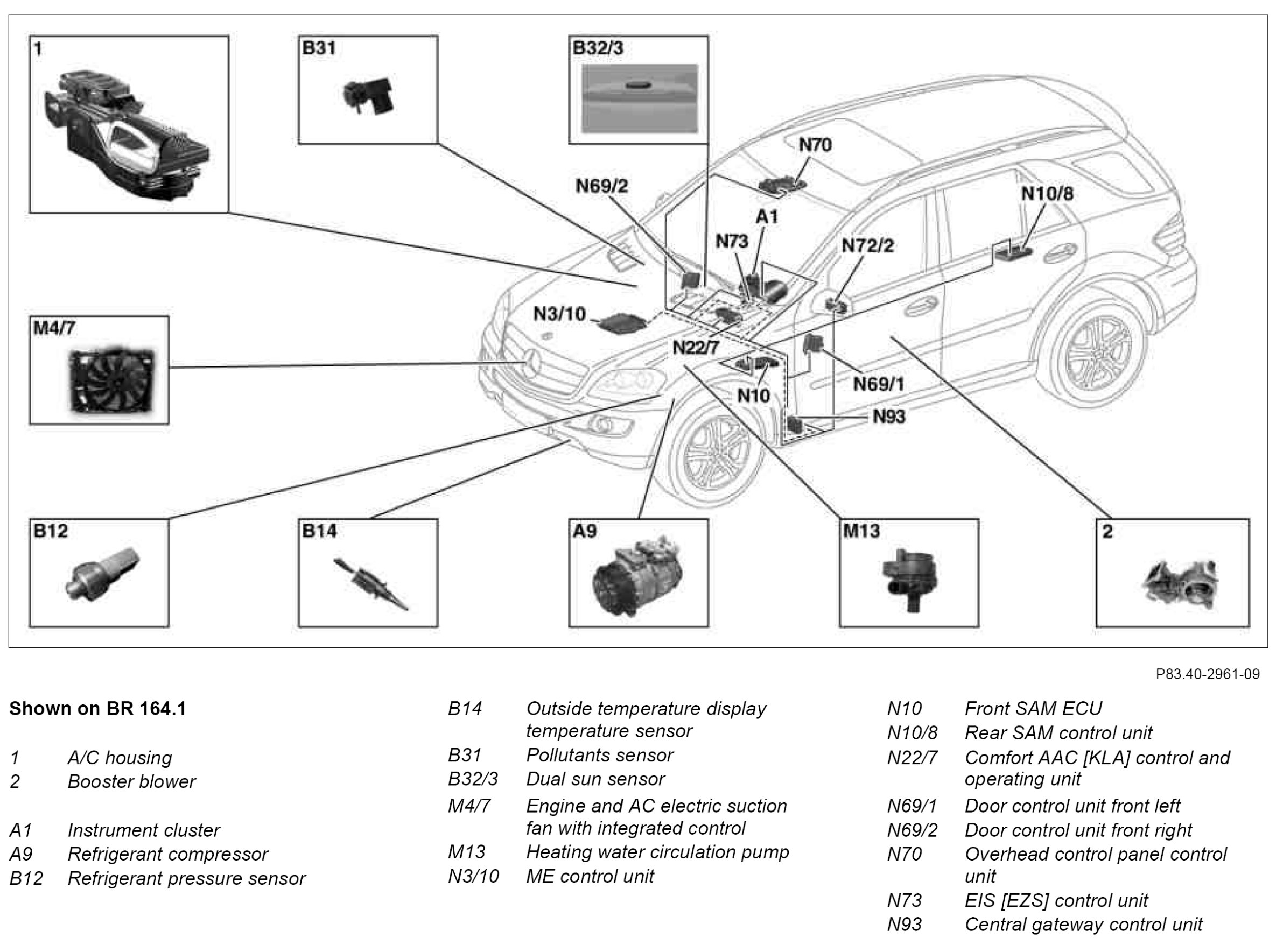

Component Identification:
