AR01.00-P-2410GZB Disconnect/Connect Engine Wiring Harness



AR01.00-P-2410GZB Disconnect/connect engine wiring harness

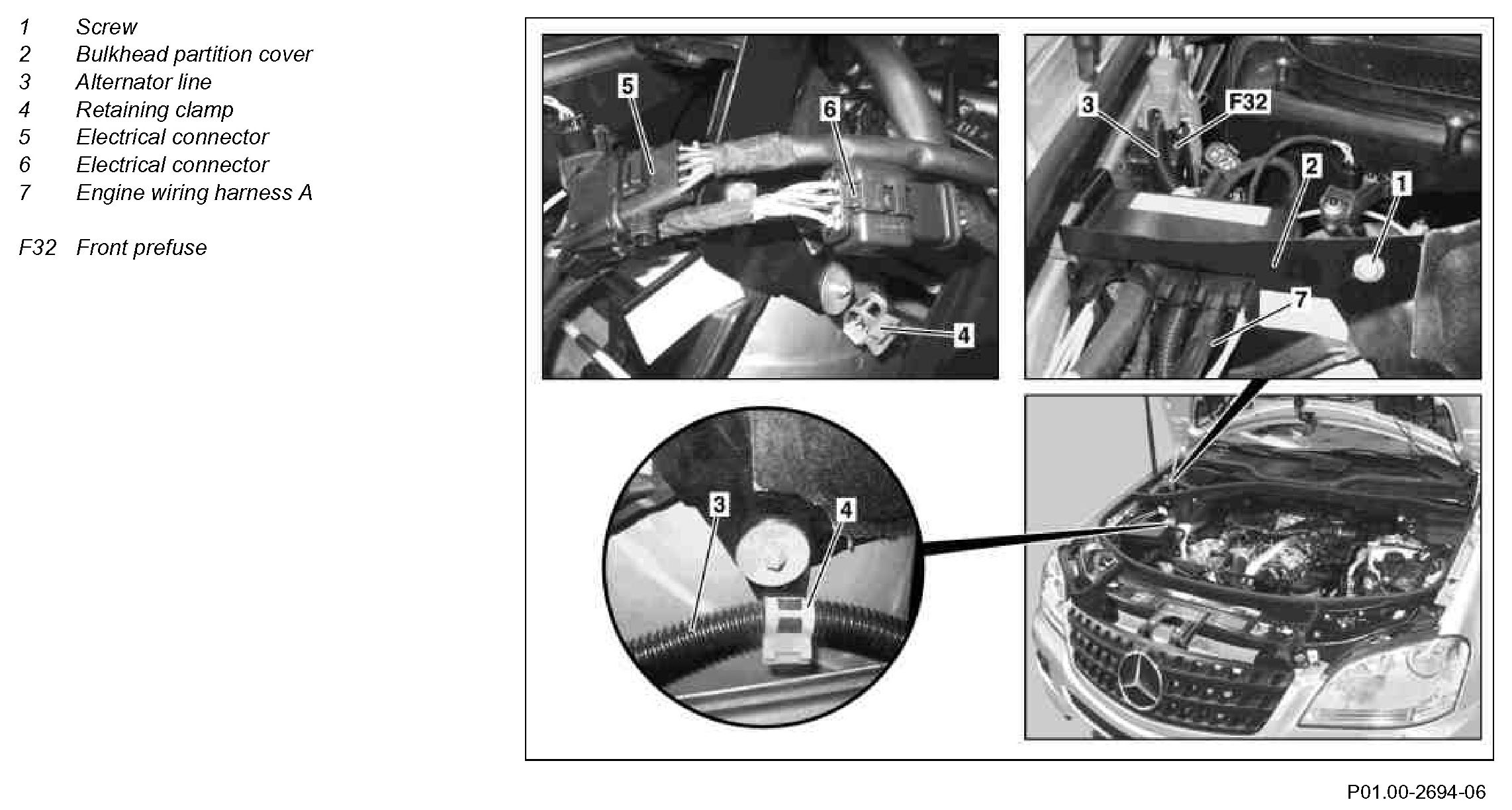

Component Identification:




Component Identification:

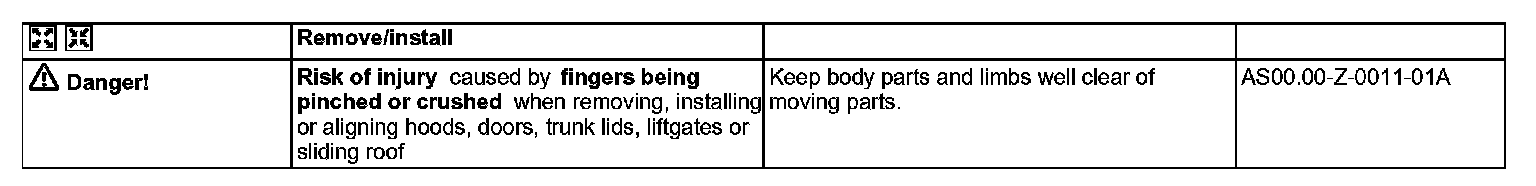

Remove/install Steps:




Steps 1-22:

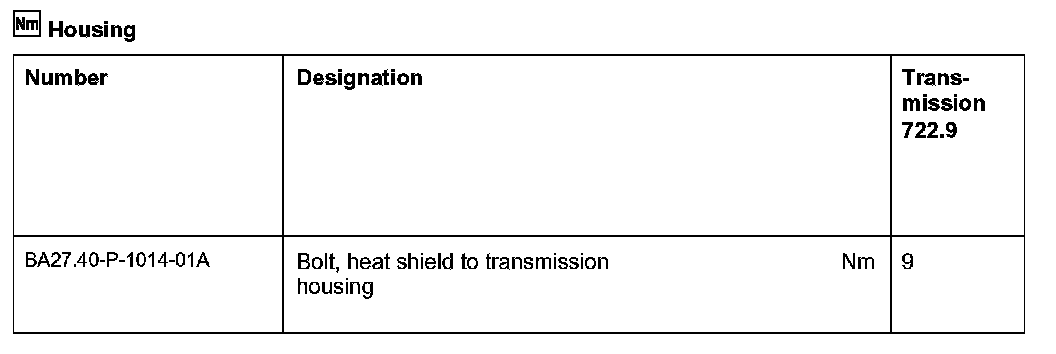

Housing:




Engine support (engine side):

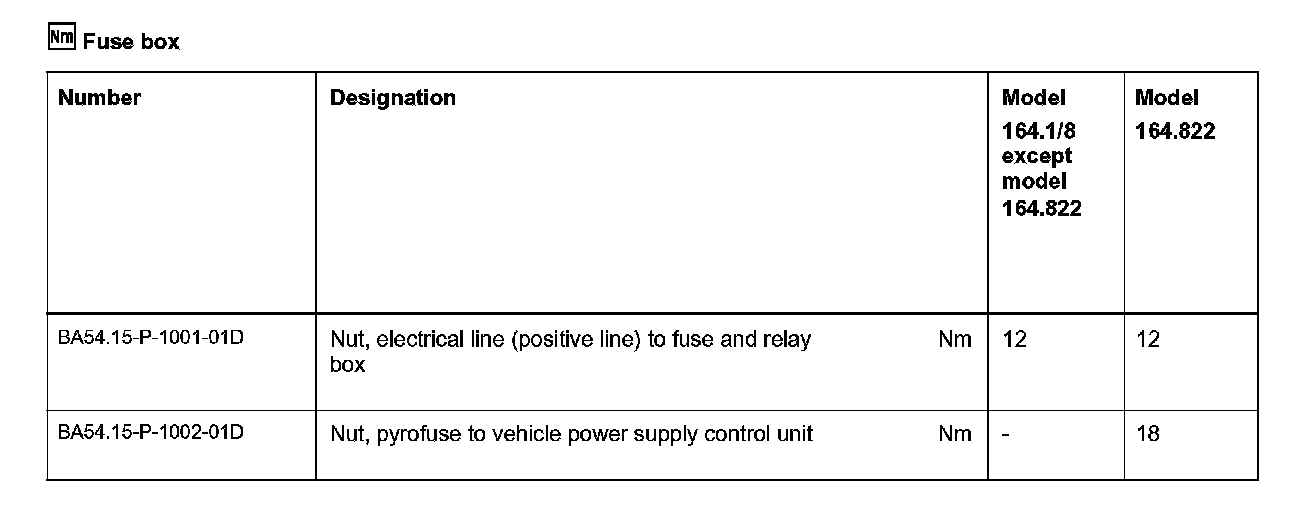

Fuse box:
