AR01.45-P-7555GZB Remove/Install Bottom Part of Oil Pan



AR01.45-P-7555GZB Remove/install bottom part of oil pan

Component Identification:

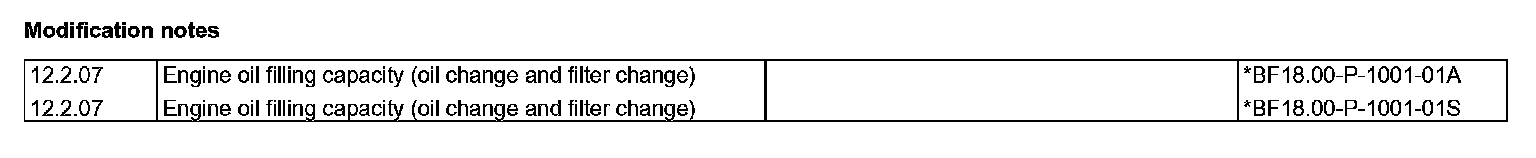

Modification notes:

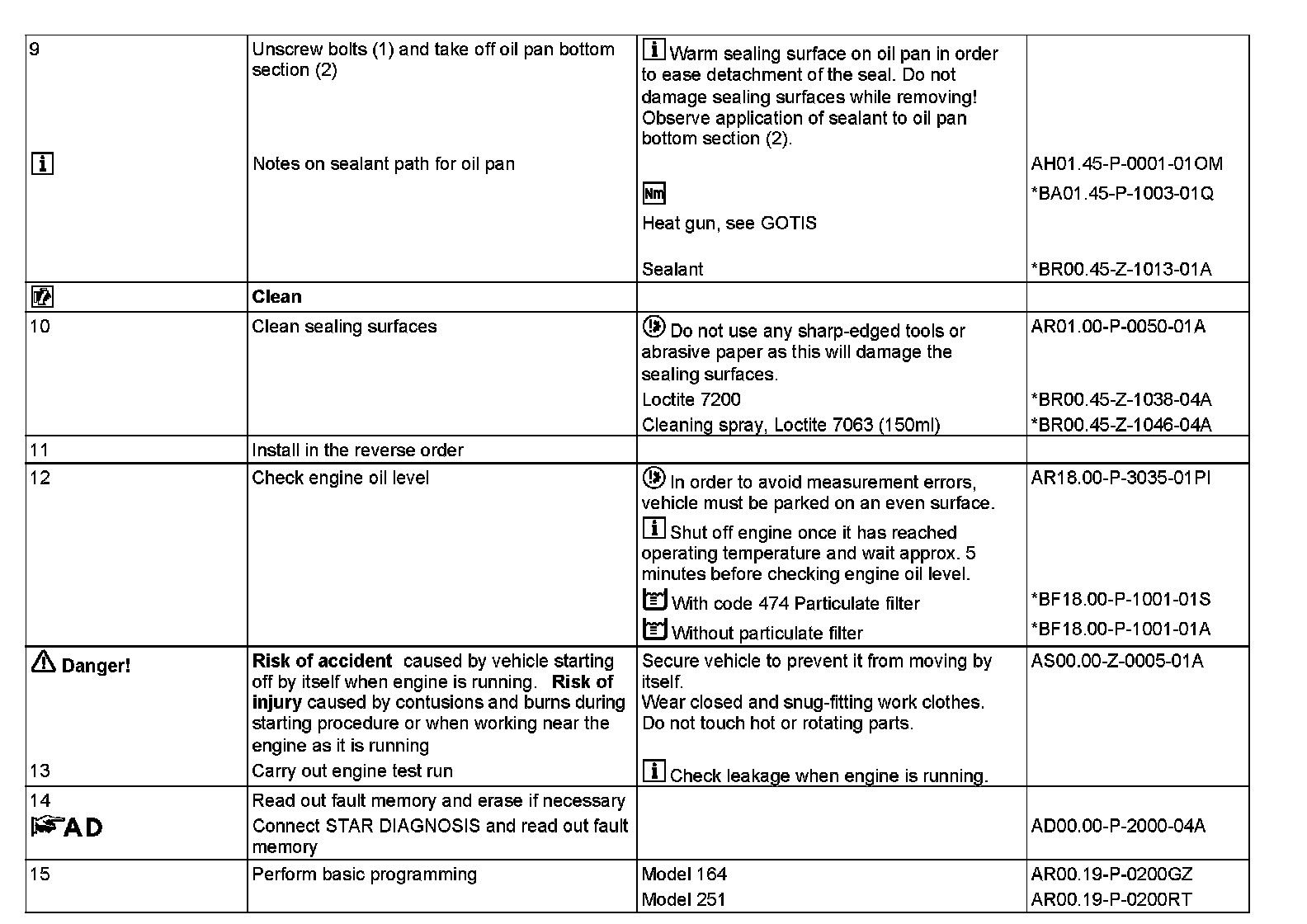

Steps 1-8:




Steps 9-15:

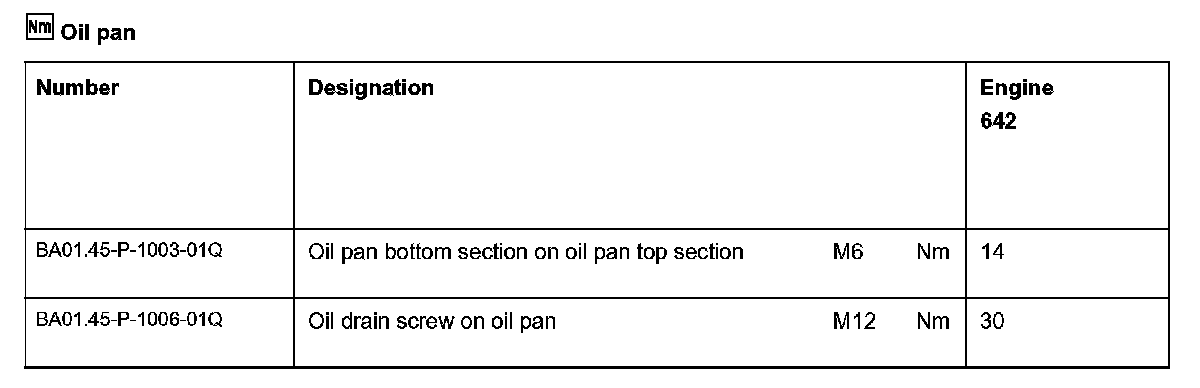

Oil pan:

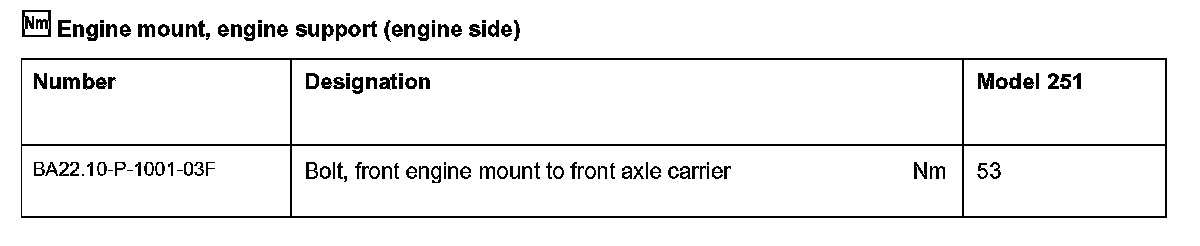

Engine mount, engine support (engine side):

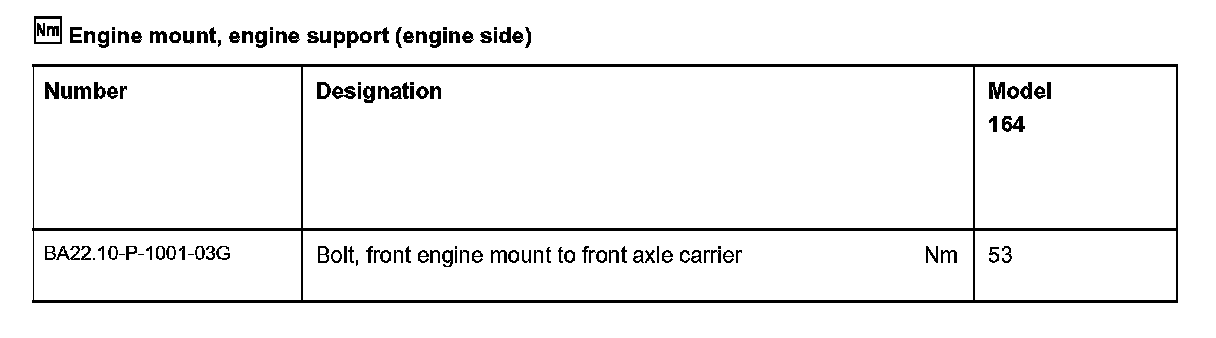

Engine mount, engine support (engine side):

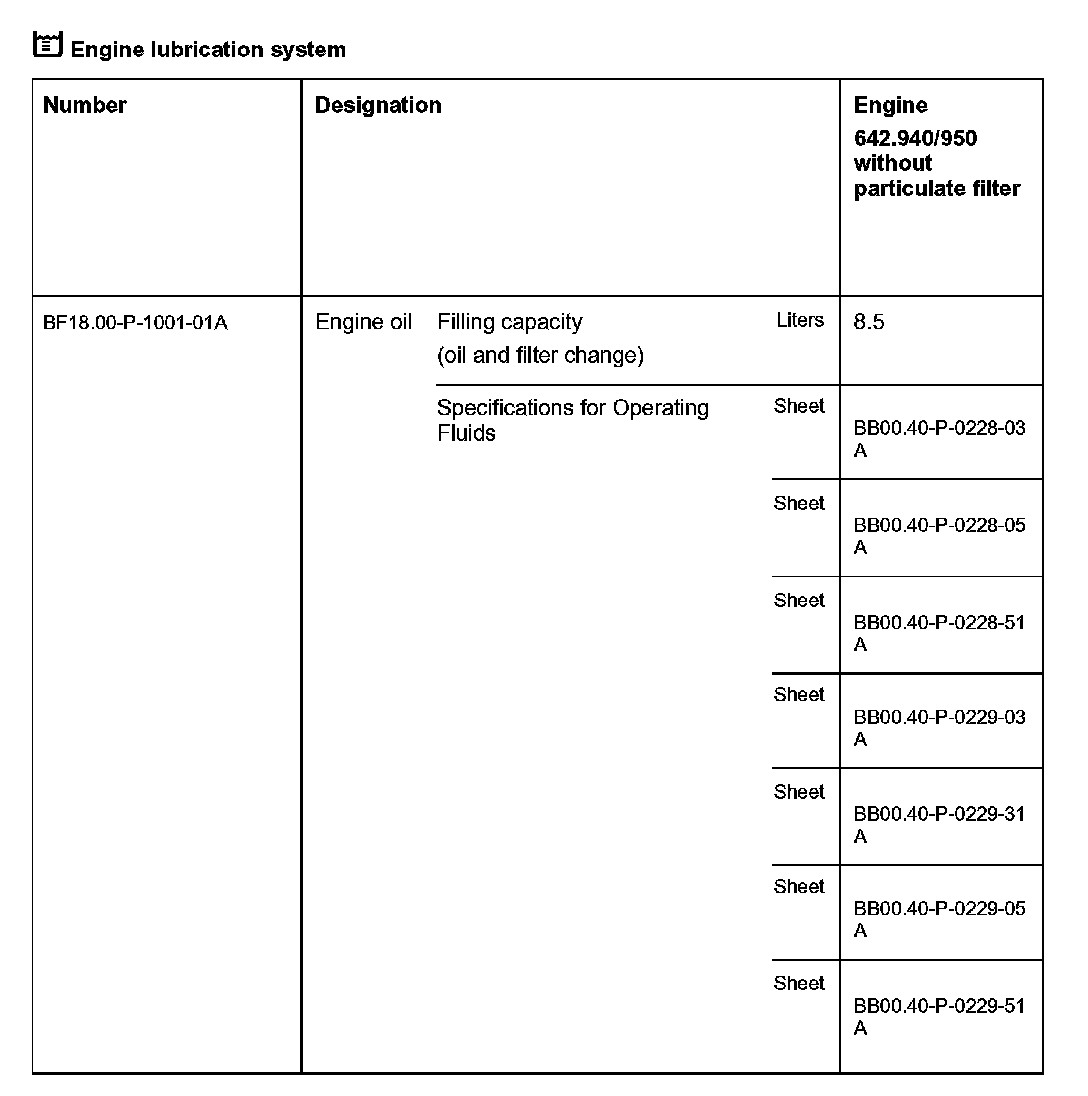

Engine lubrication system:

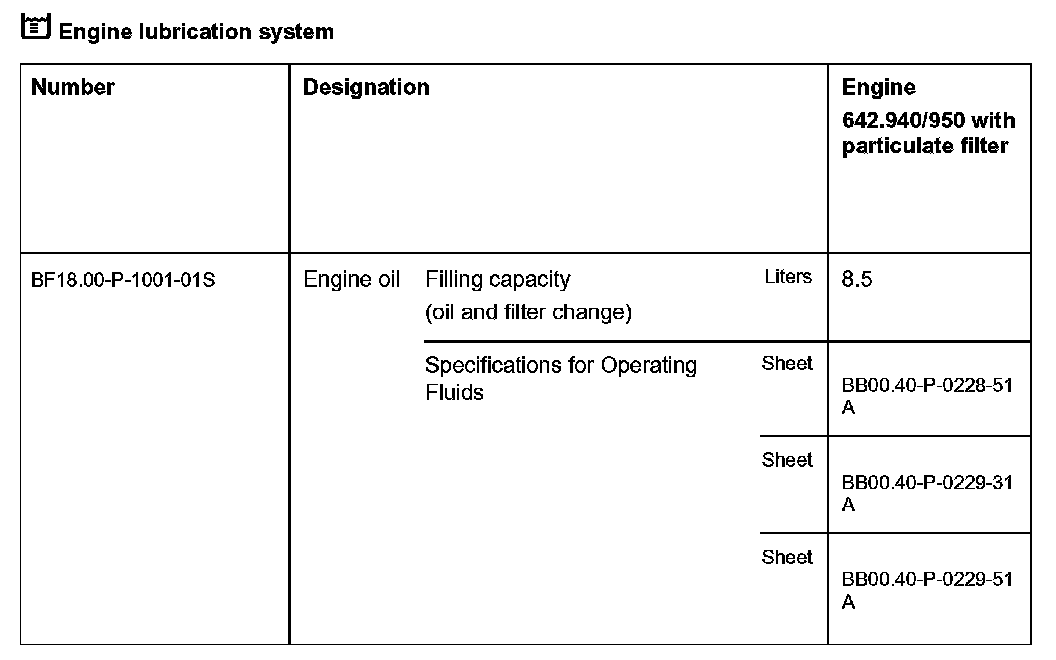

Engine lubrication system:

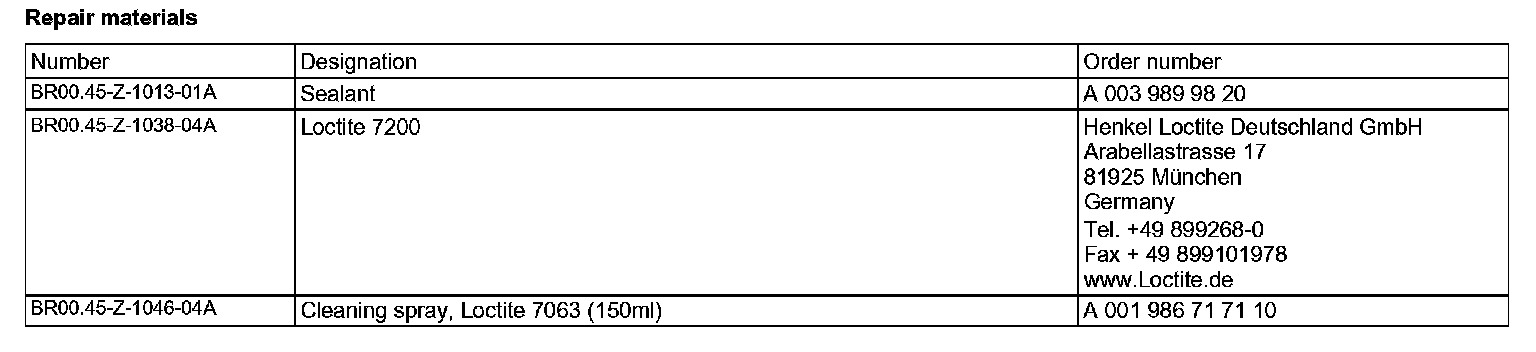

Repair materials:
