Home >> Mercedes Benz Truck >> 2007 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Piston >> Service and Repair

Piston: Service and Repair



AR03.10-P-7021GZB Remove/install piston

Component Identification:




Steps 1-8:

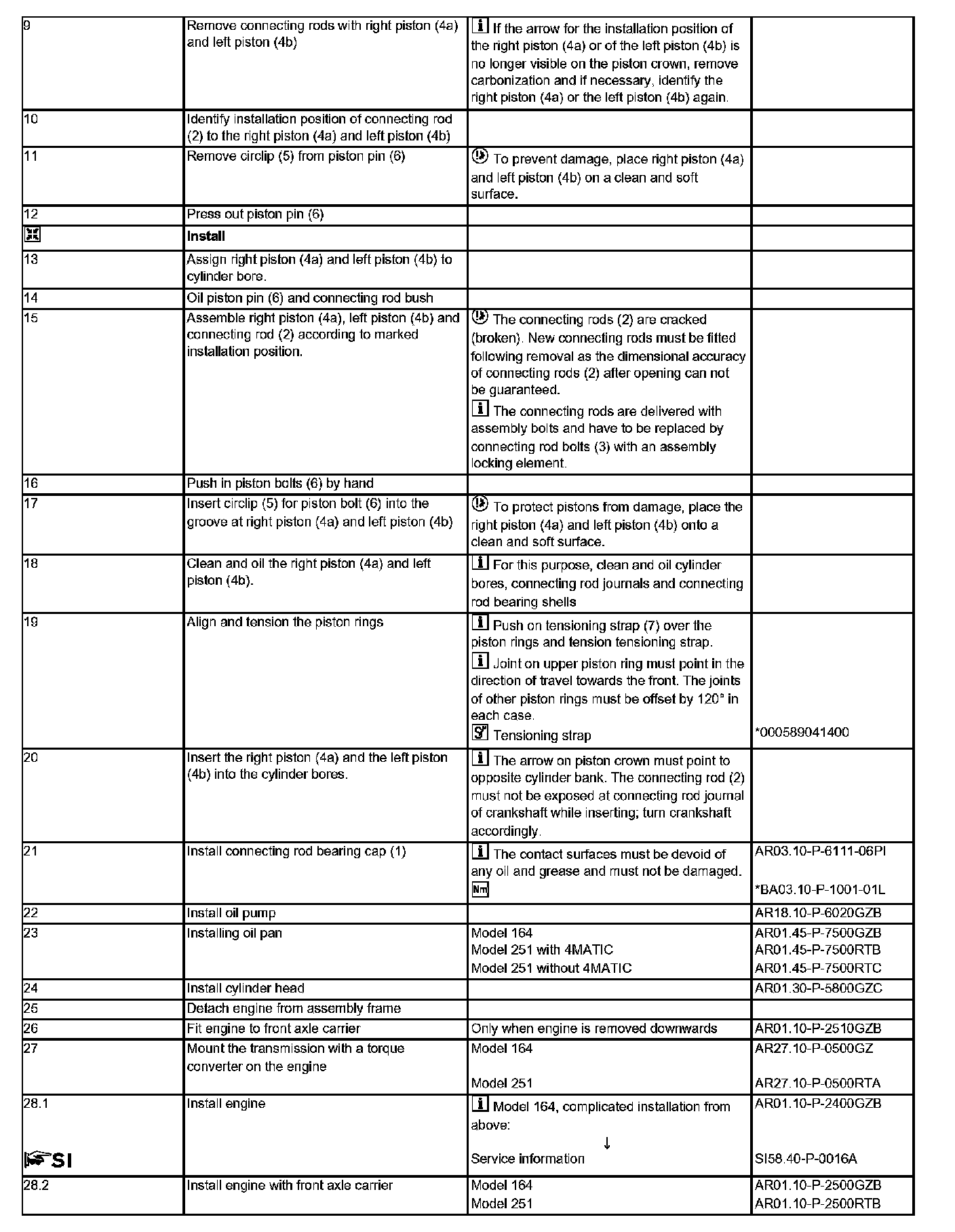

Steps 9-28.2:




Step 29:




Connecting rod:




Special Tools:
