Function Diagrams

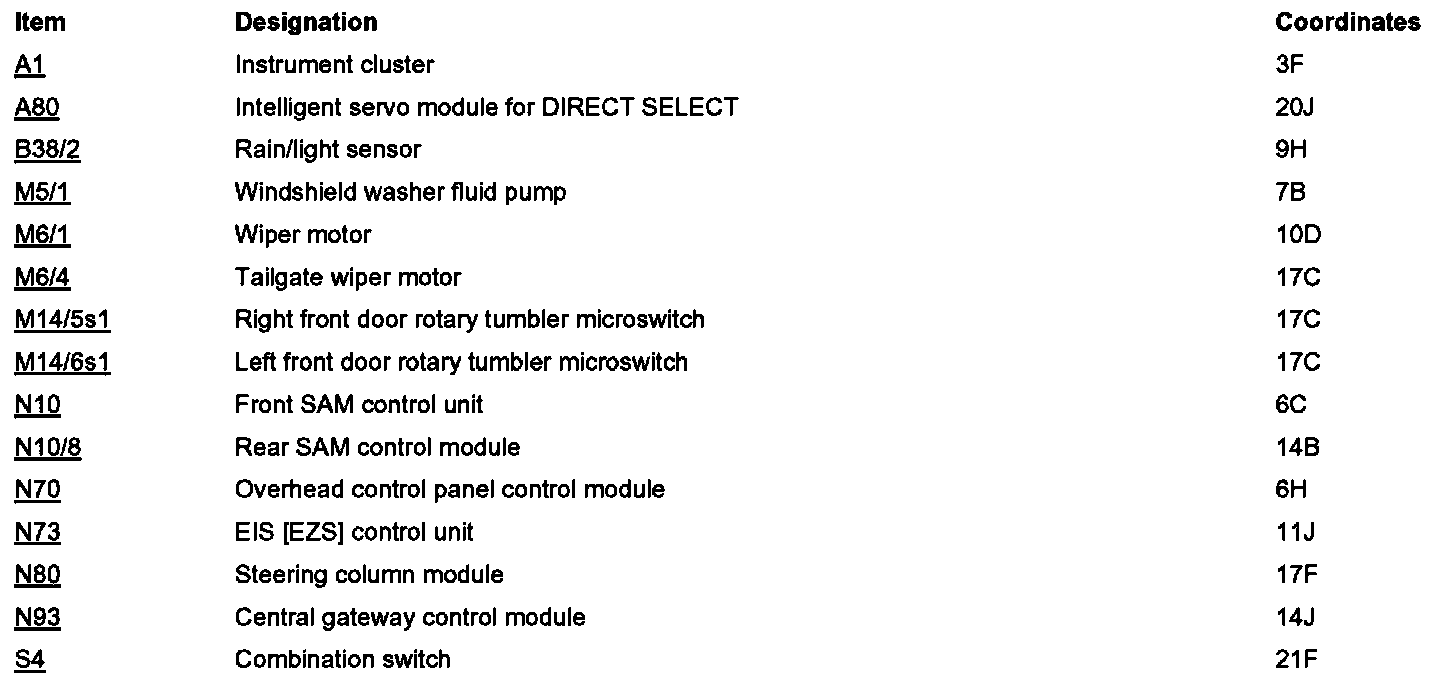

PE82.30-U-2050MAA Electrical System Function Diagram For Windshield Wiper















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
