Electrical Diagrams

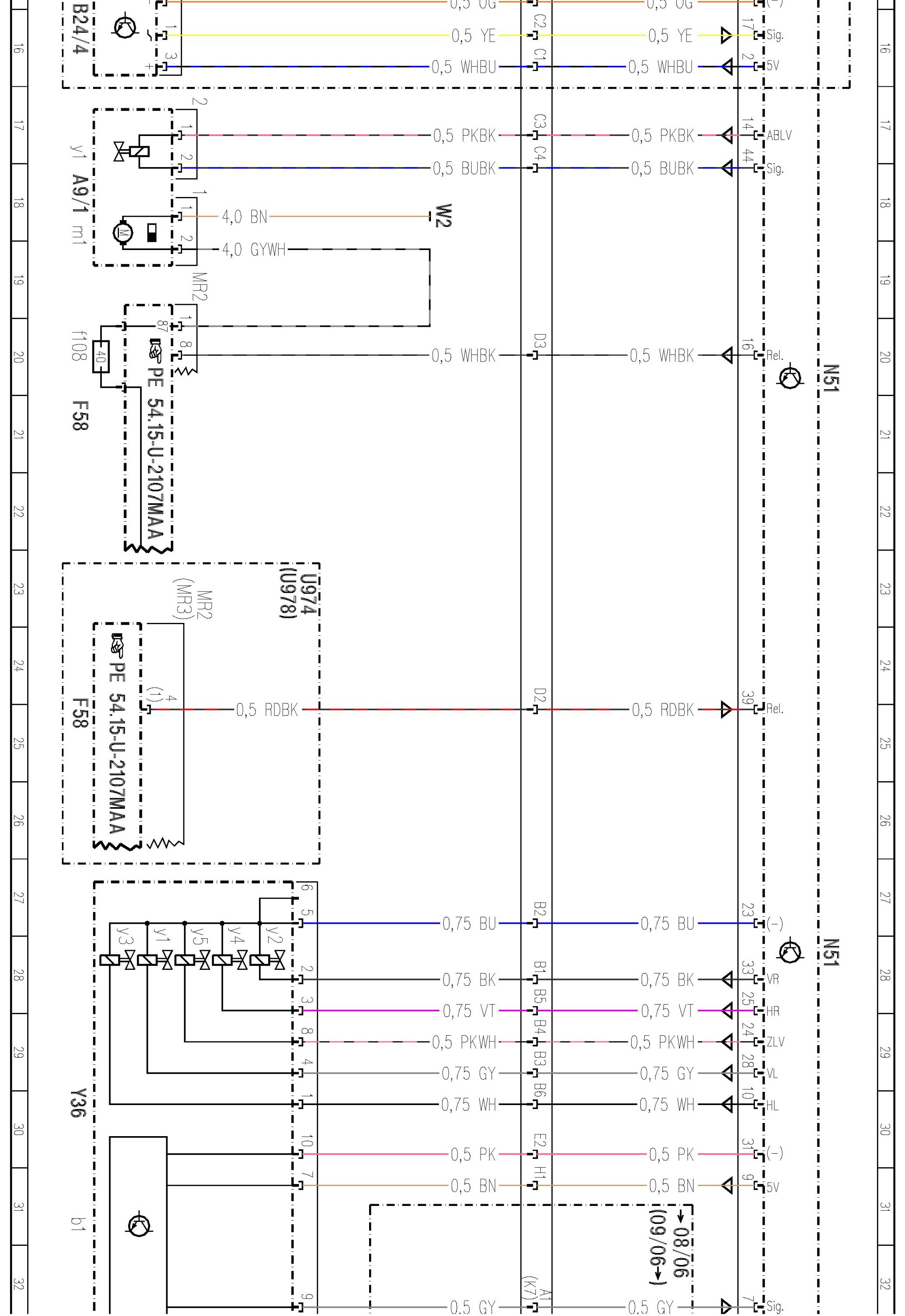

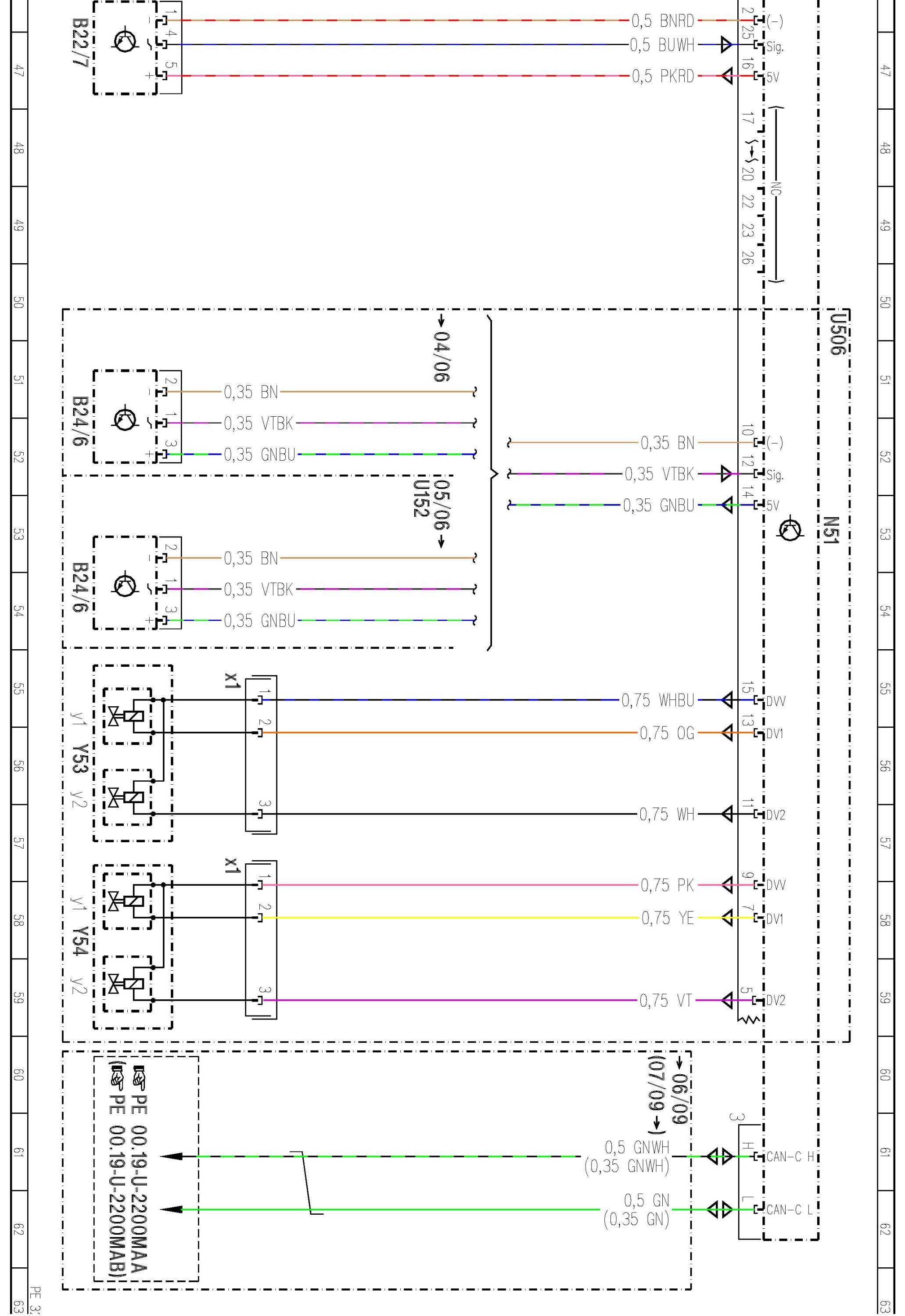

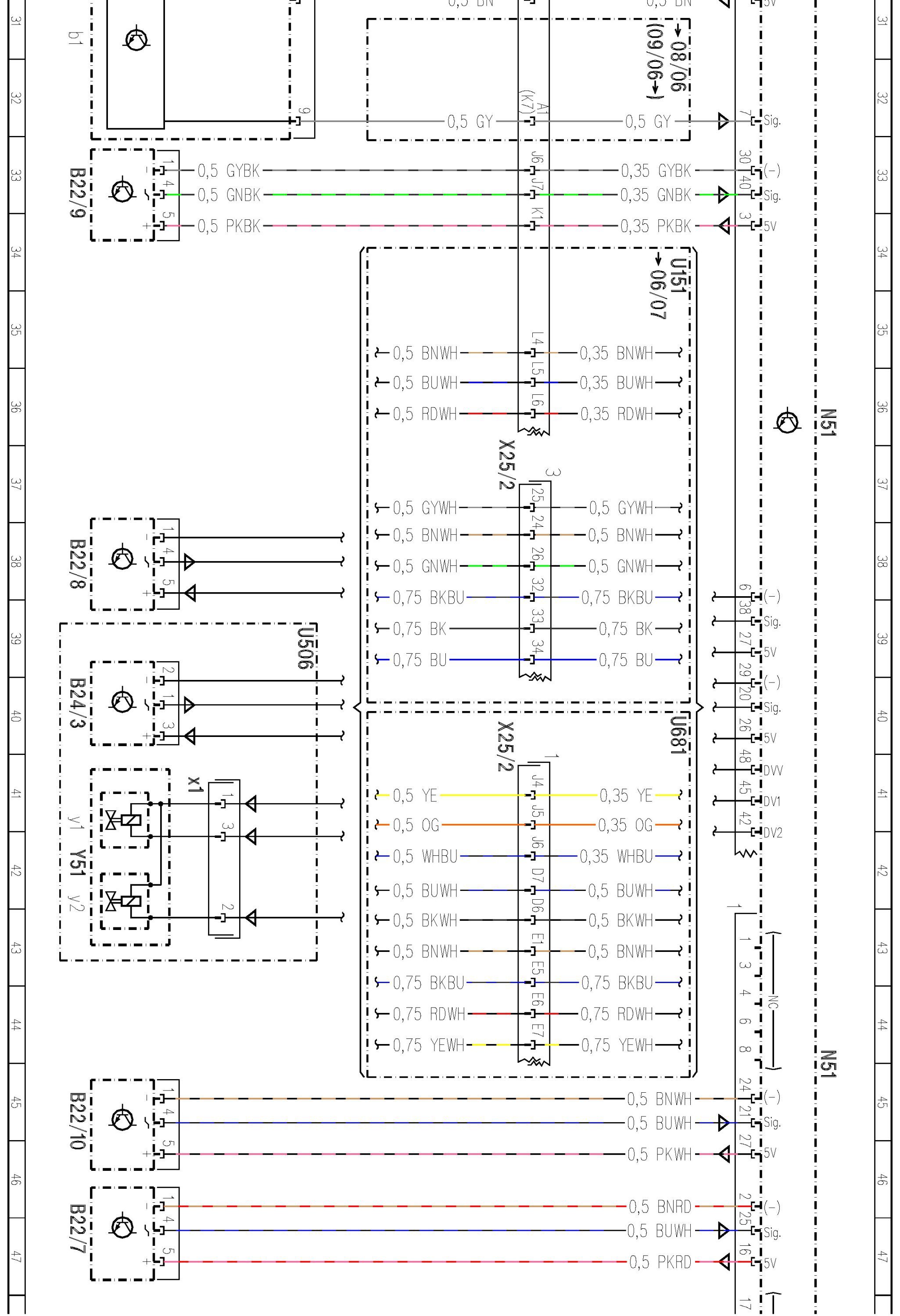

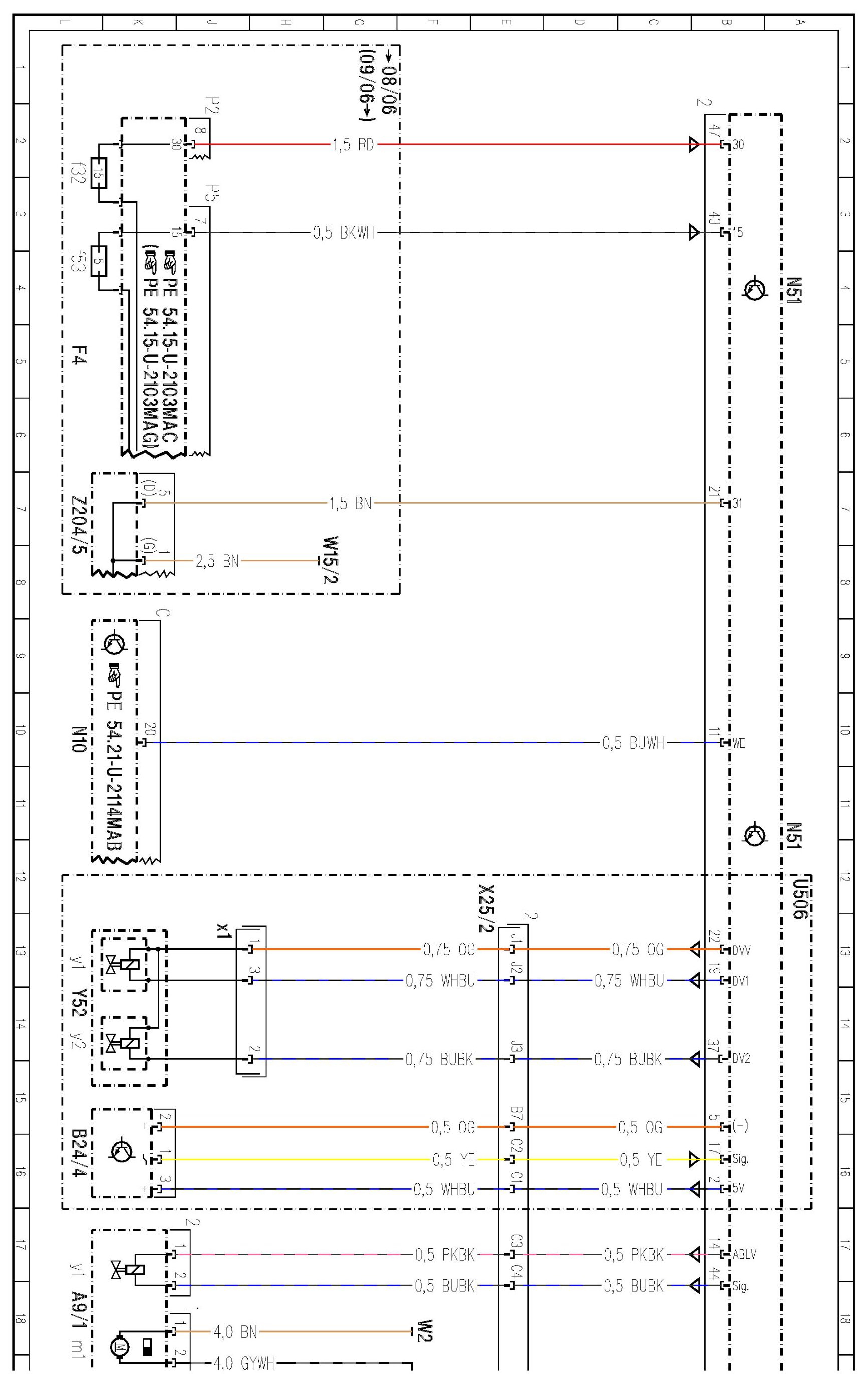

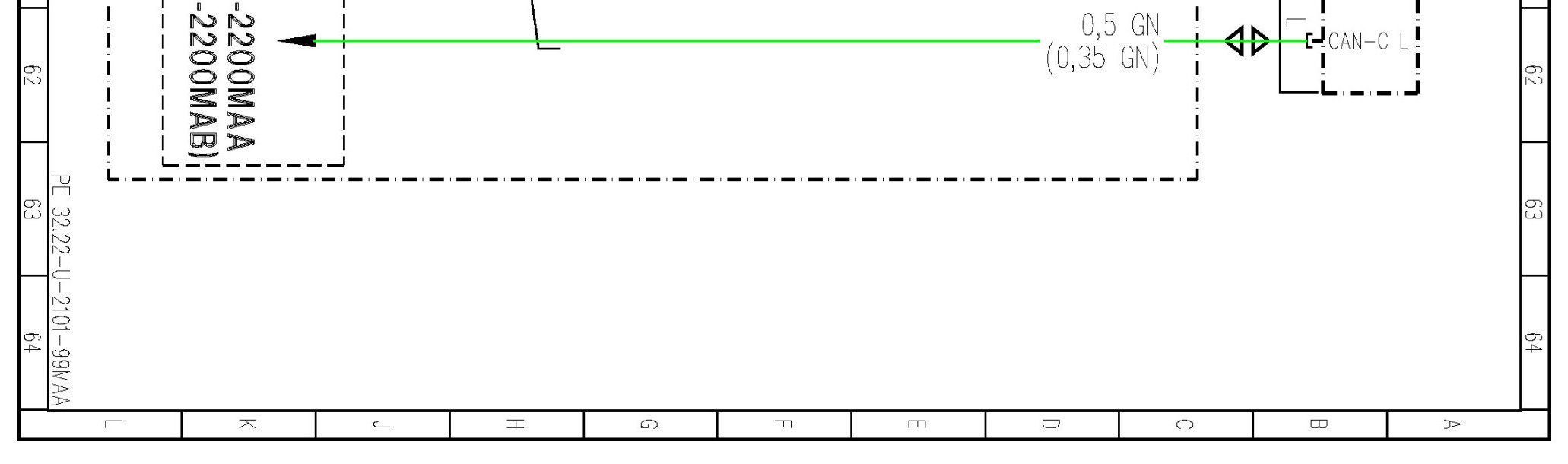

PE32.22-U-2101MAA AIRmatic Control Module
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)
- control unit N51






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
