System Diagram

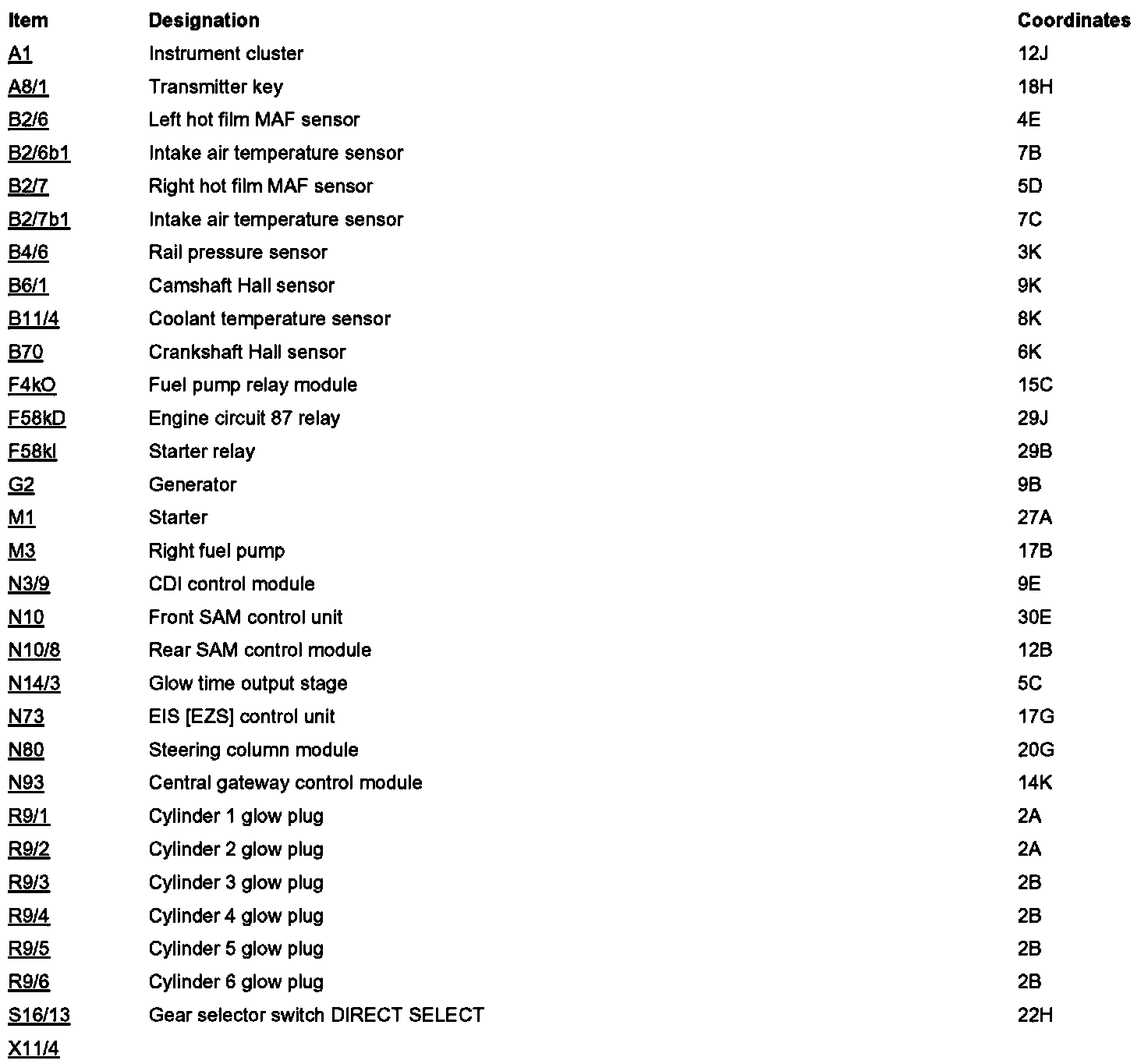

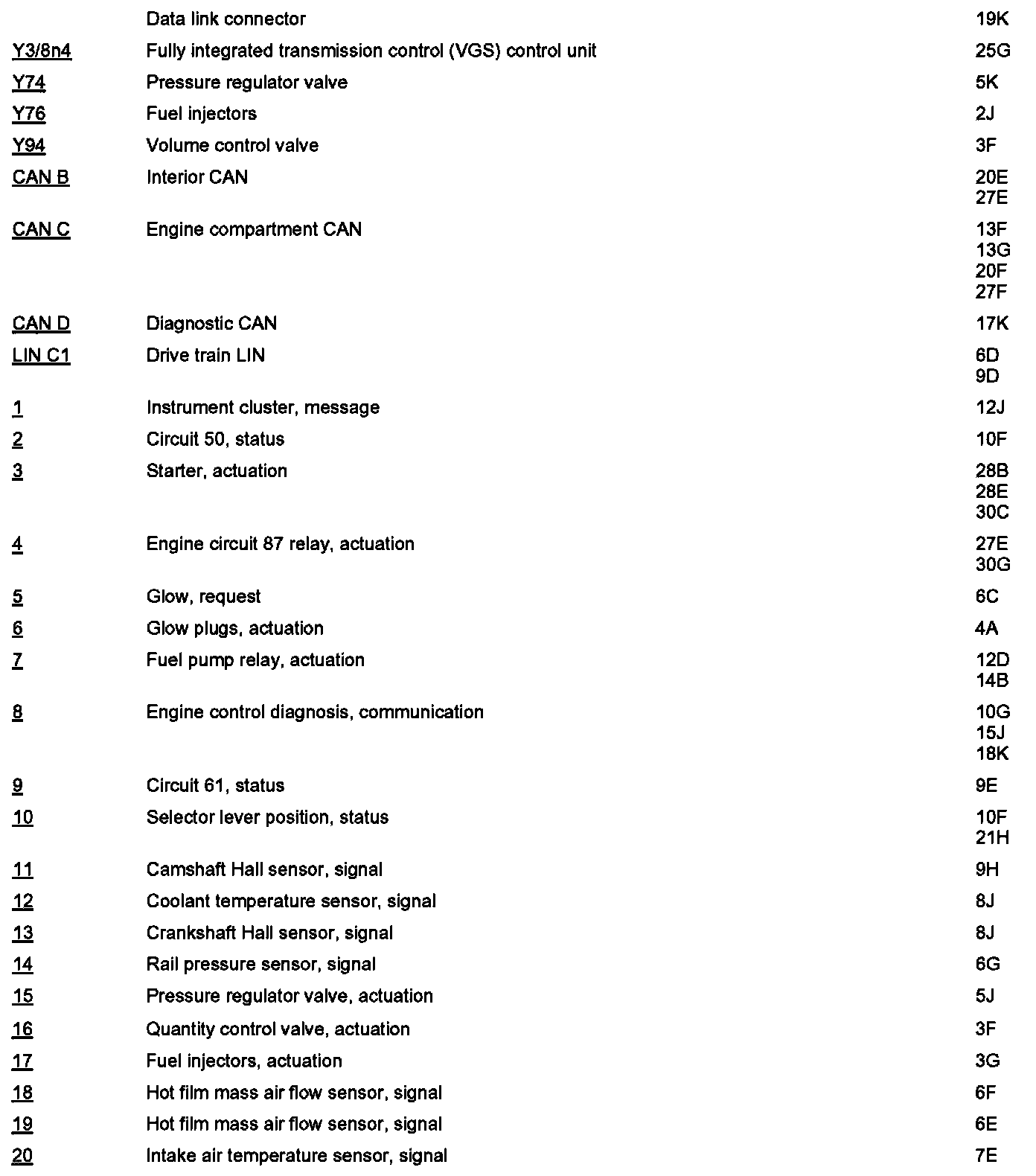

PE15.30-U-2052MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Starting/Starter Control



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
