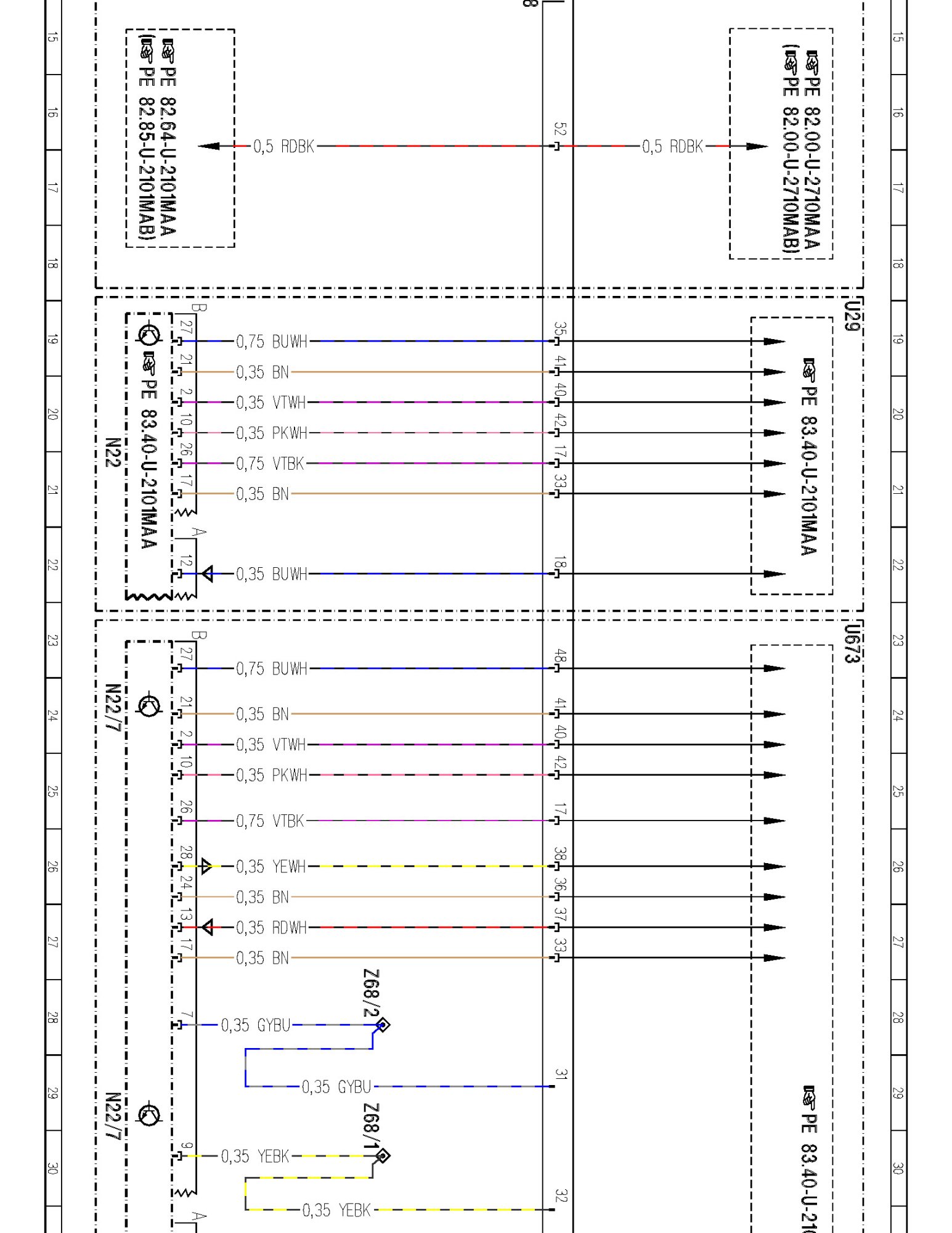

PE54.18-U-2300MAP Connector Separation Points



PE54.18-U-2300MAP Connector Separation Points
- X18, sheet 2
- X18/7, sheet 2



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
