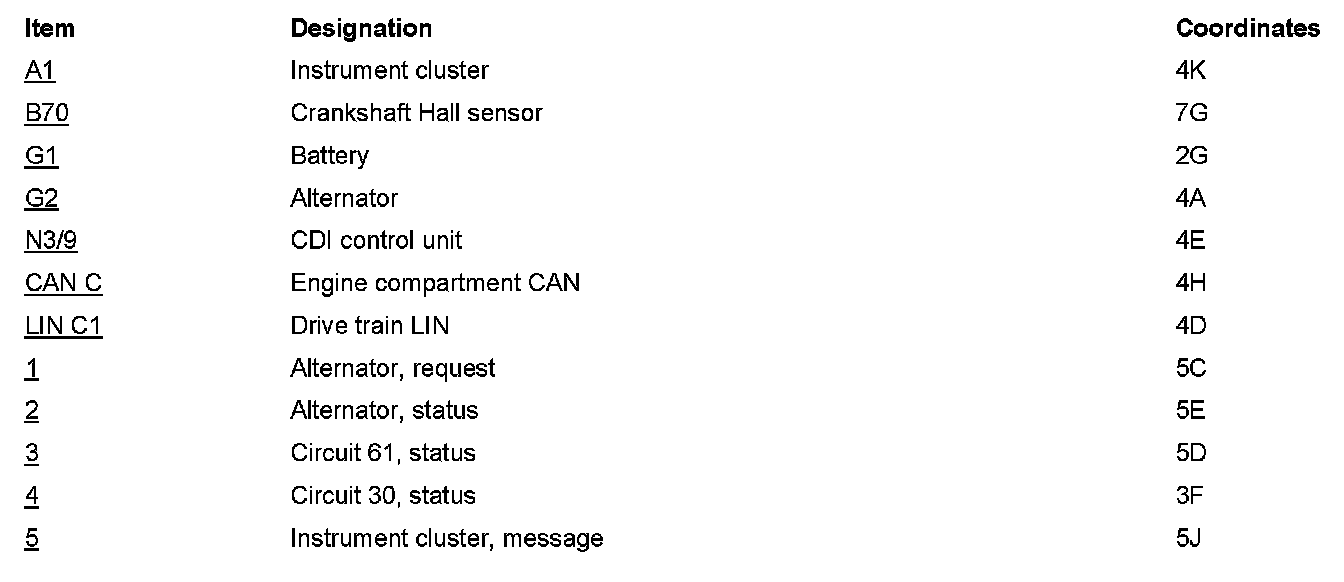

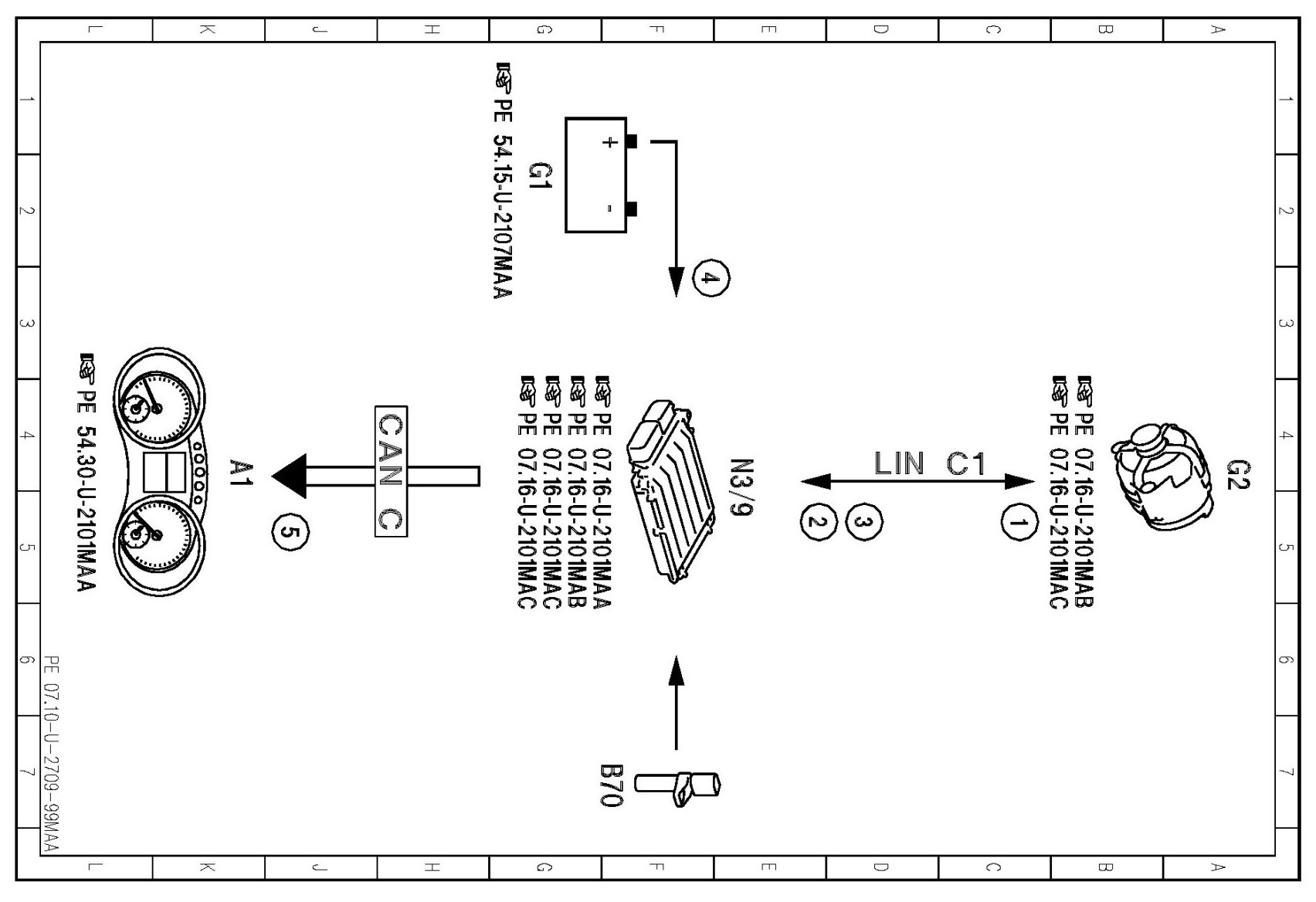

PE07.10-U-2709MAA Electrical Function Schematic, Alternator Interface

PE07.10-U-2709MAA Electrical Function Schematic, Alternator Interface











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
