PE82.10-P-2051MAD Electrical Function Schematic for Exterior Lights

Electrical Function Schematic for Exterior Lights PE82.10-P-2051MAD
- standing light, parking light, ECE
- up to model year 2008

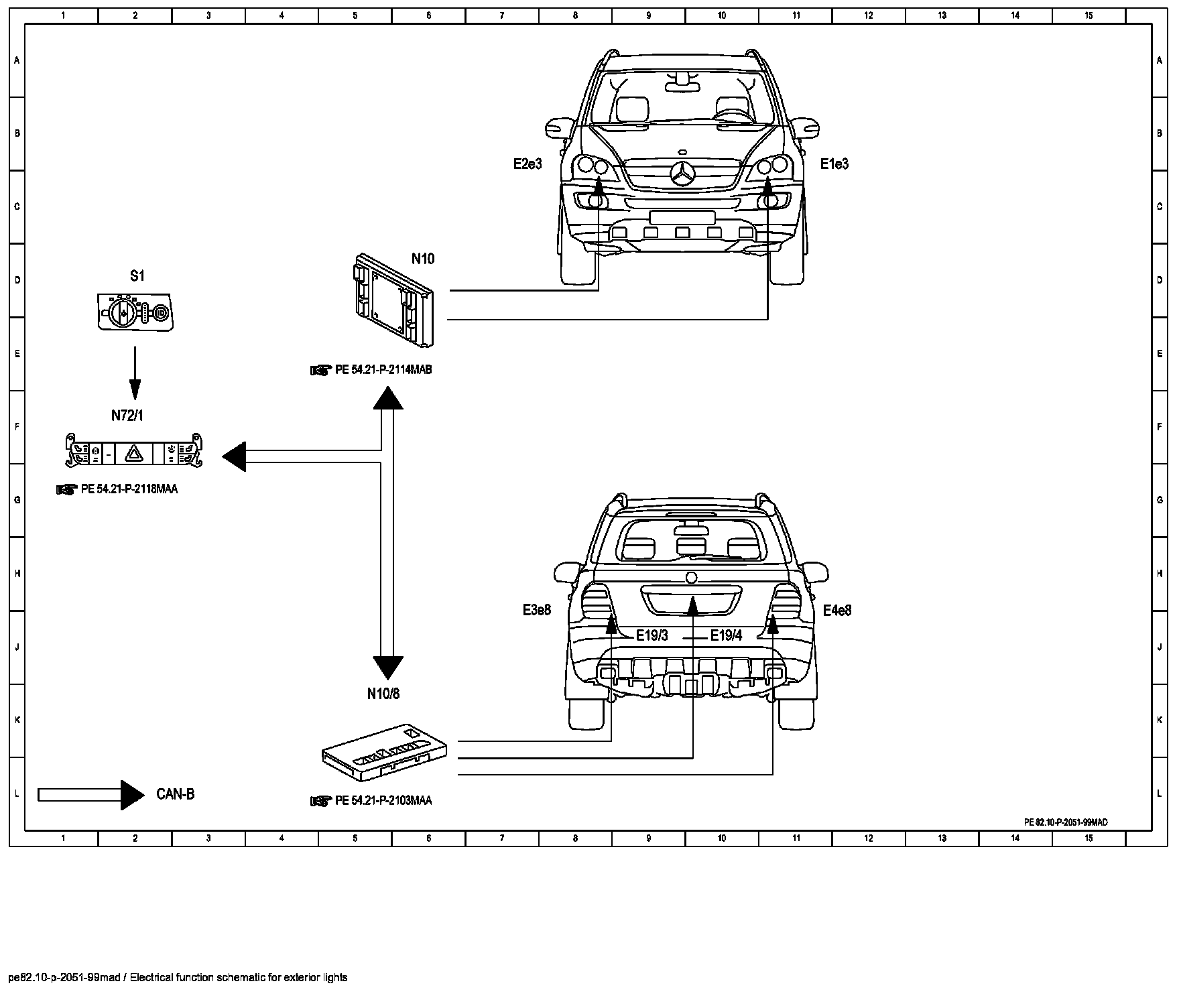

Function Diagram:

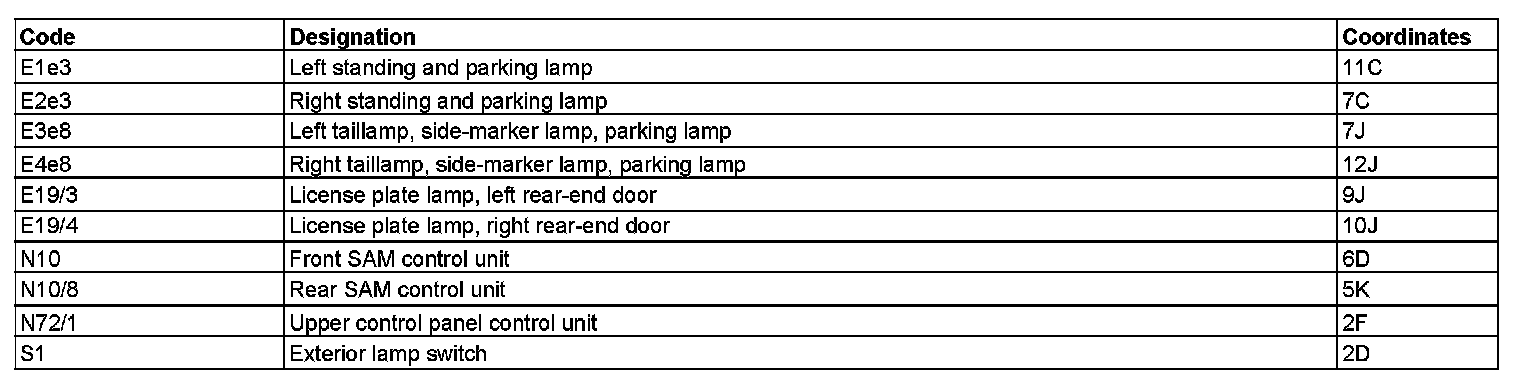

Component Description/Coordinates, E1e3 To S1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
