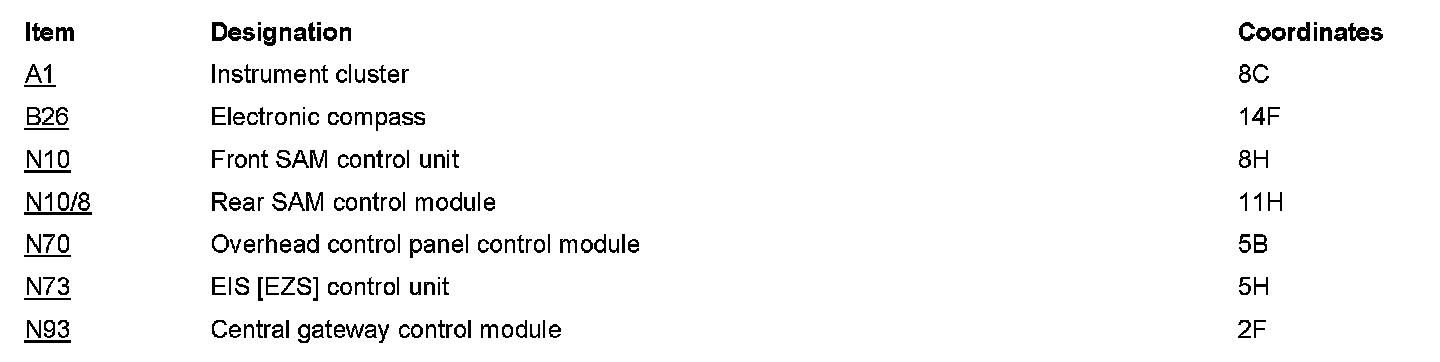

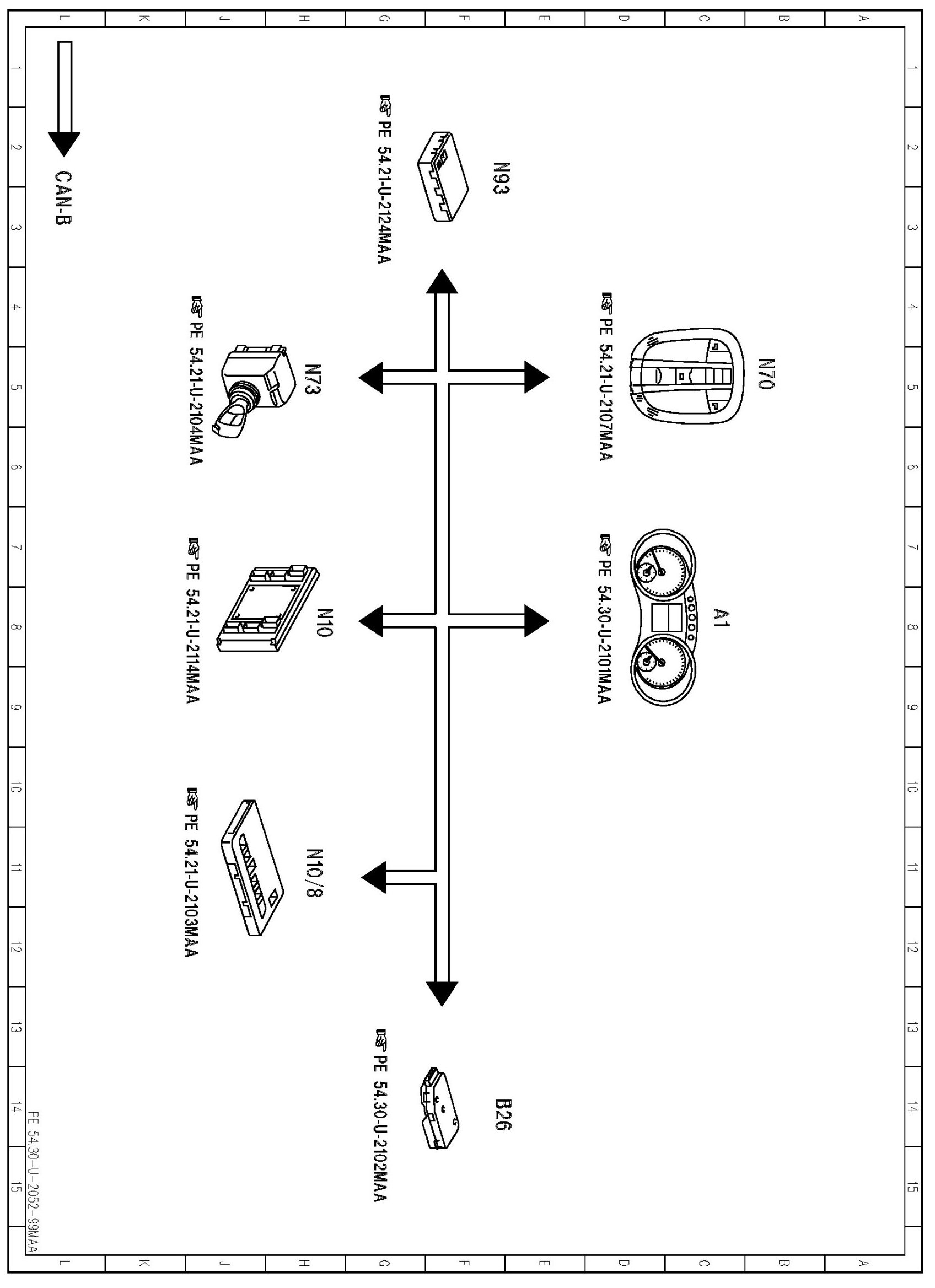

PE54.30-U-2052MAA Electrical Function Diagram For Compass Module



PE54.30-U-2052MAA Electrical Function Diagram For Compass Module
