PE80.50-P-2050MAA Electrical Function Schematic for Anti-Theft Alarm System (ATA [EDW])

Electrical Function Schematic for Anti-Theft Alarm System (ATA [EDW]) PE80.50-P-2050MAA
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- with CODE (882) Interior monitoring (with ATA [EDW] only)
- except CODE (494) USA version
- up to model year 2008

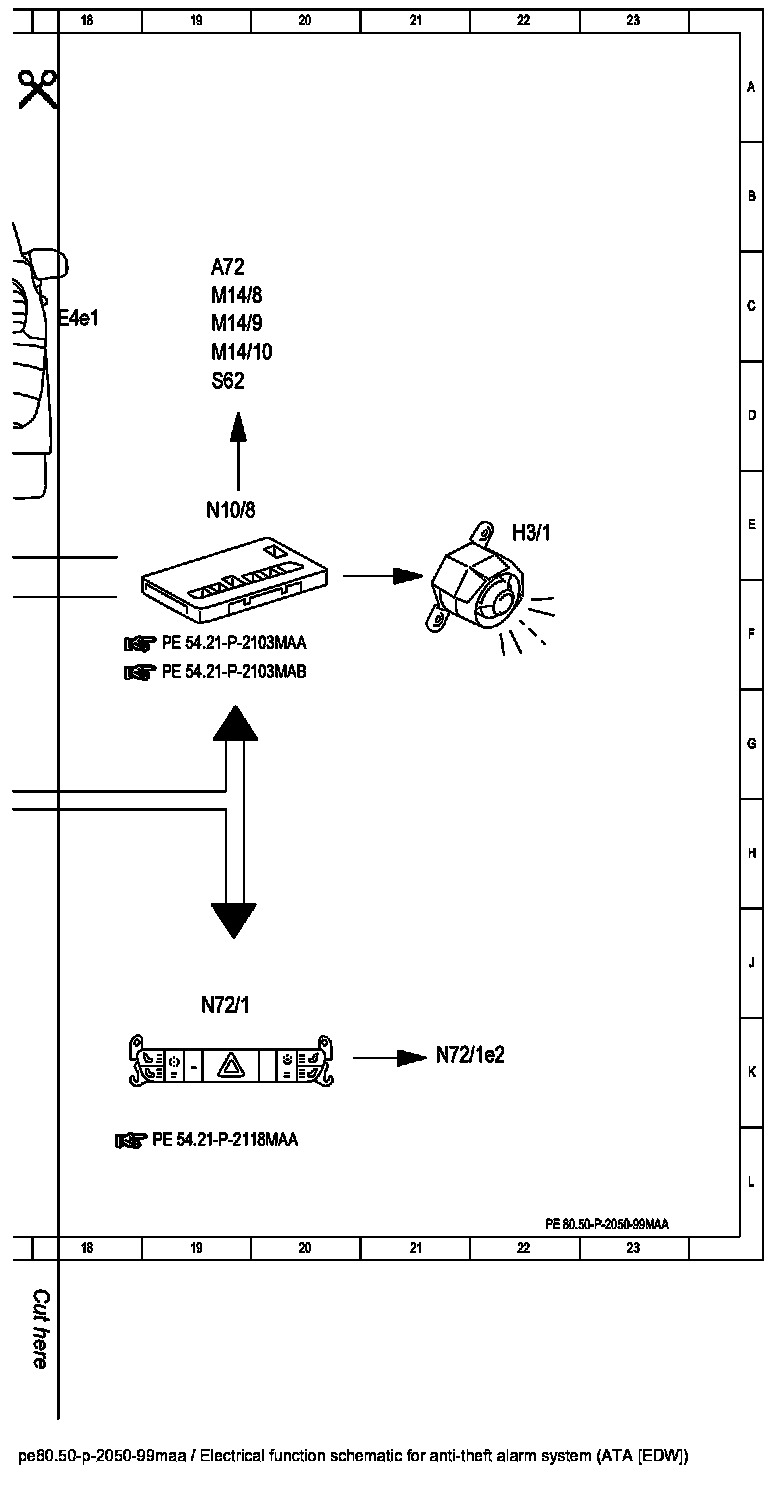

Function Diagram (Part 1):

Function Diagram (Part 2):

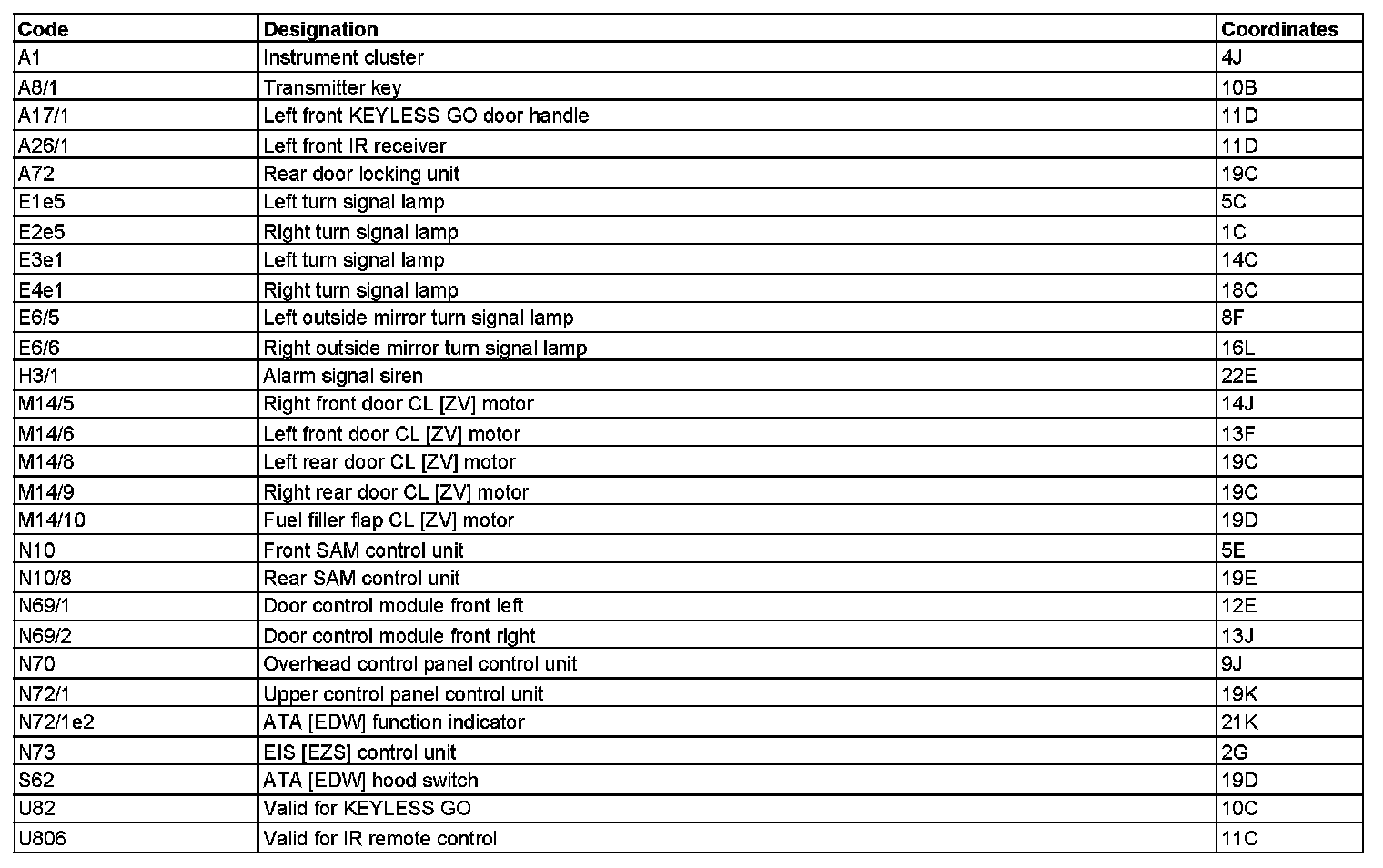

Component Description/Coordinates, A1 To U806:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
