Electrical Diagrams

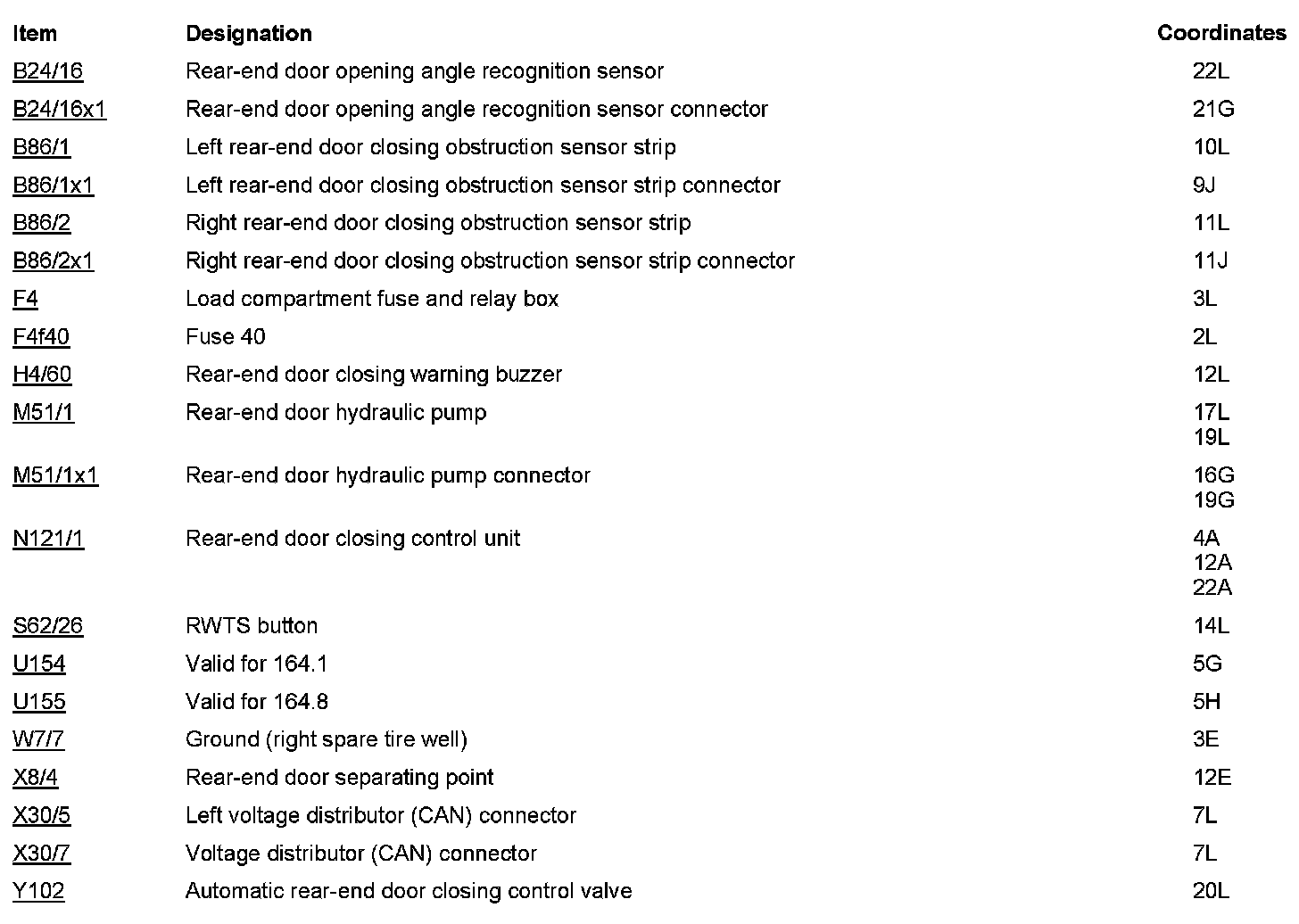

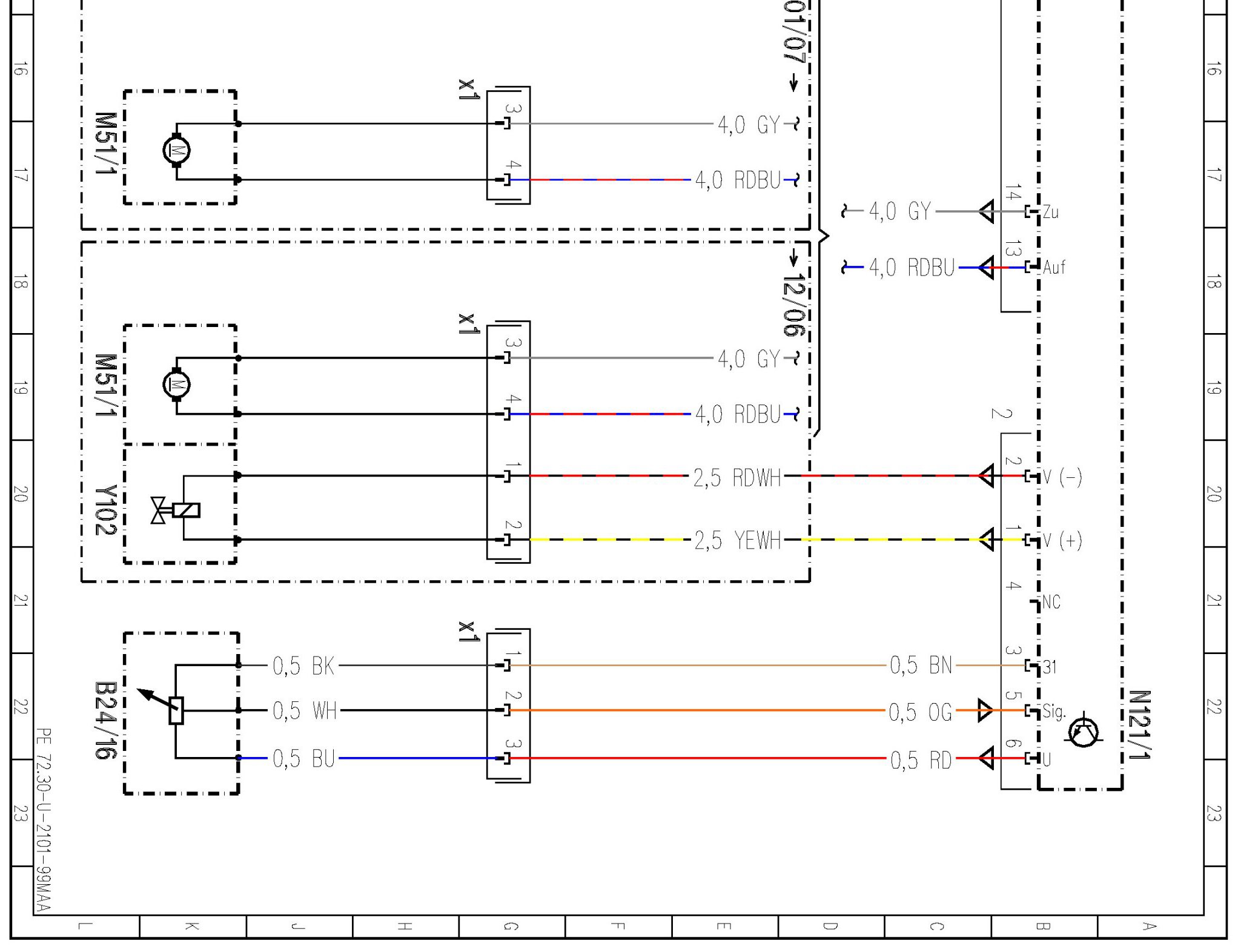

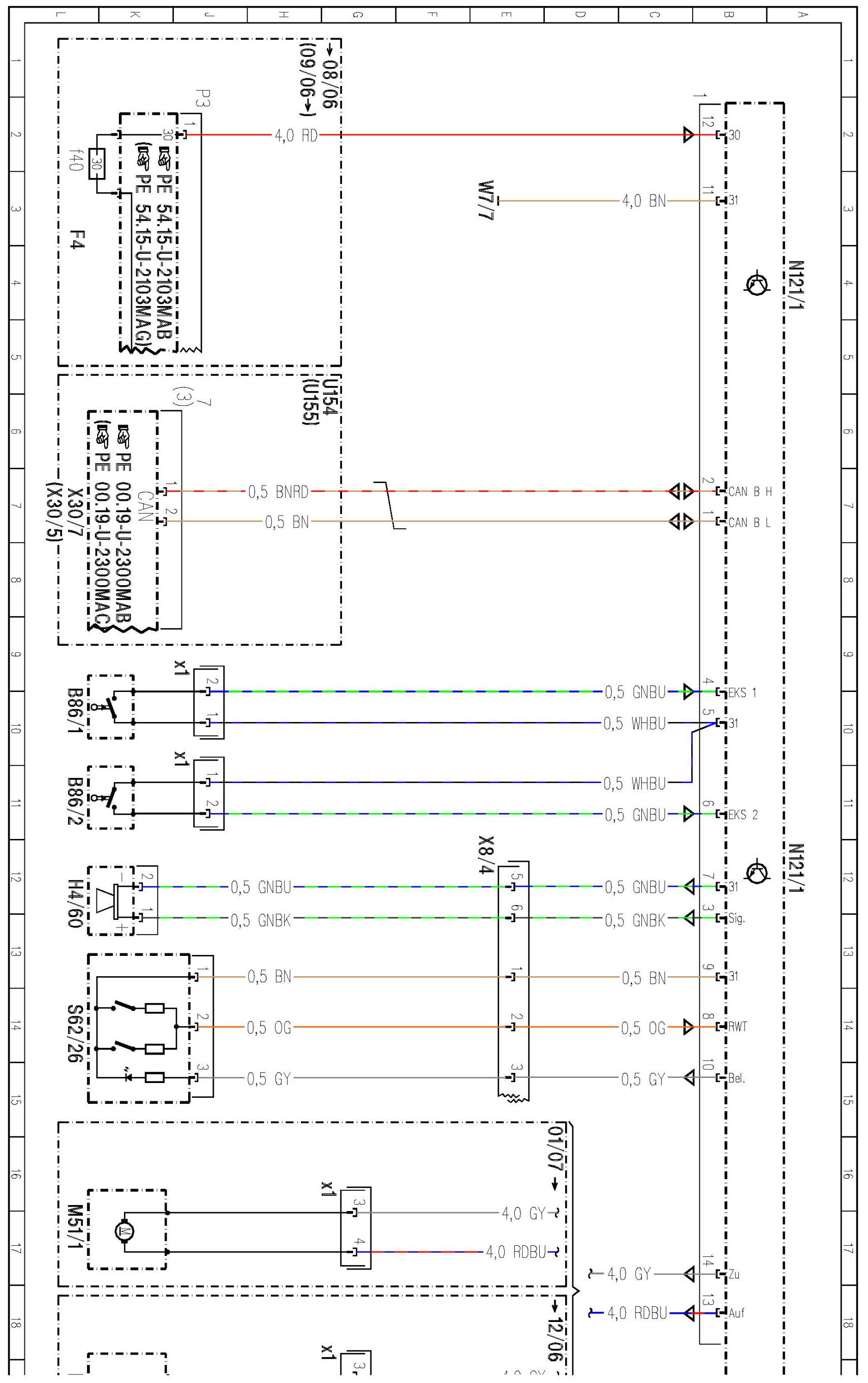

PE72.30-U-2101MAA Remote Trunk Locking Control Module
- with CODE (890) Automatic rear-end door
- control unit N121/1














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
