AR40.30-P-0410GZ Measuring rear axle carrier (when removed)

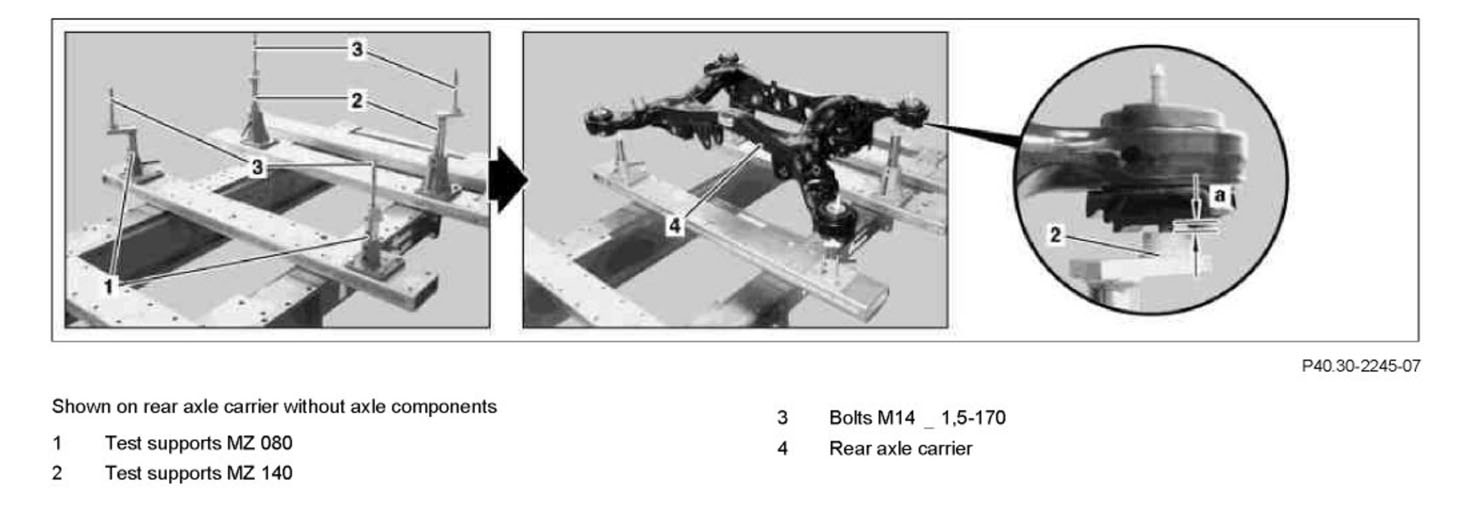

Component Identification:

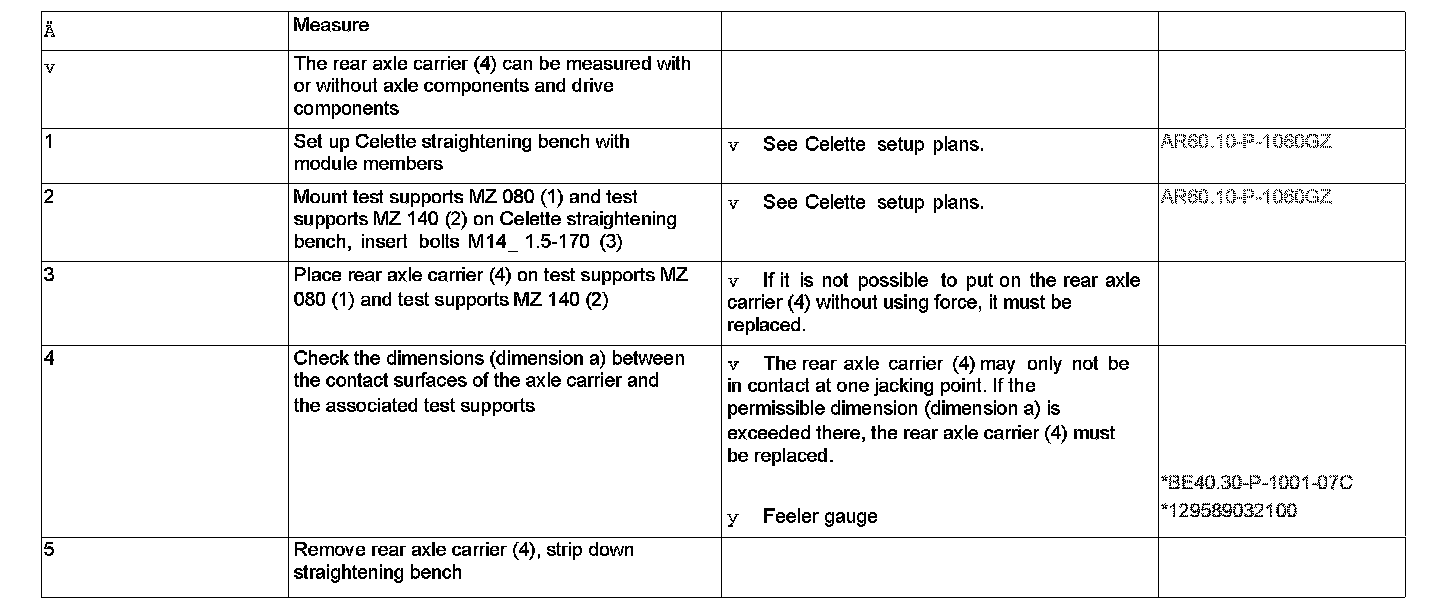

Steps 1-5:
Test values for rear axle carrier:

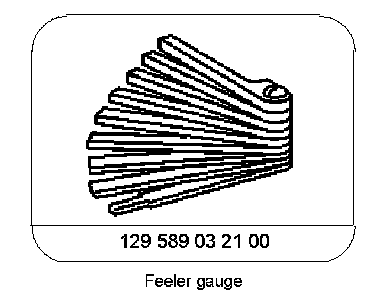

Special Tools:
