AR88.80-P-0003GZ Remove/Install Covers on Rear-End Door Frame Seal



AR88.80-P-0003GZ Remove/Install Covers on Rear-End Door Frame Seal
- Right rear-end door cover

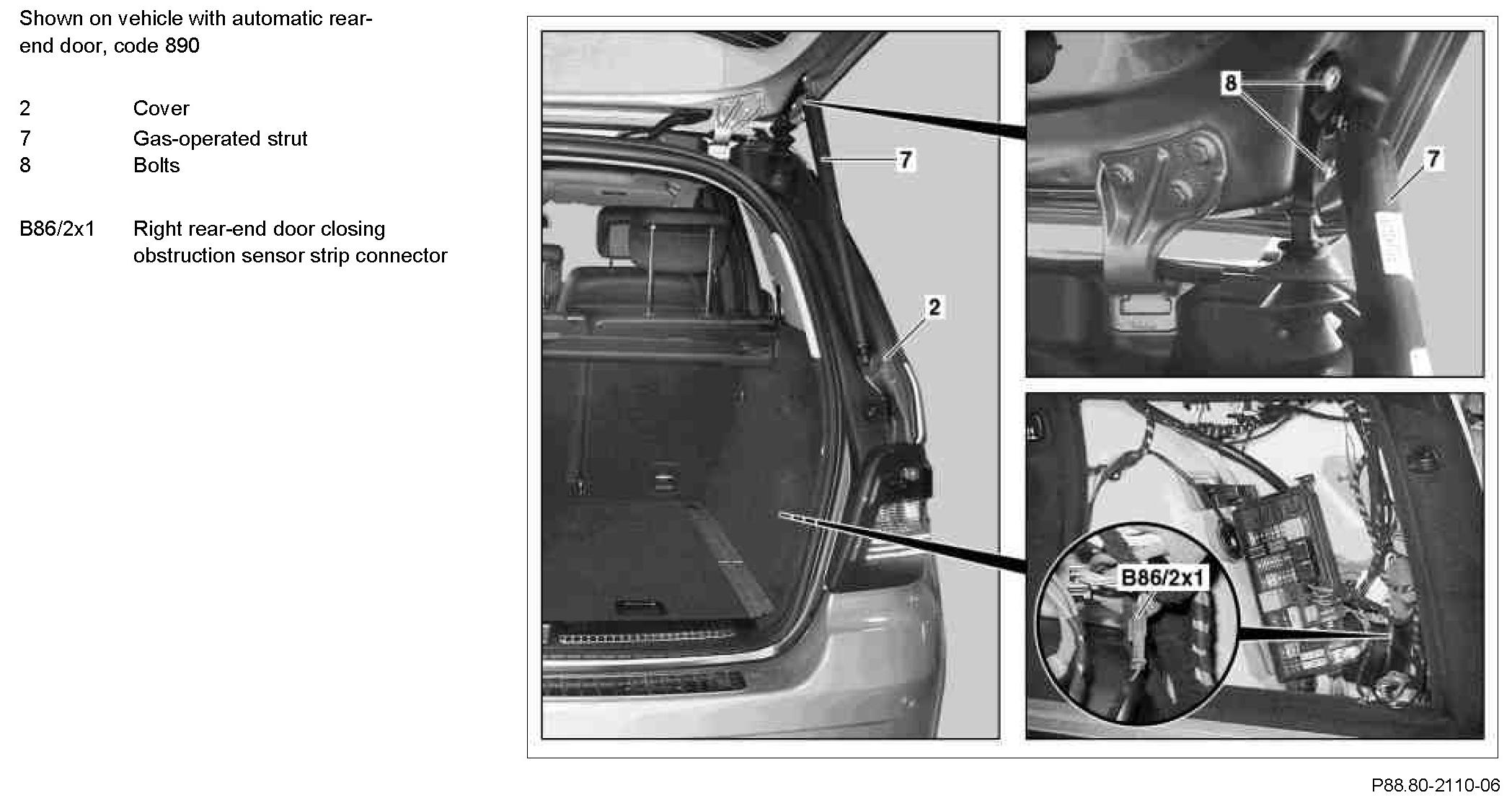

Component Identification:

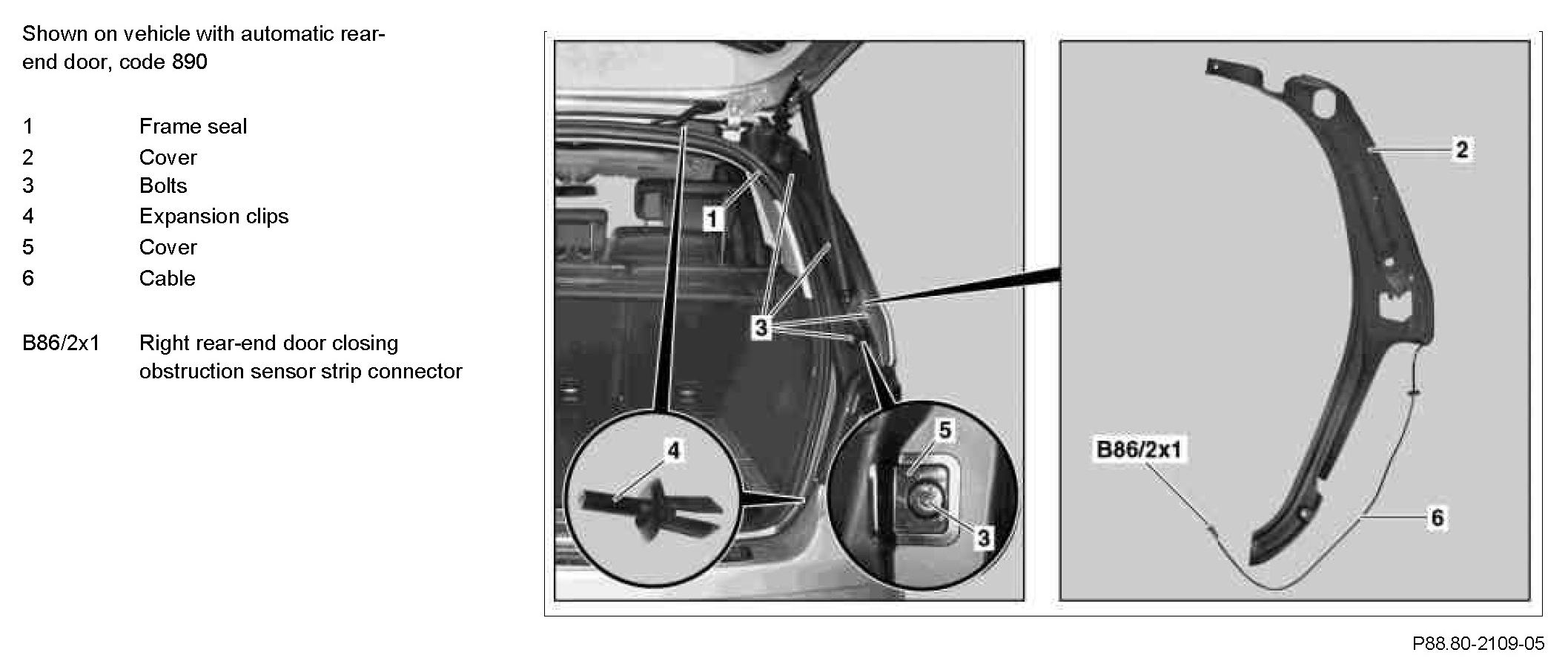

Component Identification:




Modification Notes:

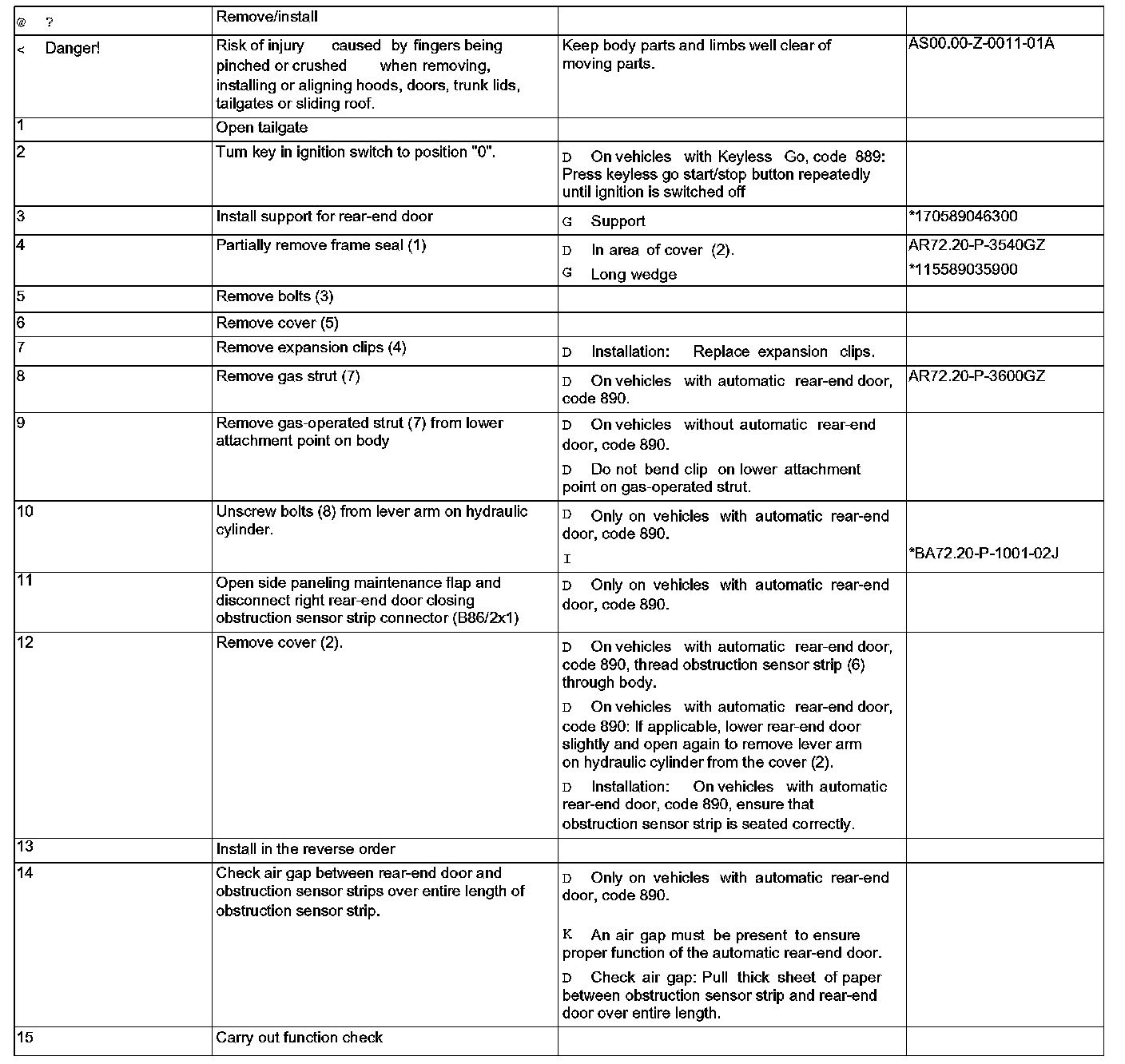

Steps 1 - 15:

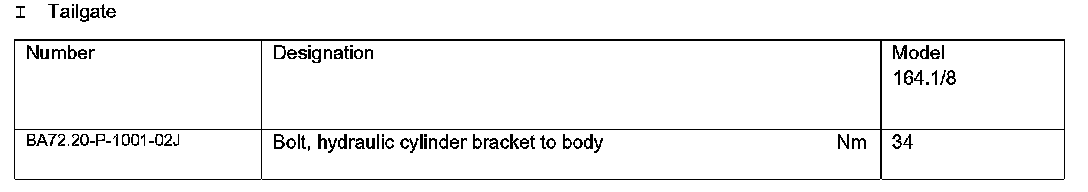

Tailgate:

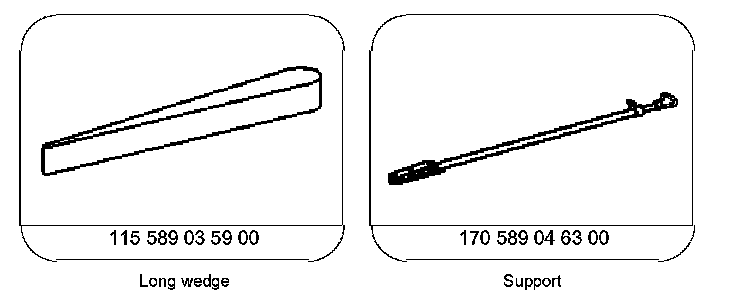

Special Tools:
