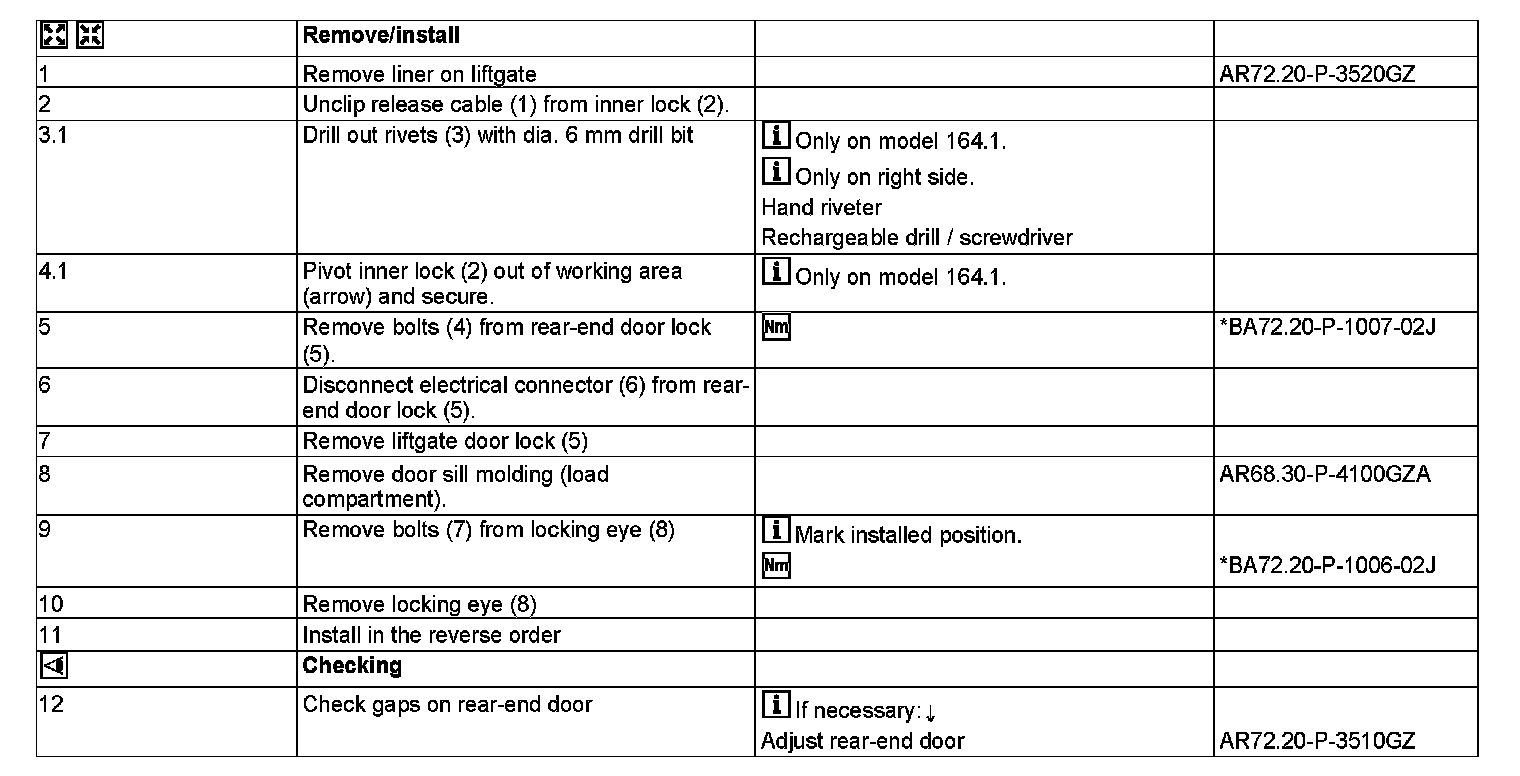

AR72.20-P-2550GZ Remove/Install Liftgate Lock

AR72.20-P-2550GZ Remove/Install Liftgate Lock
MODEL 164

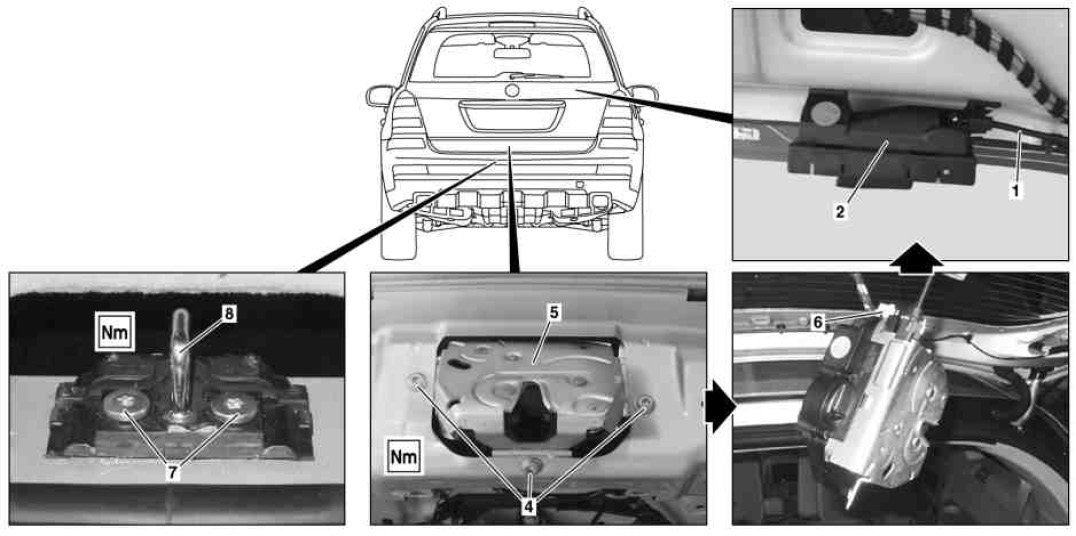

Shown on model 164.1

1 Release cable
2 Inner lock
3 Rivets
4 Bolts
5 Rear-end door lock
6 Electrical connector
7 Bolts
8 locking eye





Shown on model 164.8

1 Release cable
2 Inner lock
4 Bolts
5 Rear-end door lock
6 Electrical connector
7 Bolts
8 locking eye
