Trunk / Liftgate Hinge: Service and Repair



AR72.20-P-2560GZ Remove/Install Rear-end Door Hinge

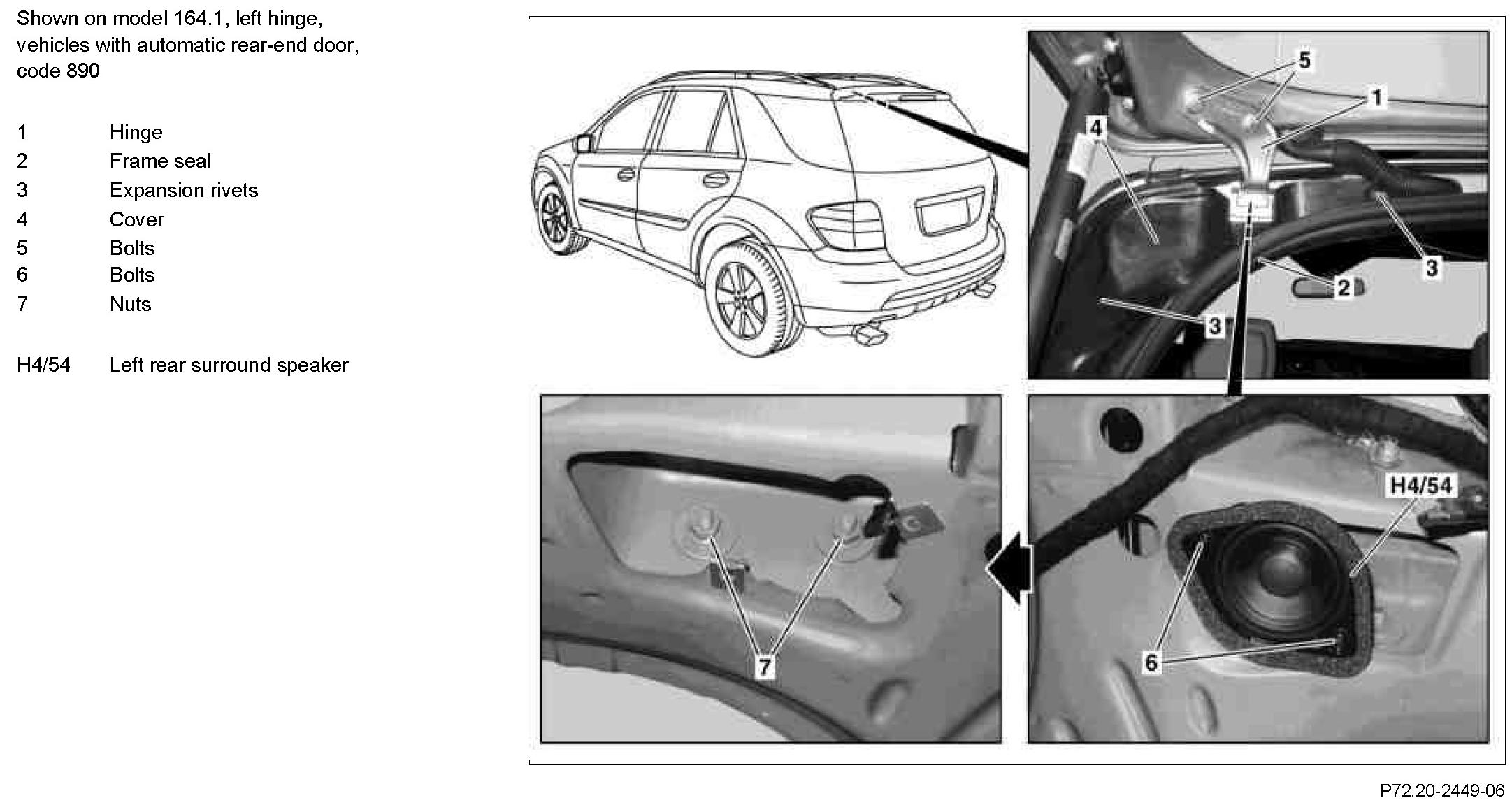

Component Identification:

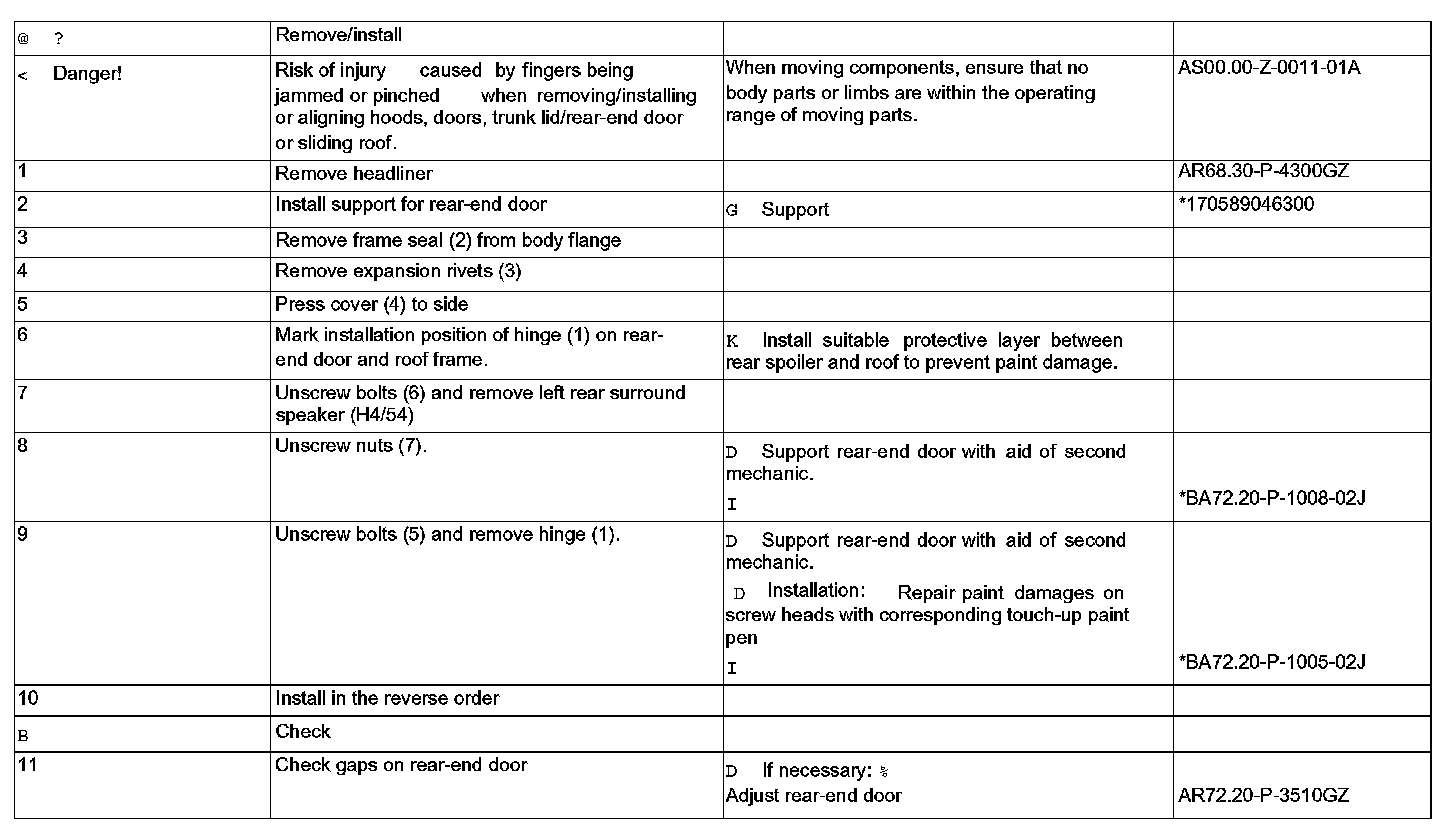

Steps 1 - 11:

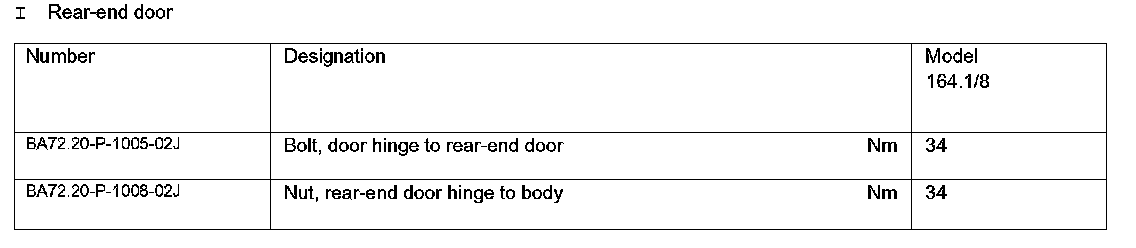

Rear-end Door:

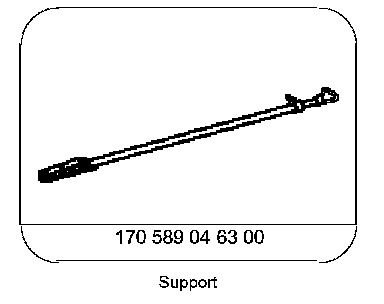

Special Tools:
