Home >> Mercedes Benz Truck >> 2007 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Service and Repair >> Removal and Replacement >> AR82.70-P-0030GZ Remove/Install Compensator Control Unit

AR82.70-P-0030GZ Remove/Install Compensator Control Unit



AR82.70-P-0030GZ Remove/Install Compensator Control Unit
- with CODE (388) "Portable CTEL" UPCI telephone system

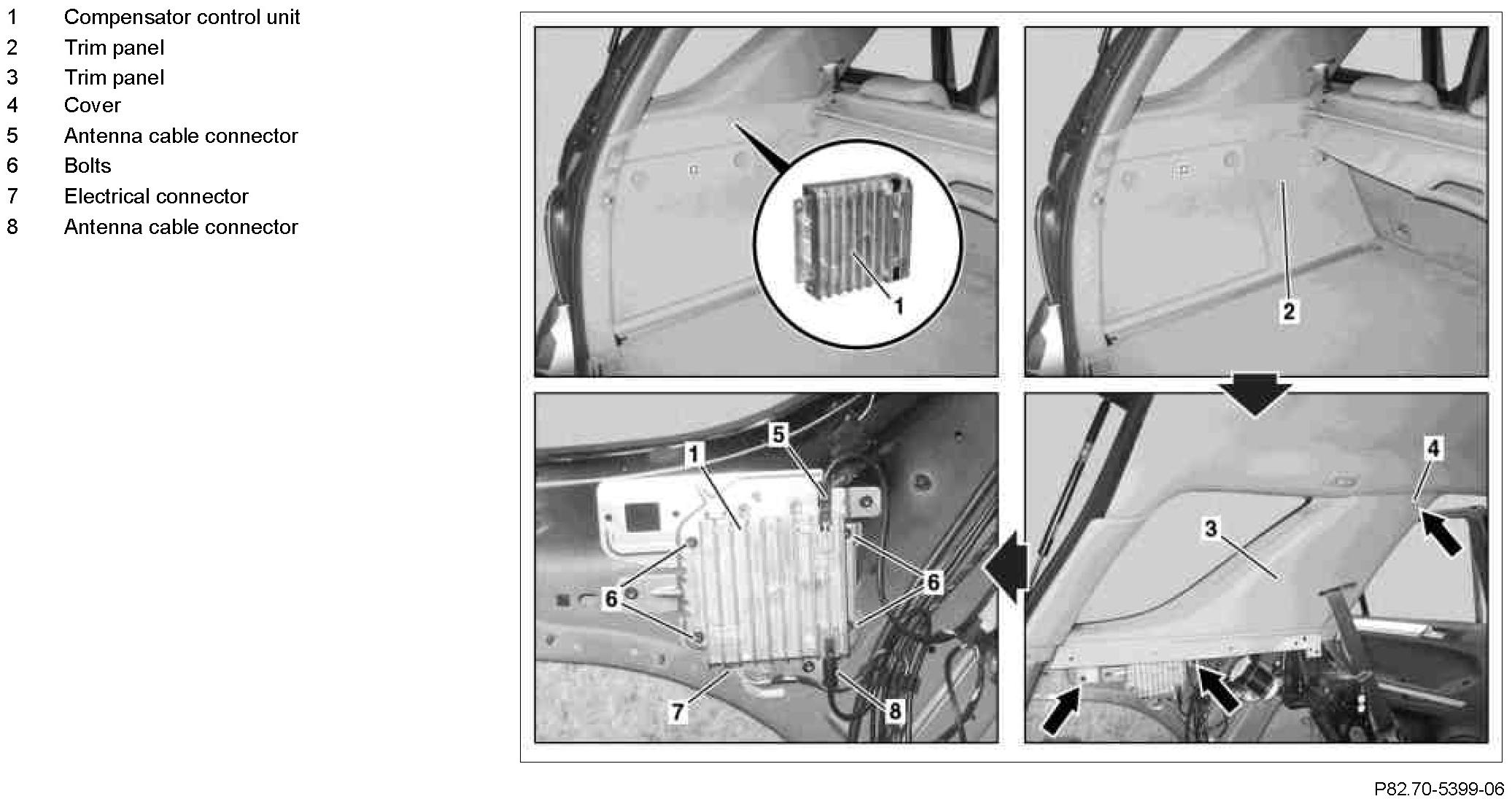

Component Identification:

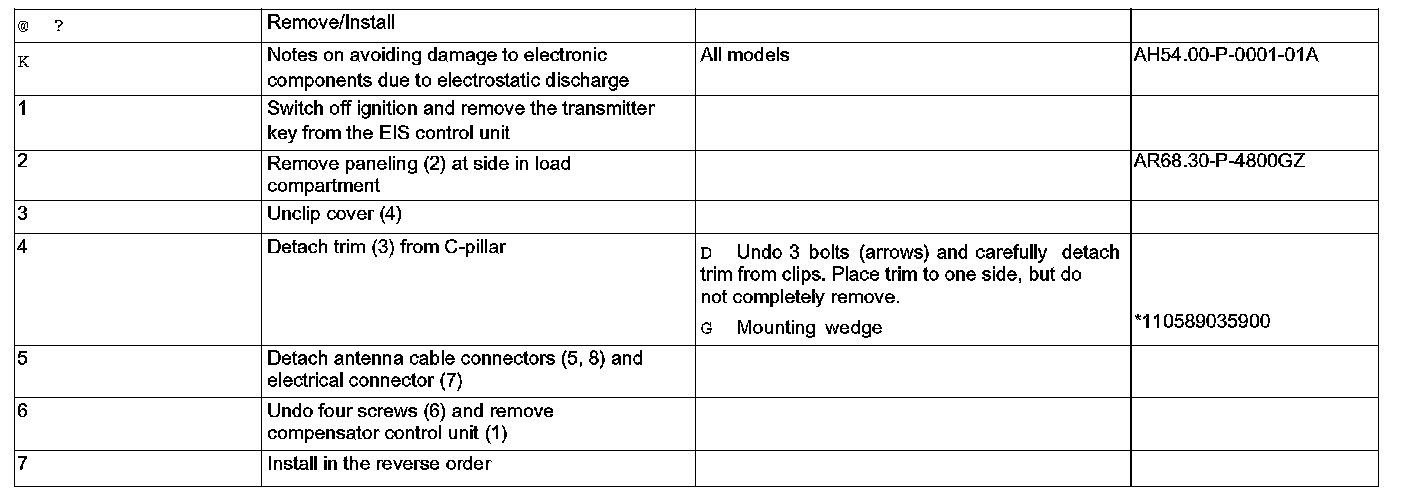

Steps 1 - 7:

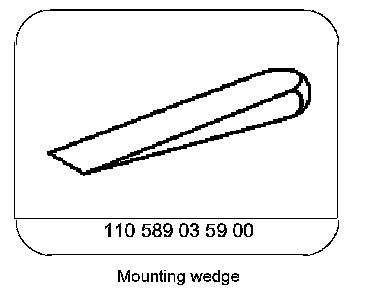

Special Tools:
