Home >> Mercedes Benz Truck >> 2007 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Module >> Service and Repair

Keyless Entry Module: Service and Repair



AR80.35-P-0001GZ Remove/Install Keyless Go Control Unit
- with CODE (889) Keyless Go

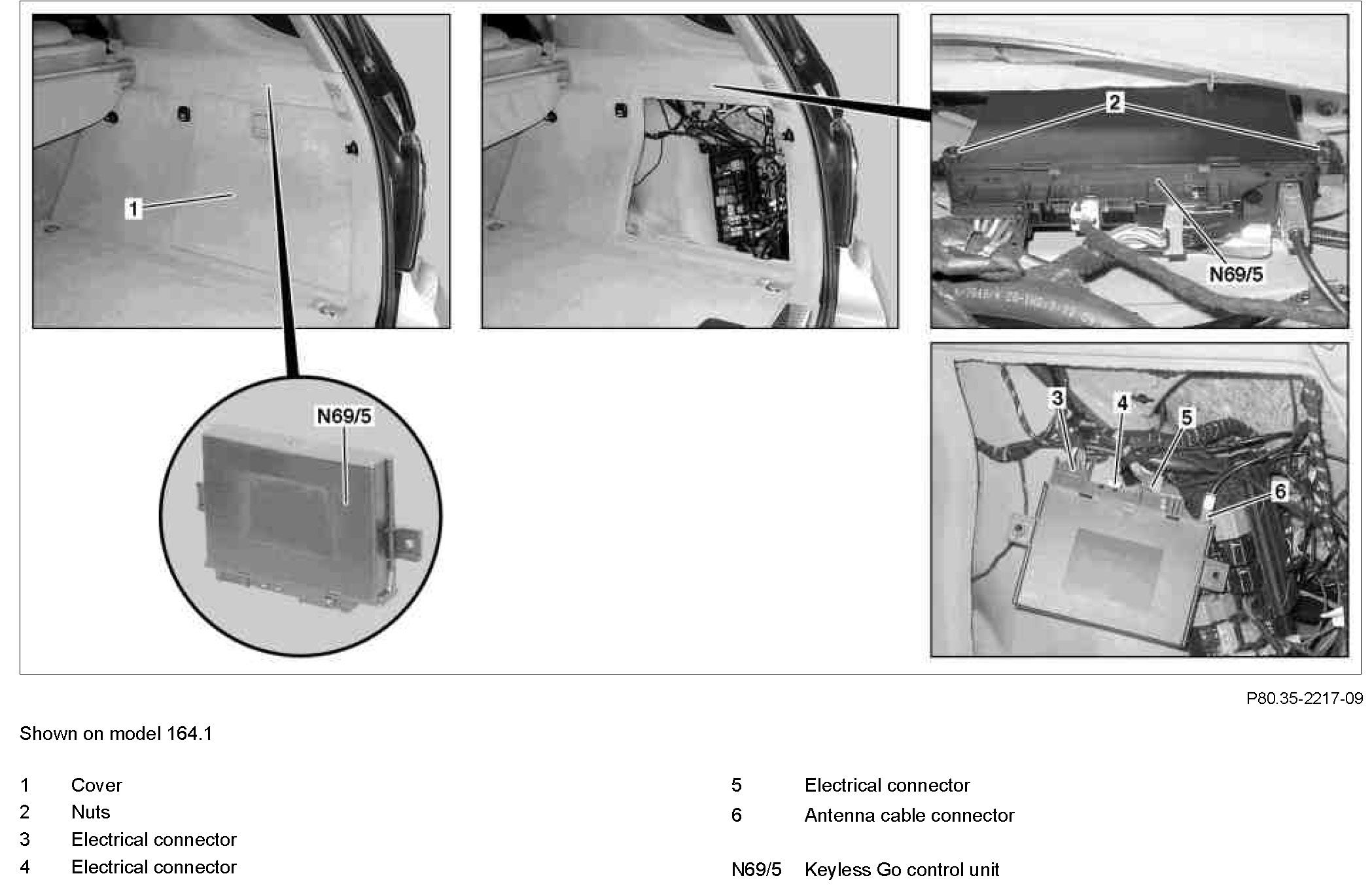

Component Identification:

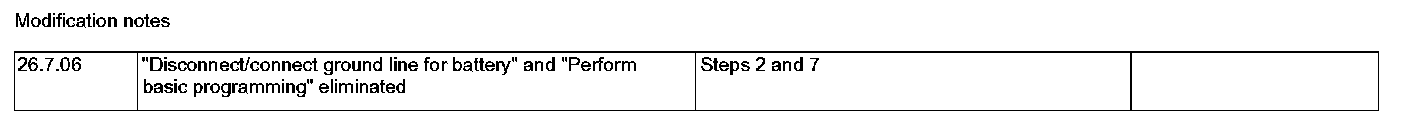

Modification Notes:

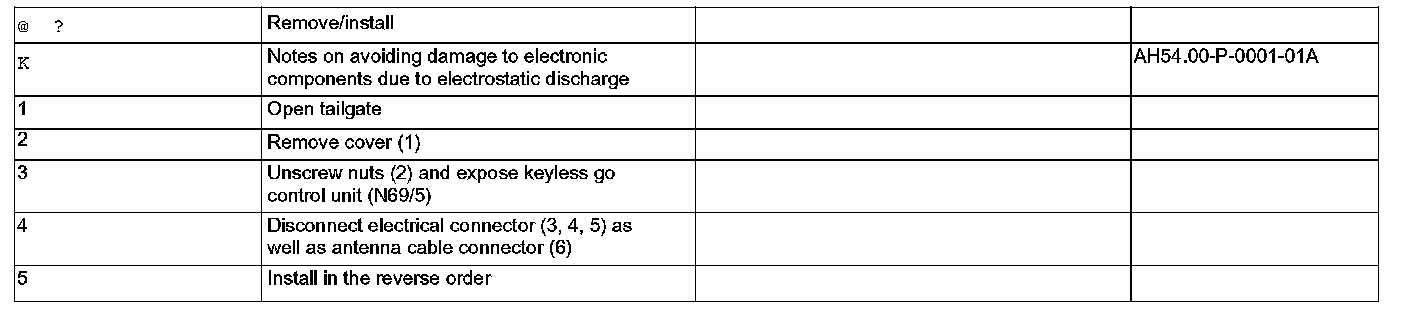

Steps 1 - 5:
