GF80.50-P-6000GZ Interior Protection Sensor, Component Description




GF80.50-P-6000GZ Interior Protection Sensor, Component Description

MODEL 164
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- except CODE (494) USA version
- with CODE (882) Interior monitoring (with ATA [EDW] only)
- up to Model Year 8







Shown on model 164.1

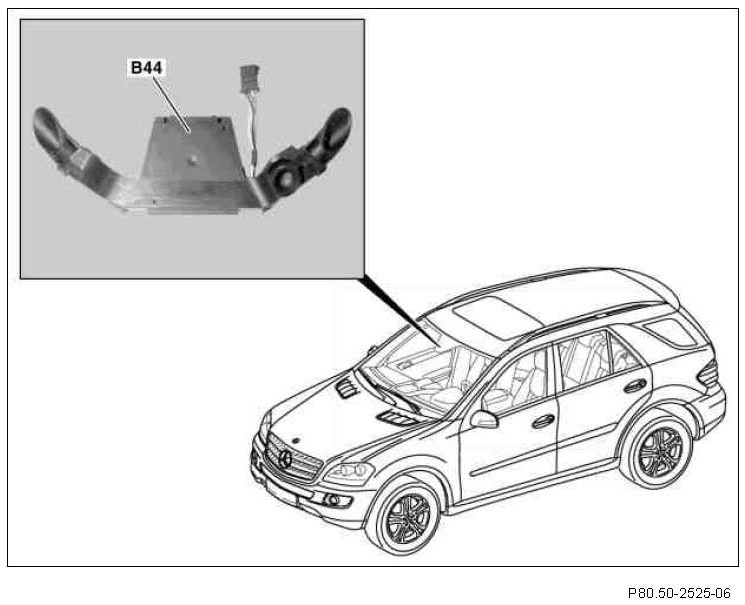

B44 Interior protection sensor

Location
The interior protection sensor is integrated in the overhead control panel control unit (N70).

Task
The interior protection sensor operates as motion detector and senses motions in the passenger compartment.

Function
Monitoring passenger compartment with aid of ultrasonic signals transmitted in random directions In this way the interior protection sensor detects manipulations in the vehicle and trigger an alarm.
