Wiper Washer System

Preparation for Test:
1. Battery voltage 11-14V,
2. Fuses ok,
3. Connect HHT, see section 0

CAUTION:
- Injury hazard from pinching and crushing, In extreme cases extremities can even be severed when caught in windshield wiper mechanism.
- When working in the area of the windshield wiper mechanism with the ignition key in position "1" or "2" the wiper arm or wiper linkage can be pushed out of its park position and start running unintentionally. This can result in severe injuries by cutting, pinching or crushing body parts.
- Always remove Ignition key before working on windshield wiper mechanism.

Protective measures:
- Always remove ignition key before working on windshield wiper mechanism.
- Do not reach into the wiper mechanism at any time during any tests.
- Keep sufficient distance away from any moving parts.
- Supervise work.
- Wear tight fitting clothing and hair net.

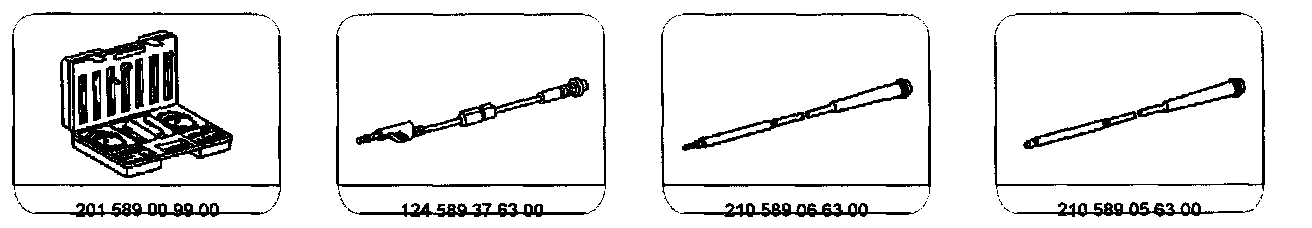

Special Tools:

Test equipment; See MBNA Standard Service Equipment Program
Description Brand, model, etc.
Digital multimeter Fluke models 23, 77 III, 83, 85, 87
