Electrical Test Program Wiper System

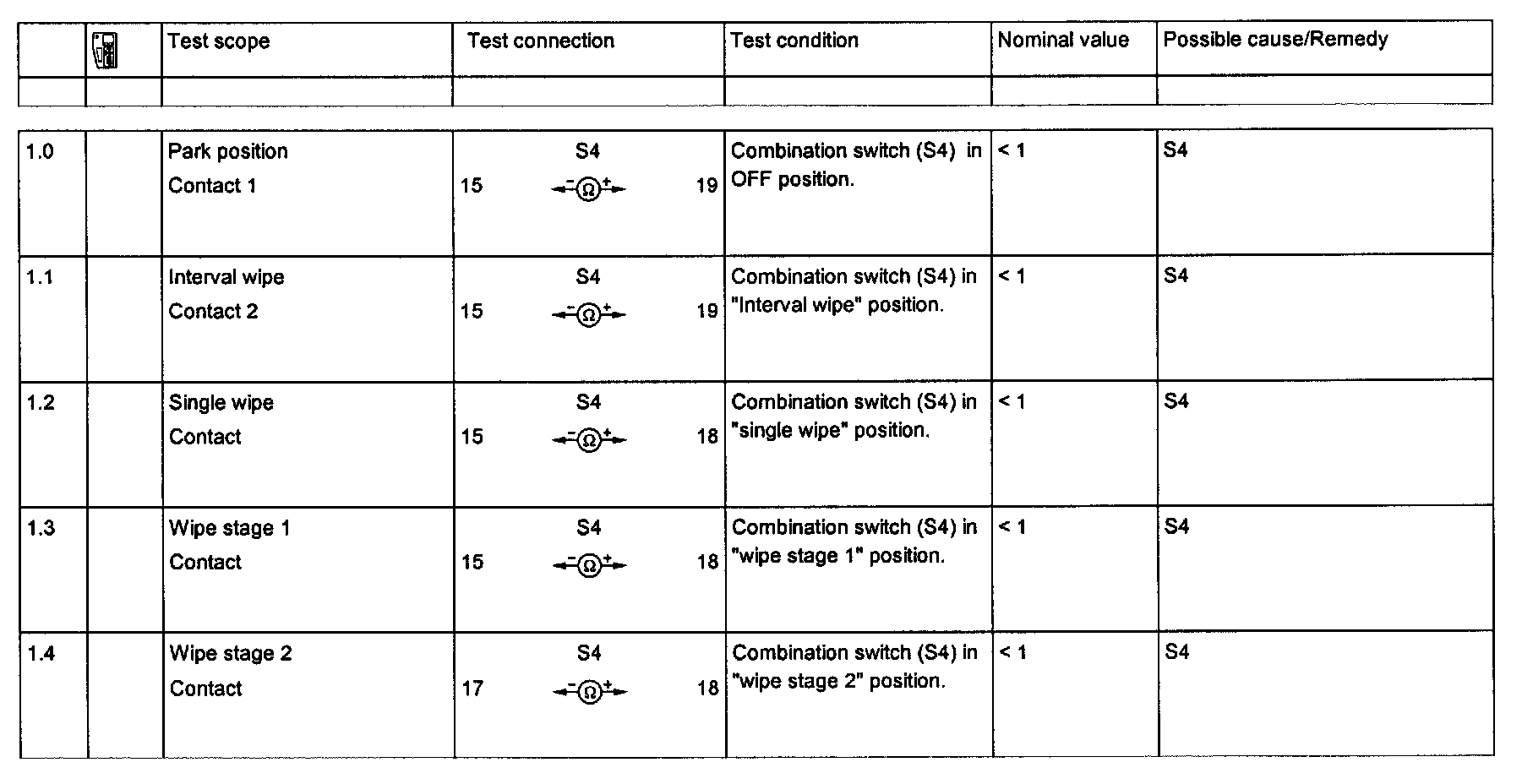

Steps 1.0 - 1.4:

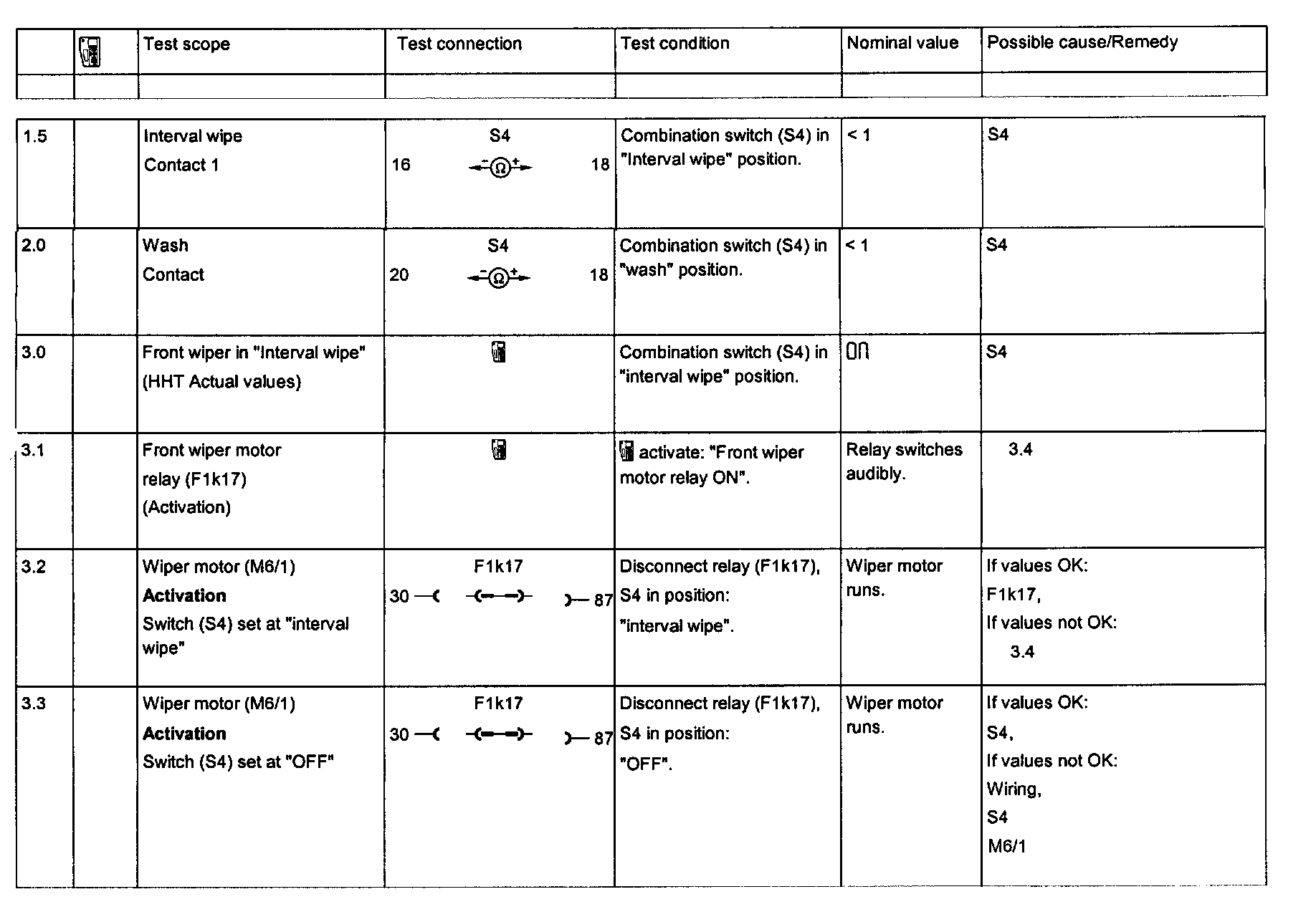

Steps 1.5 - 3.3:

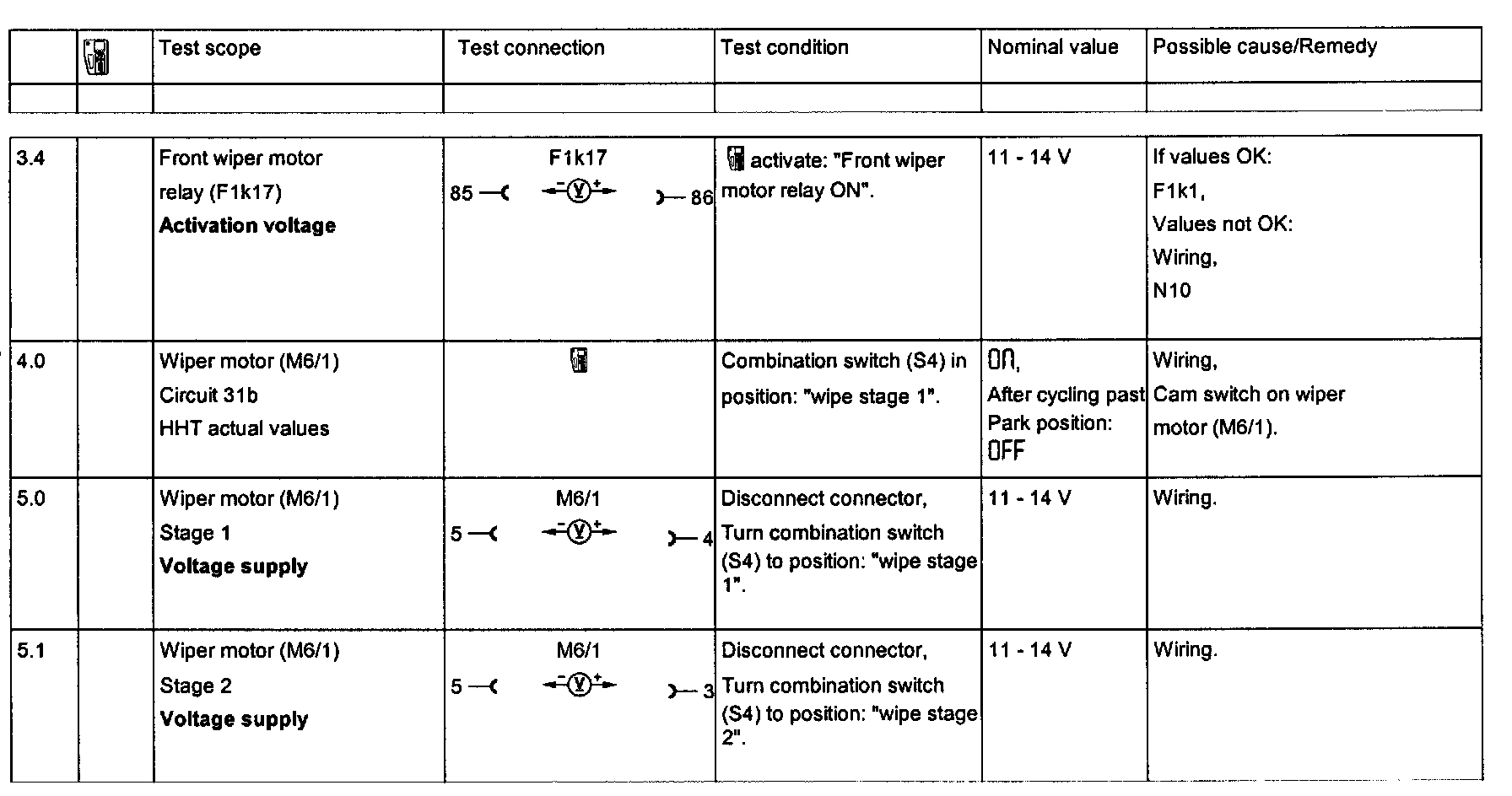

Steps 3.4 - 5.1:

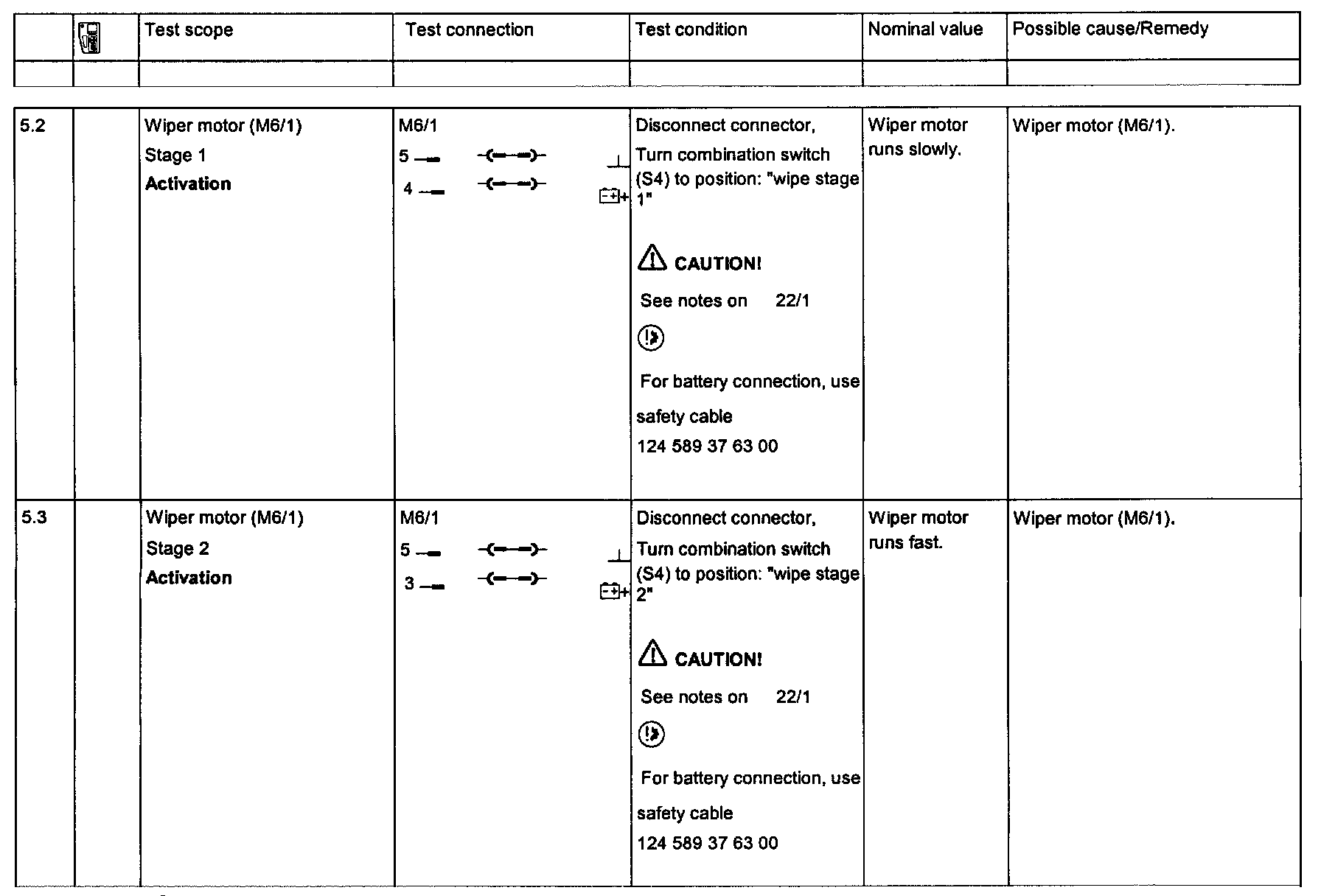

Steps 5.2 - 5.3:

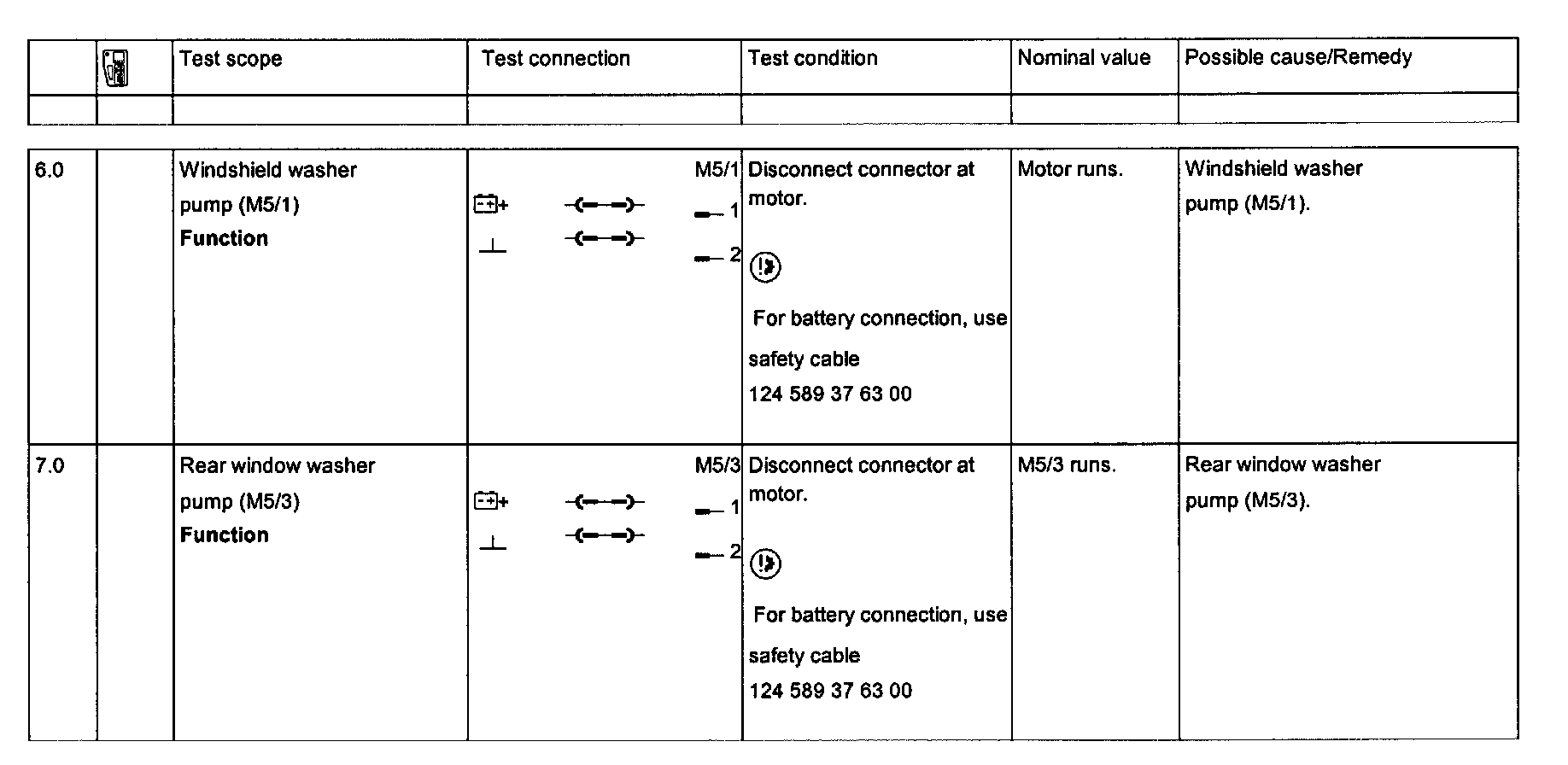

Steps 6.0 - 7.0:

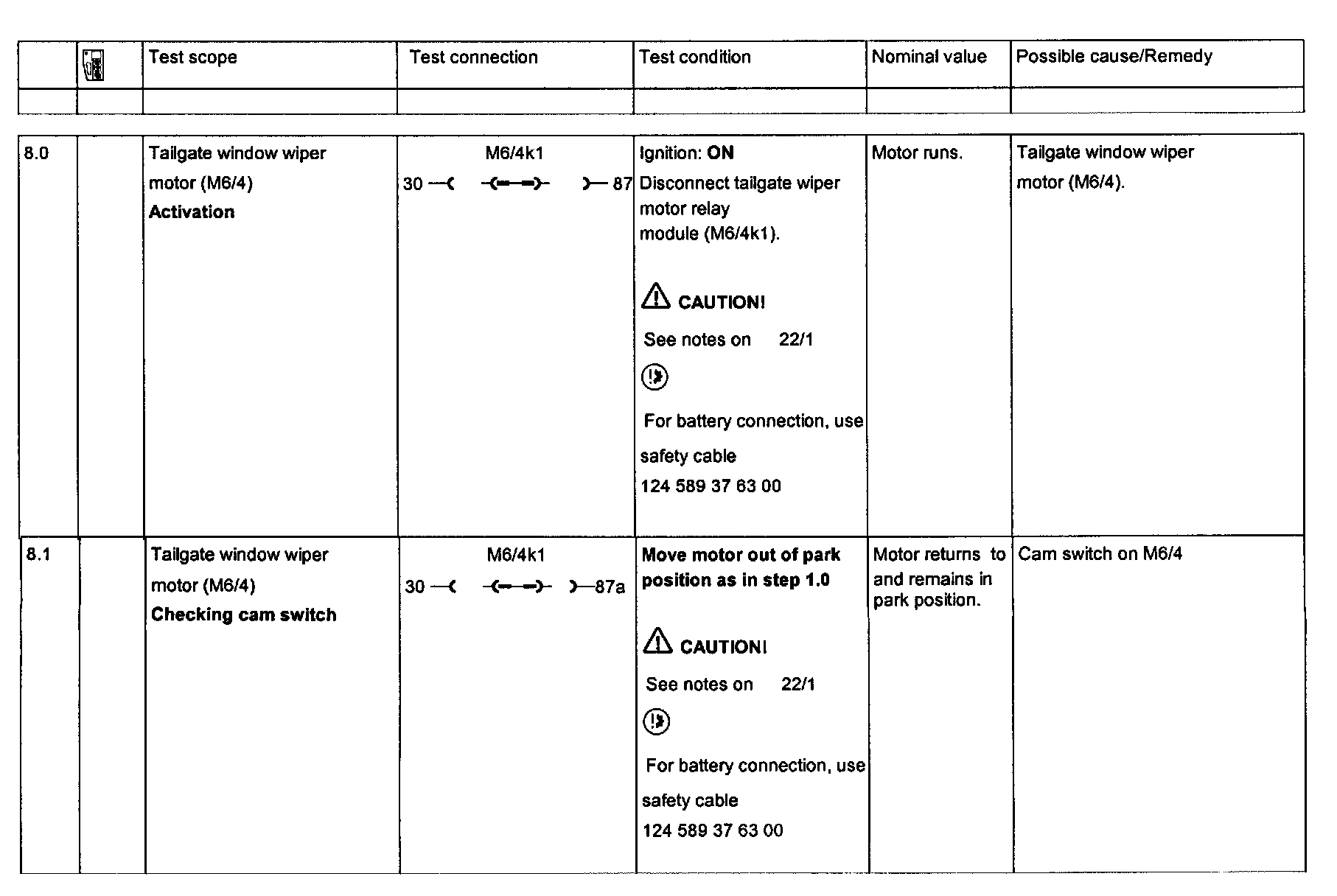

Steps 8.0 - 8.1:

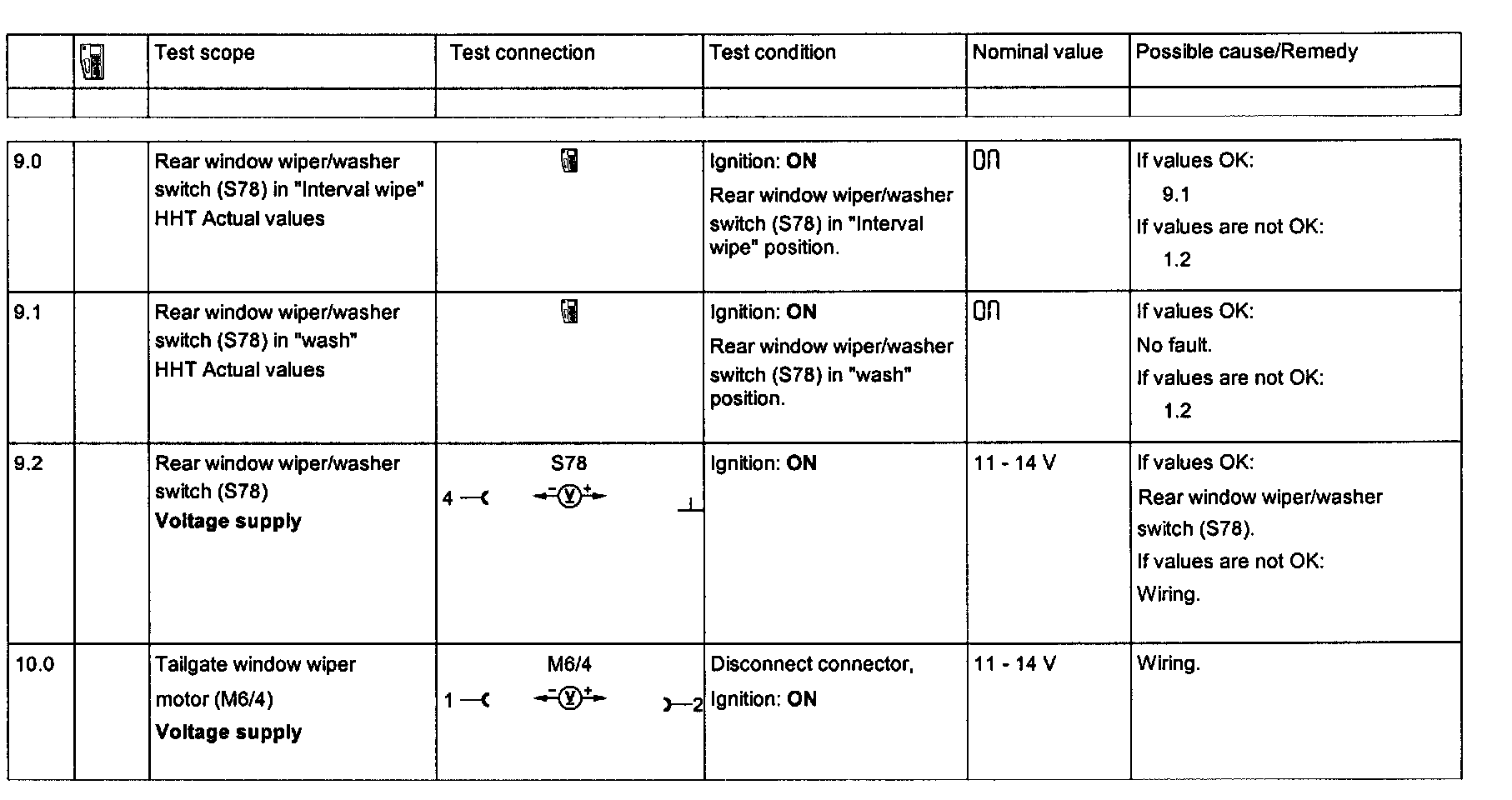

Steps 9.0 - 10.0:

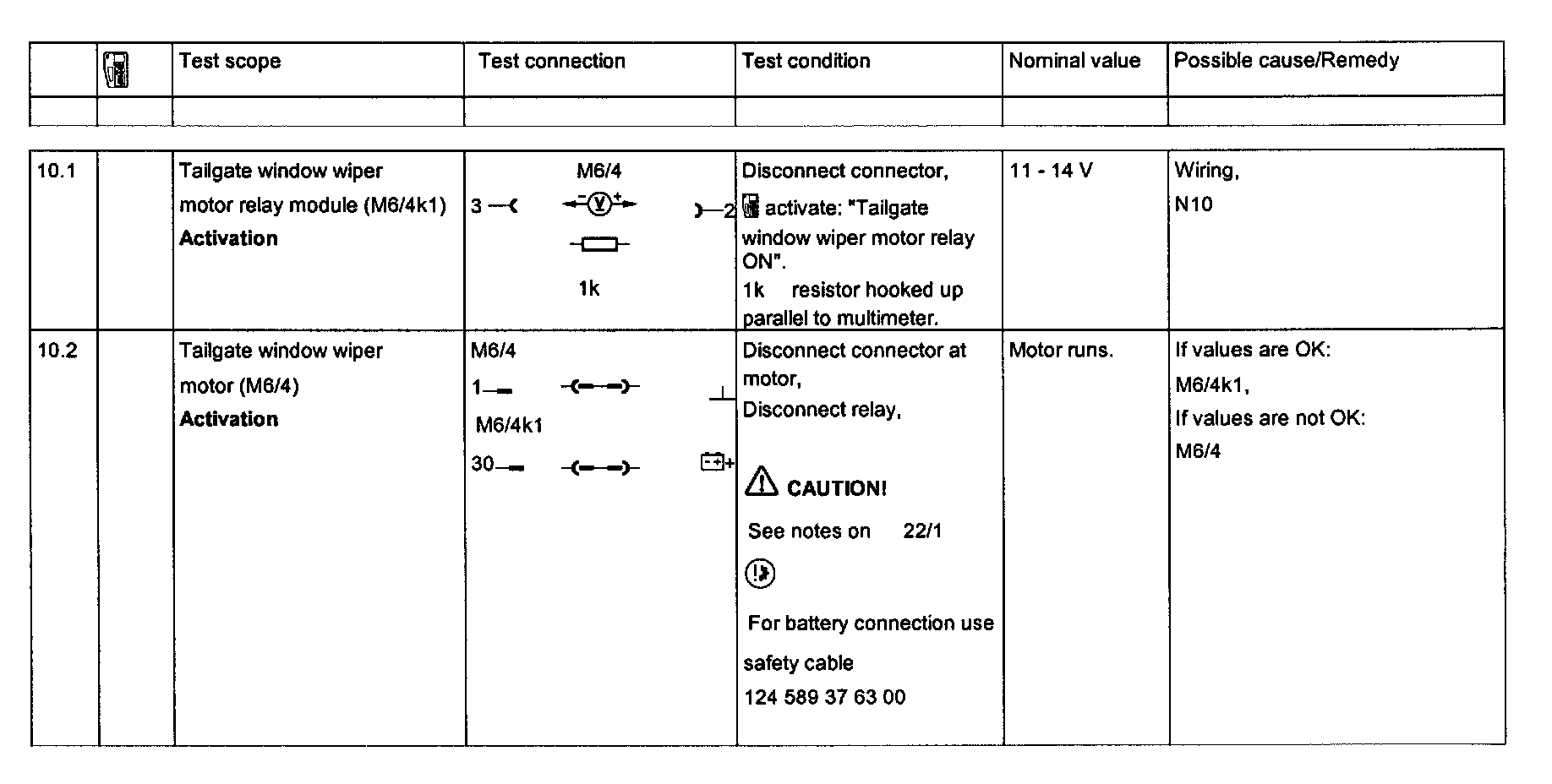

Steps 10.1 - 10.2:
