Mercedes Benz Truck
>>
2005
>>
ML 350 (163.157) V6-3.7L (112.970)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

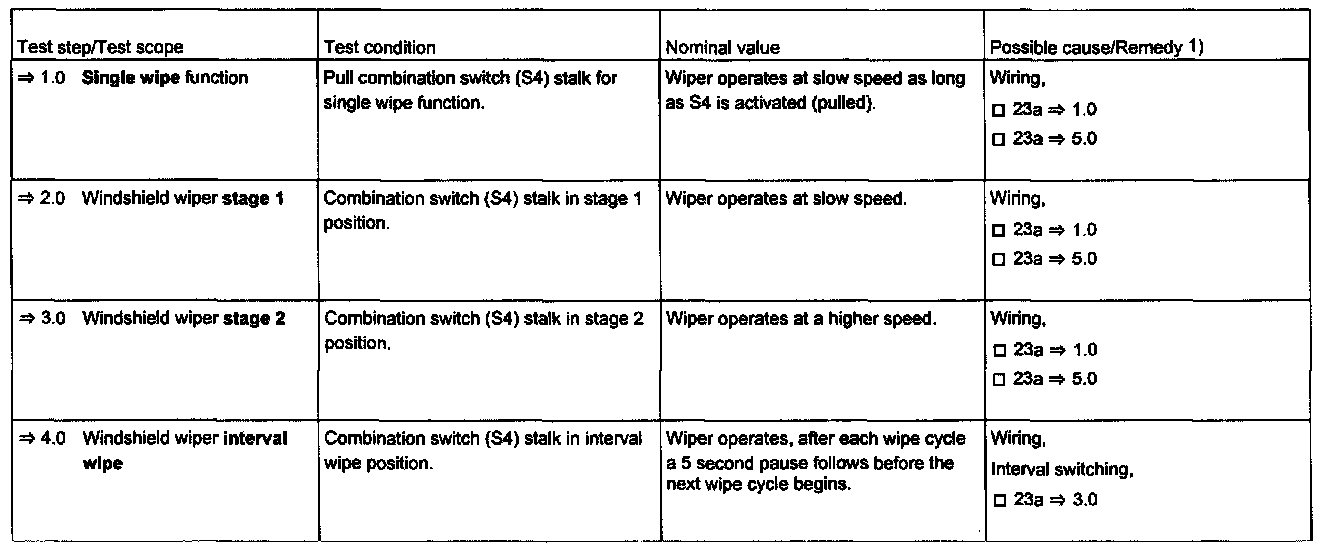

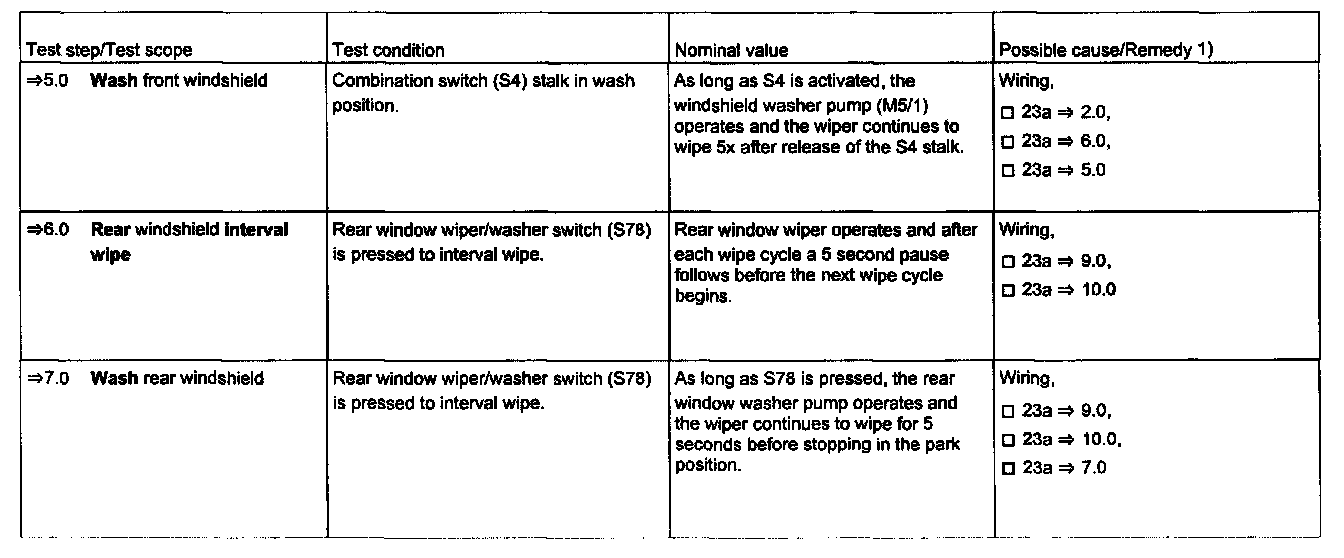

Function Test - Section 11
Function Test - Section 11
Preparation for Test:
1.
Battery voltage 11 to 14 V
2.
Fuses ok.
3.
Voltage supply to AAM is OK.
4.
Ignition: ON (Circuit 15)
