Rain Sensor: Service and Repair

Remove/Install Rain Sensor







Remove/Install

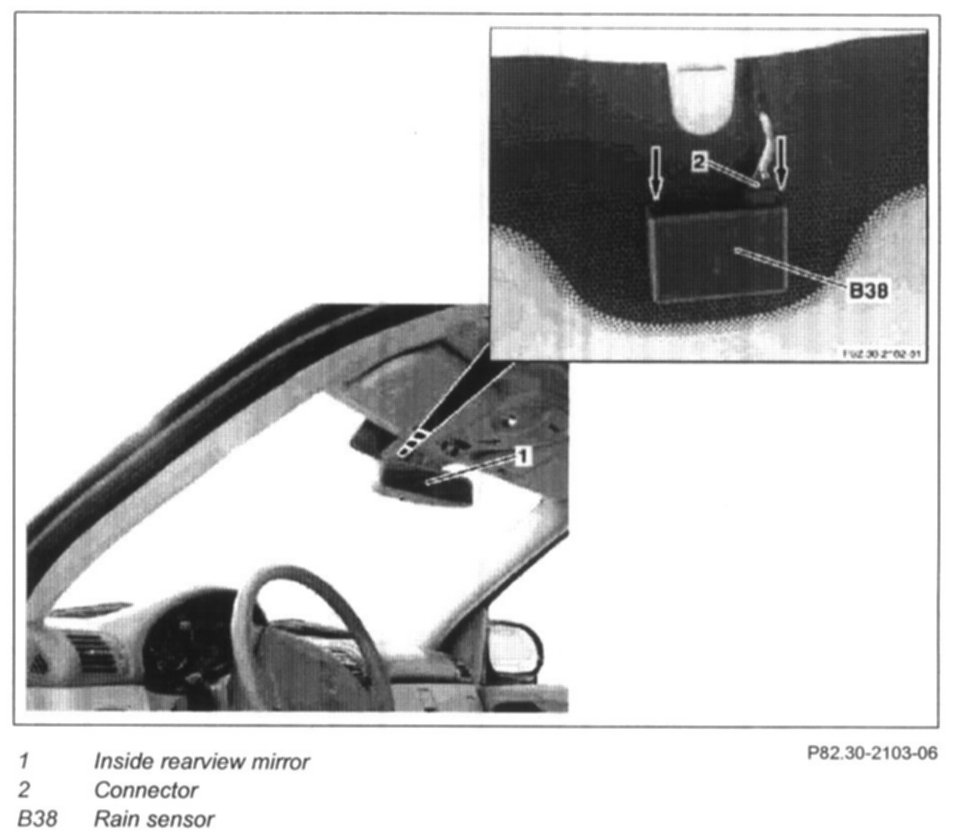

1 Remove rearview mirror (1)
2 Disconnect connector (2)
3 Press retaining lugs (arrows) downward
4 Remove rain sensor (B38)

NOTE: Optical element for rain sensor is glued to windshield and should not be removed.

5 Install in the reverse order
