Front Door Window Regulator: Service and Repair



Removing and installing window lift mechanism in front door

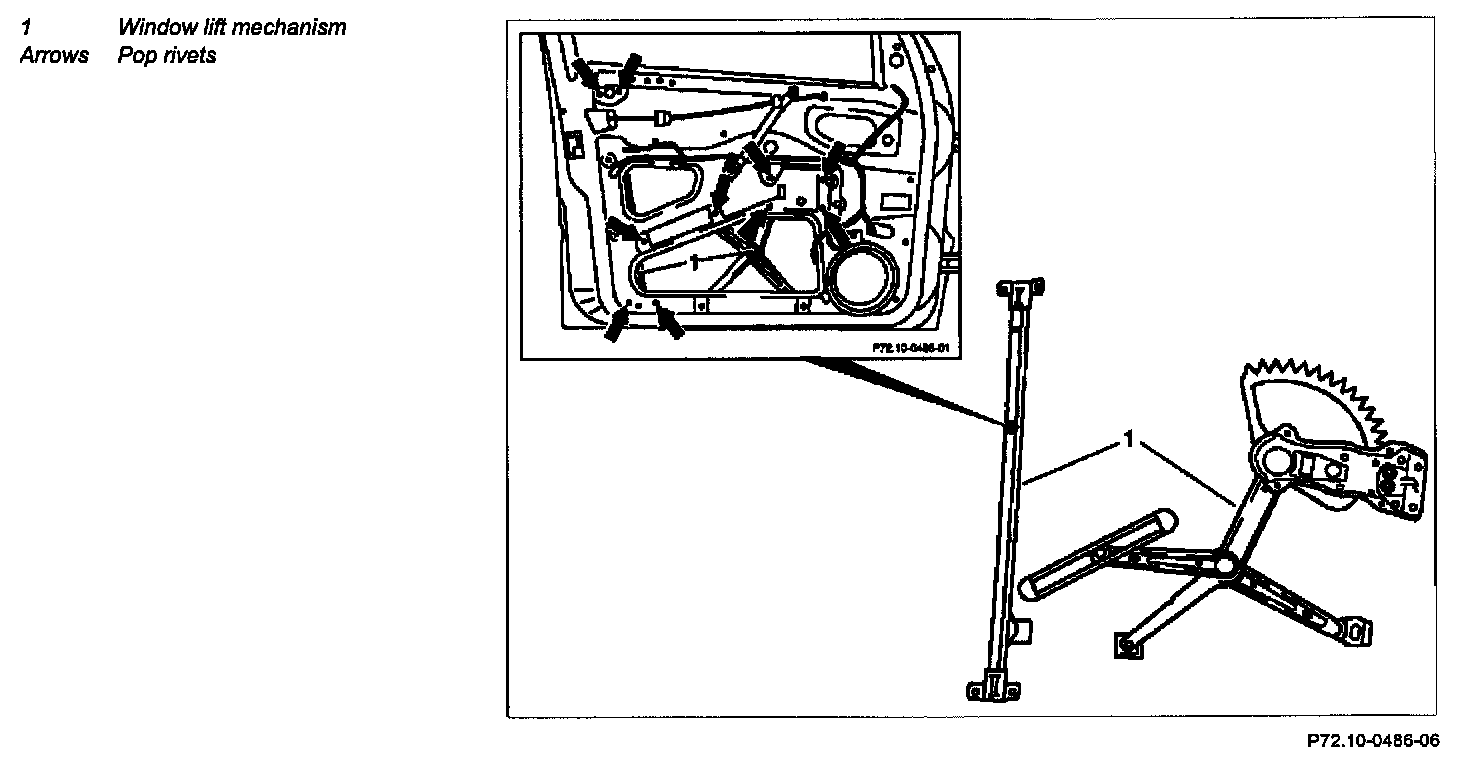

Component Identification:

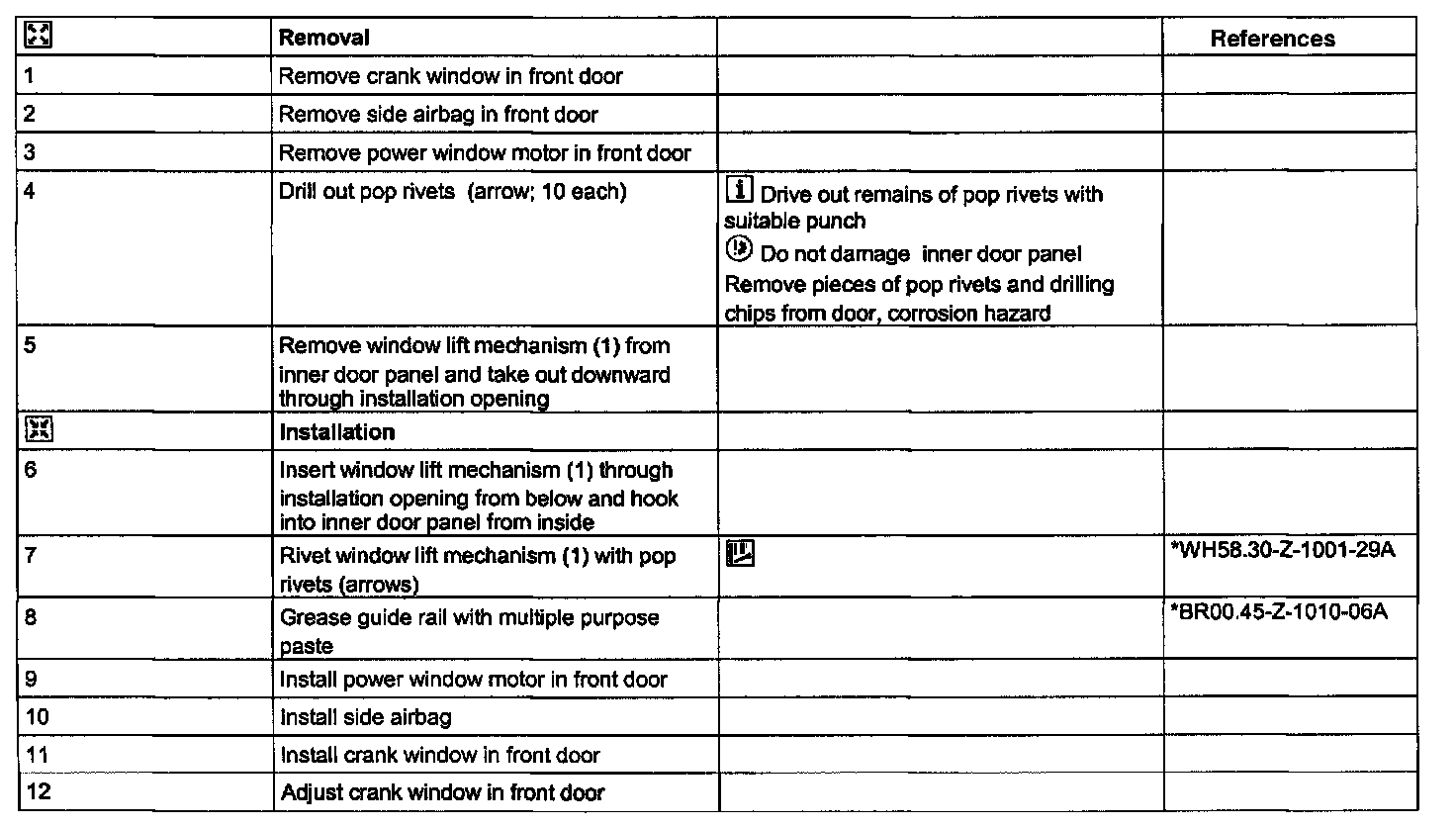

Removal, Installation, Steps 1 - 12:

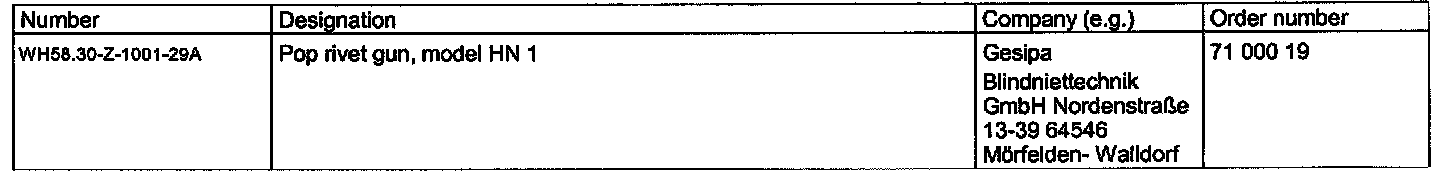

References (BR), Service Products For Repair:
