Front Door Window Motor: Service and Repair

Removing And Installing Power Window Motor In Front Door

Removal, installation
1 Remove door liner on front door
2 Pull door foil off of inner door panel

CAUTION: Installation: Replace damaged foil

3 Unscrew screws (1)

CAUTION: Protect motor against falling

- See Special Tools below.
- Bolt for power window motor in front door = 5 Nm

4 Disconnect connector (2) from power window motor (M10/3 or M10/4)
5 Remove power window motor (M 10/3 or M10/4) from door

NOTE: Installation: Grease gear on motor lightly

- When installing observe hole pattern for mounting

6 Install in opposite order

Special Tools

Front Door Window Motor: Service and Repair

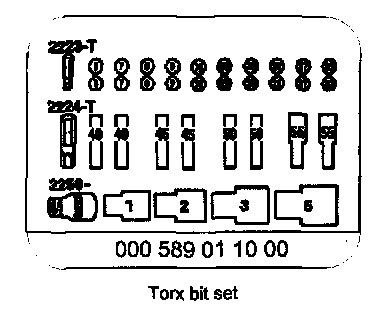

Torx Bit Set P/N # 000 589 01 10 00:
