GF72.29-P-4000GH Position Recognition of Power Windows, Function

GF72.29-P-4000GH Position Recognition Of Power Windows, Function







Function

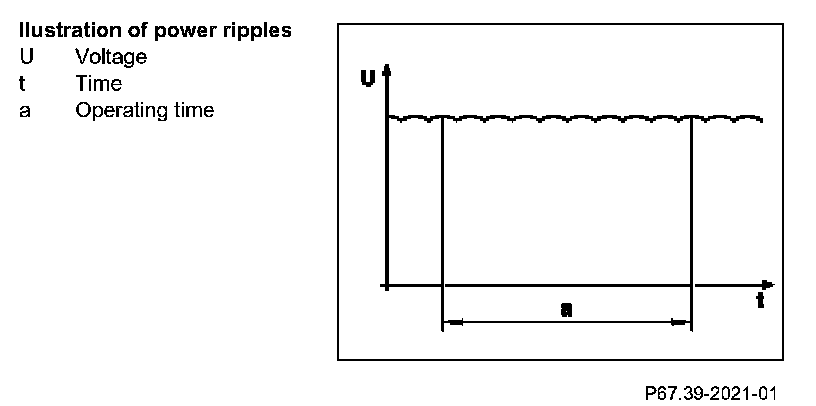

The evaluation of the window position is determined by the power ripples:
Each time the power window motor is readjusted it sends a pulse which is evaluated by the micro-controller integrated in the lower control panel control module (N72)

Each time the armature in the power window motor rotates the direction of the current changes 10 times and the position counter increases or decreases by " 10 ".

When the permissible position ranges are exceeded, the power window motor is desychronized.
