Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Control Module >> Service and Repair

Control Module: Service and Repair



Removing, Installing Electronic Transmission Control (ETC) Control Module

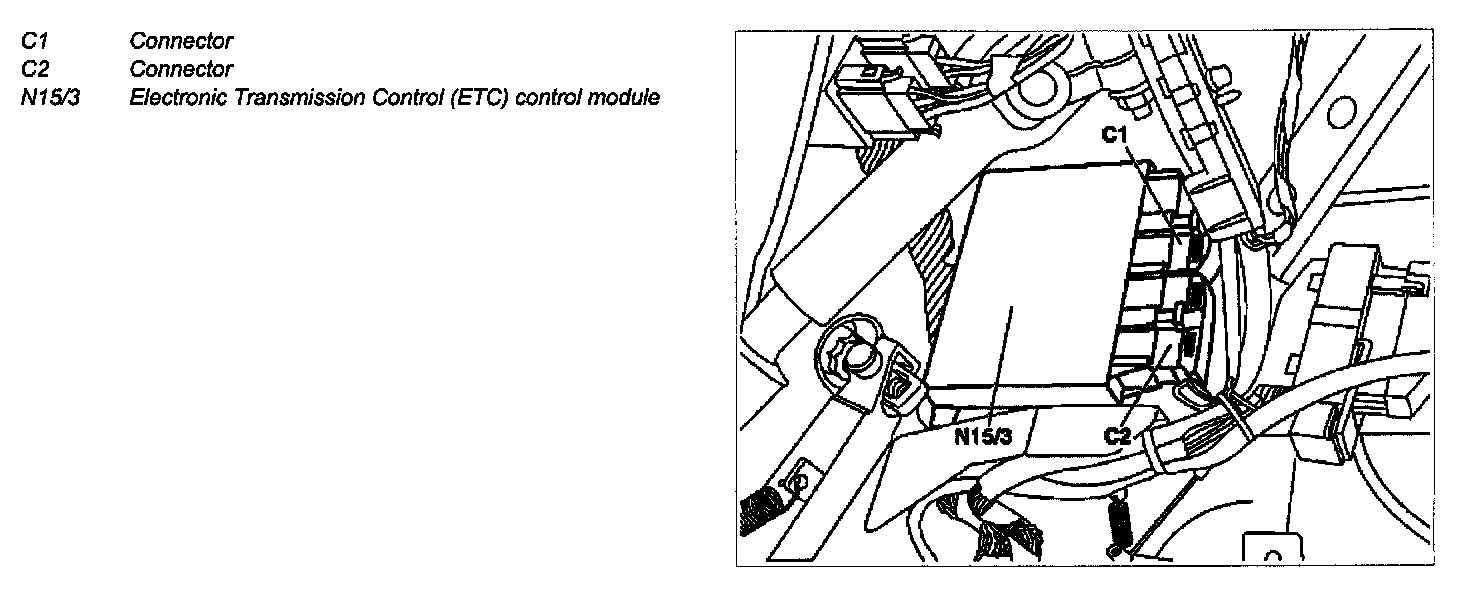

Operation Illustration:

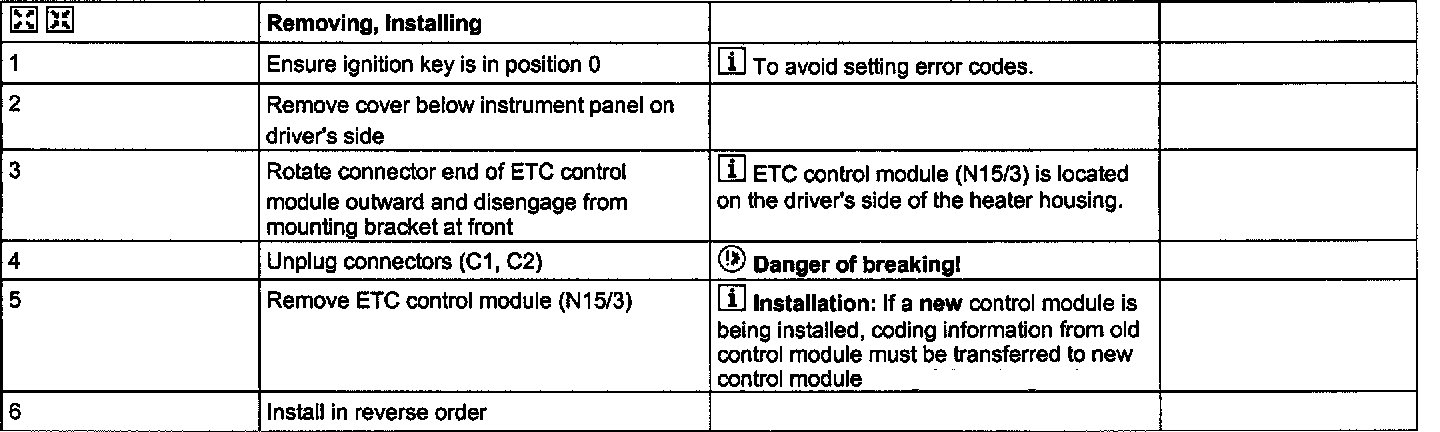

Service Procedure:
