AR27.10-P-0500GH Remove/Install Transmission With Torque Converter

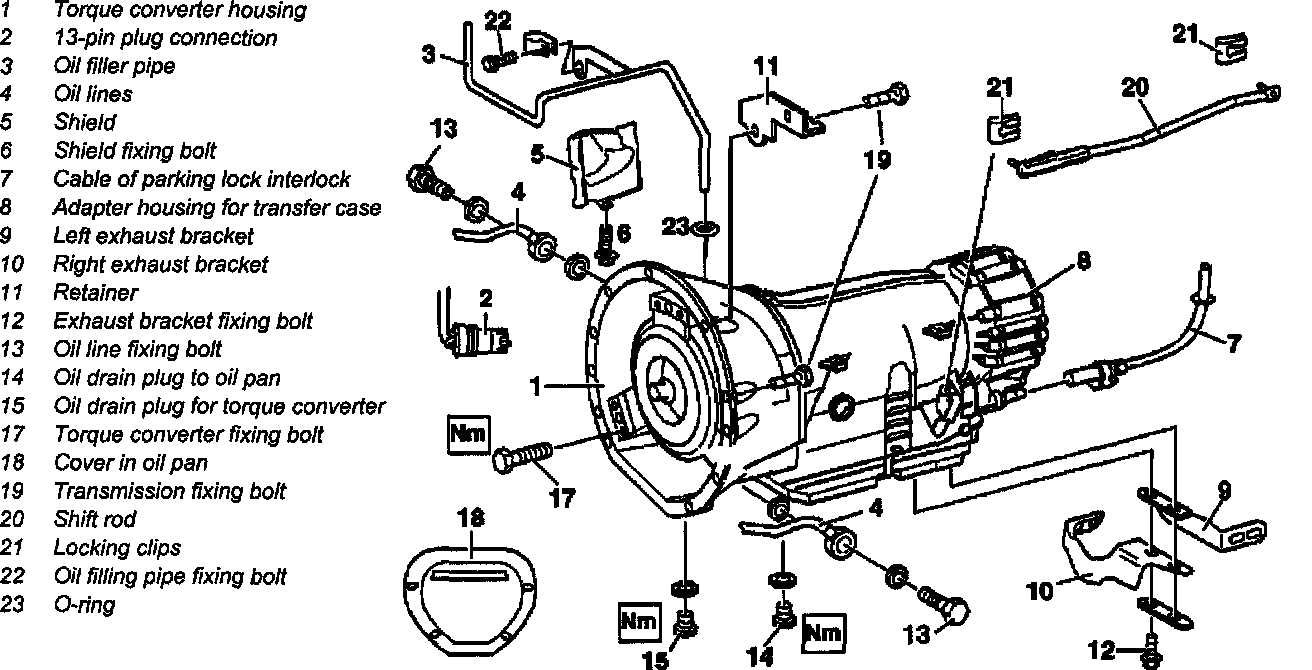

Operation Illustration:

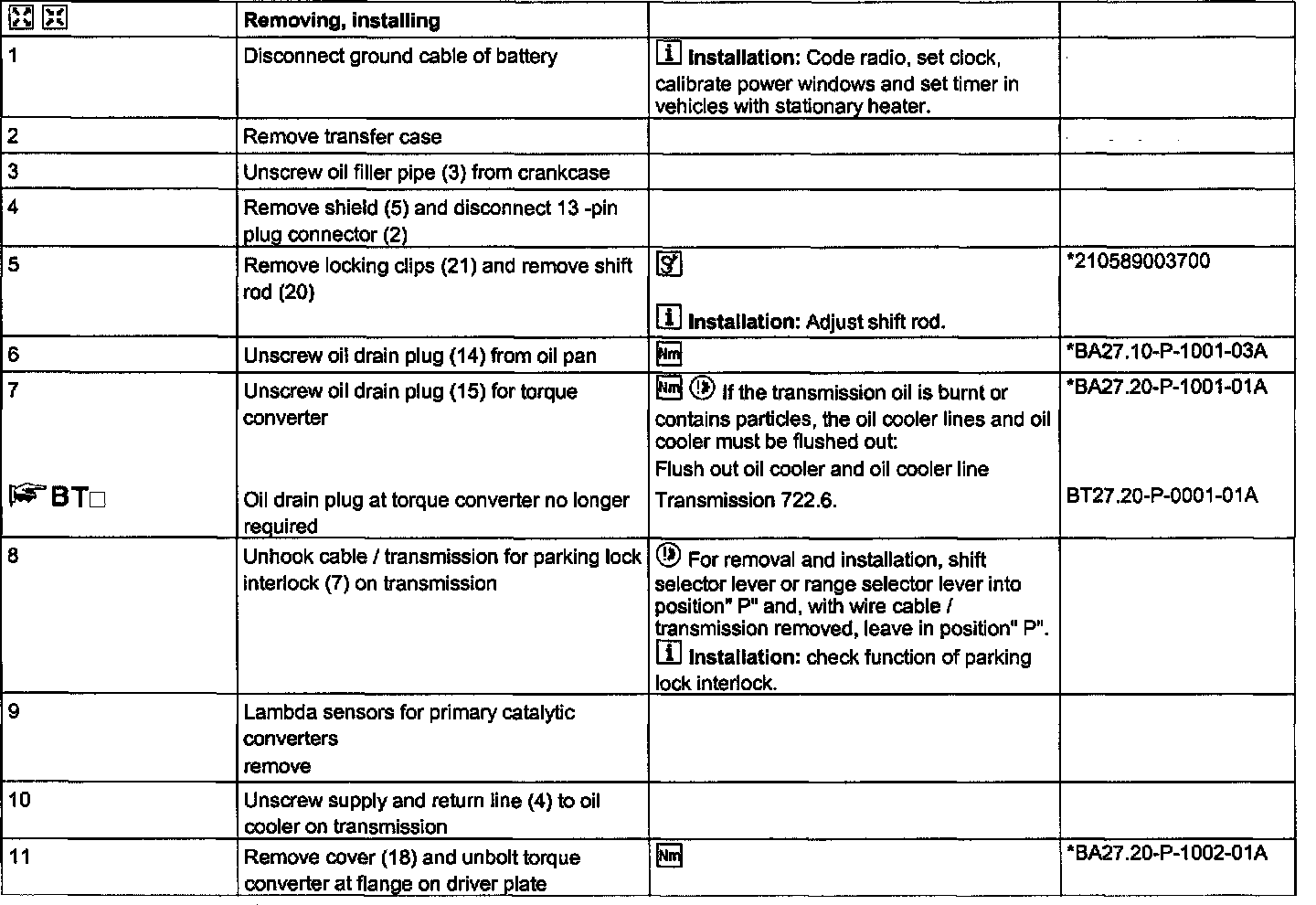

Service Procedures (Steps 1 - 11):

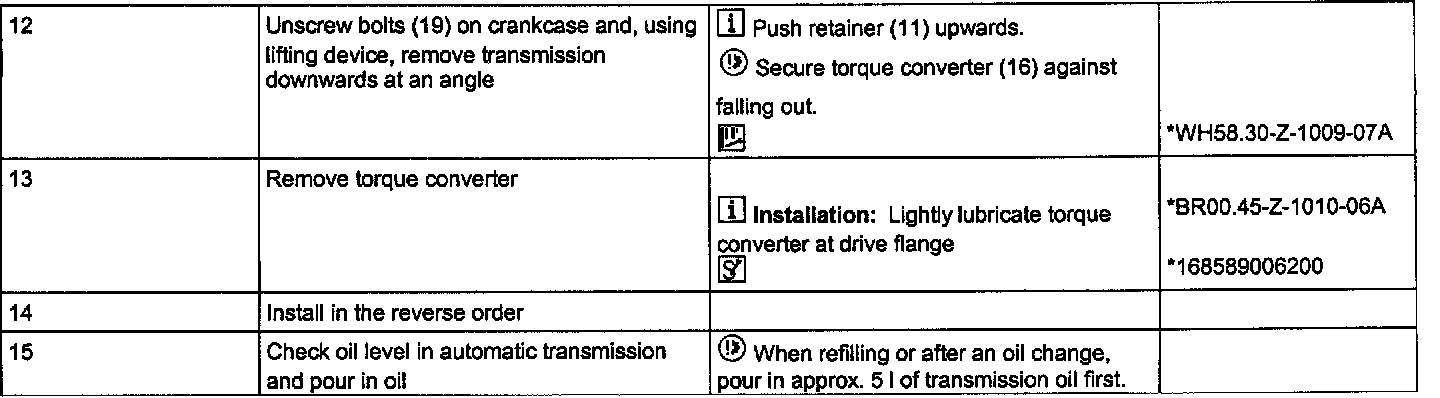

Service Procedures (Steps 12 - 15):

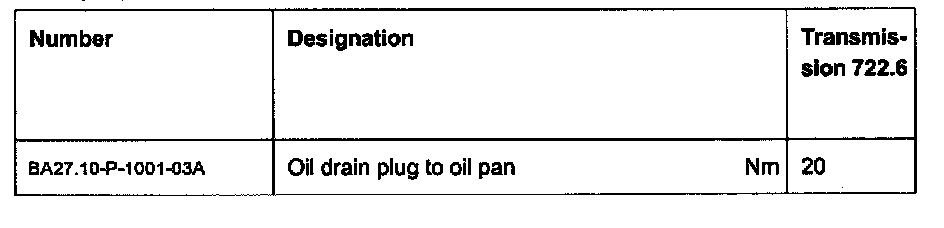

Tightening Specifications (Part 1 Of 3):

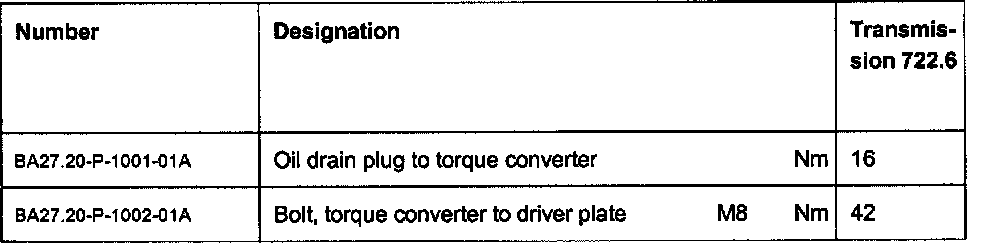

Tightening Specifications (Part 2 Of 3):

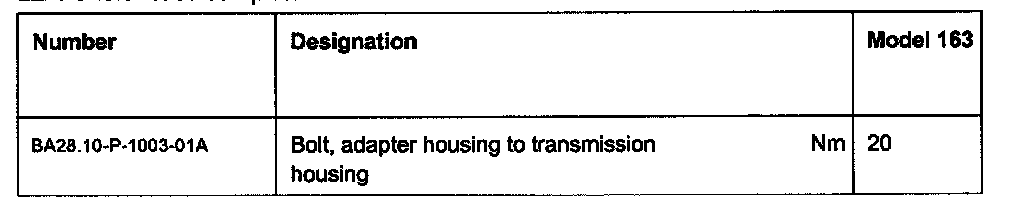

Tightening Specifications (Part 3 Of 3):

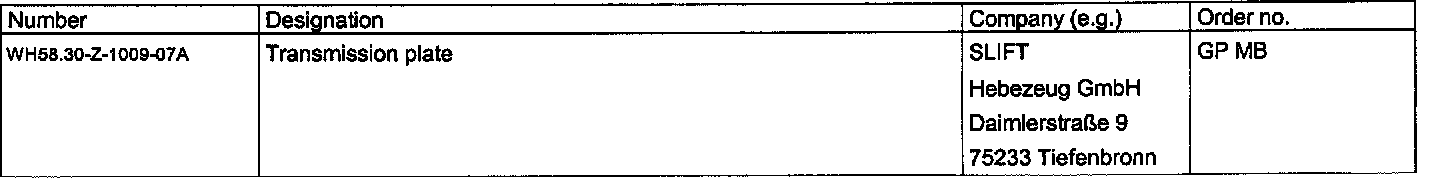

Special Tools:

Repair Products:

Commercially Available Tools:
