Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> GF27.19-P-5101GH Transmission Range Recognition Switch, Location / Task / Design / Function

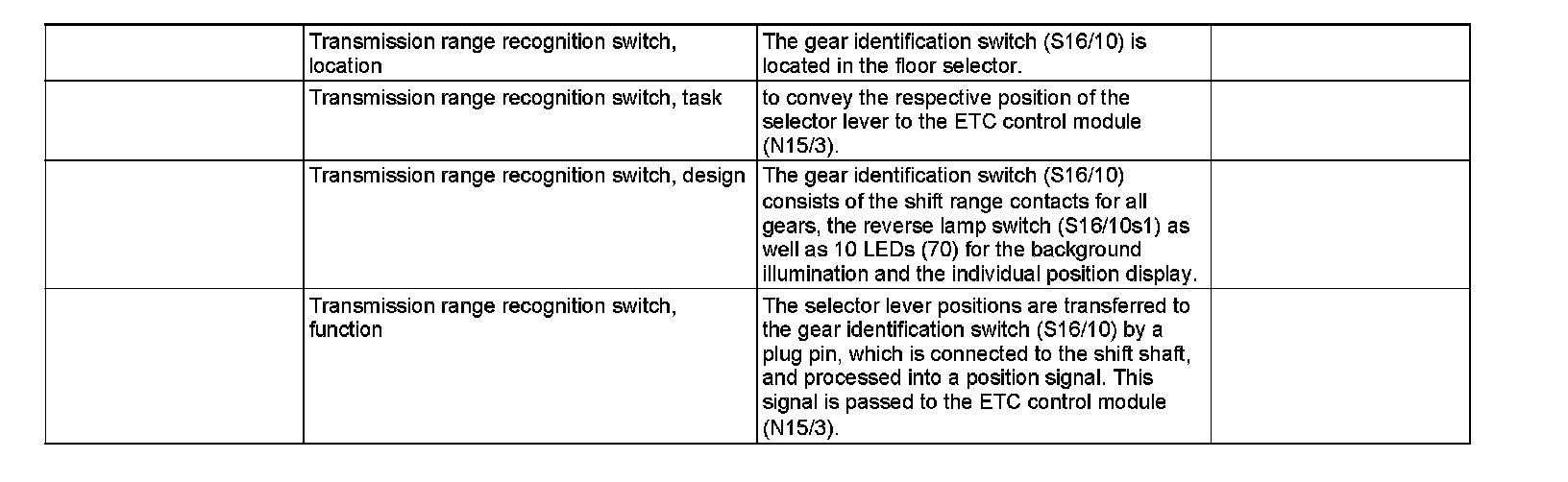

GF27.19-P-5101GH Transmission Range Recognition Switch, Location / Task / Design / Function



GF27.19-P-5101GH Transmission range recognition switch, location / task / design / function
- TRANSMISSION 722.6
- with touch shift

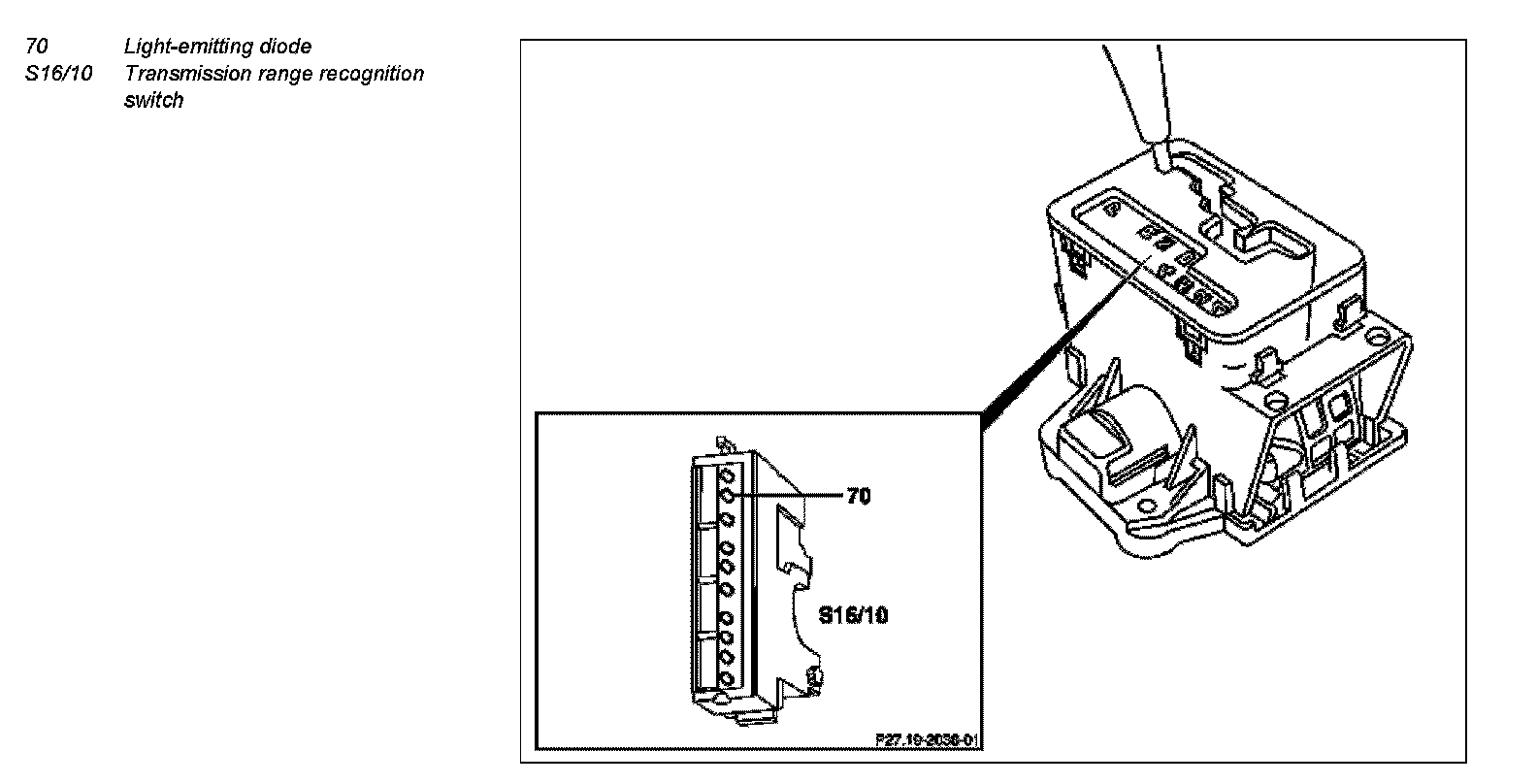

Component Identification:




Component Identification:
