AR54.15-P-1255GI Remove/Install Right Footwell Fuse and Relay Box

Removing And Installing Fuse And Relay Box

Right Footwell






Remove/Install
1 Disconnect ground cable of battery
2 Remove cover below instrument panel

NOTE:
- Right-hand drive vehicle.
- Left hand drive vehicle.

3 Remove paneling in footwell.

NOTE: Only right-hand side.

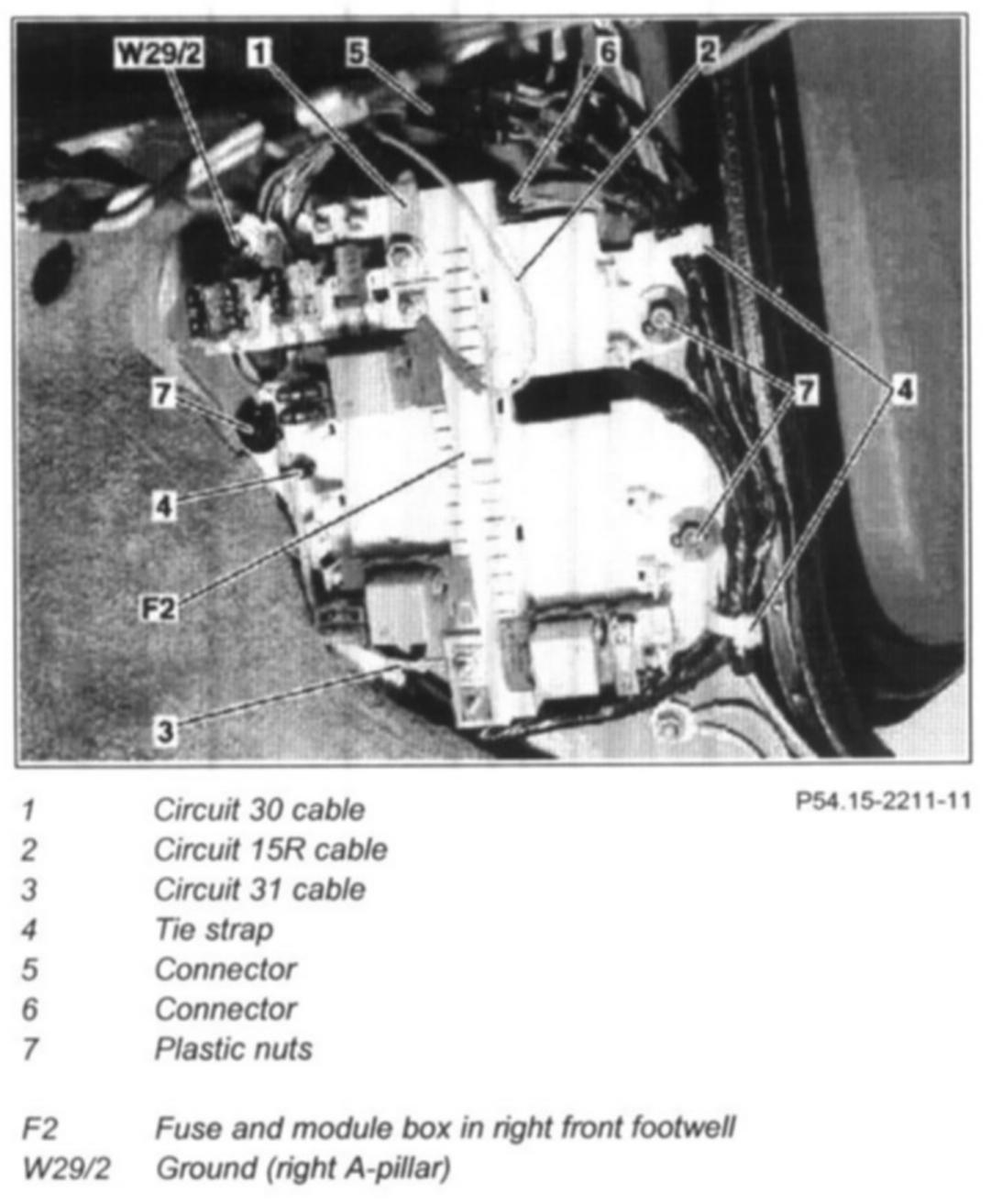

4 Unscrew circuit 30 cable (1) and circuit 15R cable (2) from fuse and relay module in front right footwell (F2).

NOTE: Installation: ensure that lines are routed properly.

5 Remove cable straps (4)

CAUTION: Do not damage wiring harness!

NOTE: Installation: ensure that lines are routed properly.

6 Unplug connector (5) and remove connector at A-pillar

NOTE: Slacken retaining lug on back of connector and push connector towards door.

7 Unplug connector (6).
8 Unscrew nut from ground (right A-pillar) (W29/2) and detach circuit 31 cable (3) from ground.
9 Unscrew plastic nuts (7).
10 Remove fuse and relay module in right front footwell (F2) with wiring harness.
11 Install in the reverse order
