Fuse and Relay Box Locations

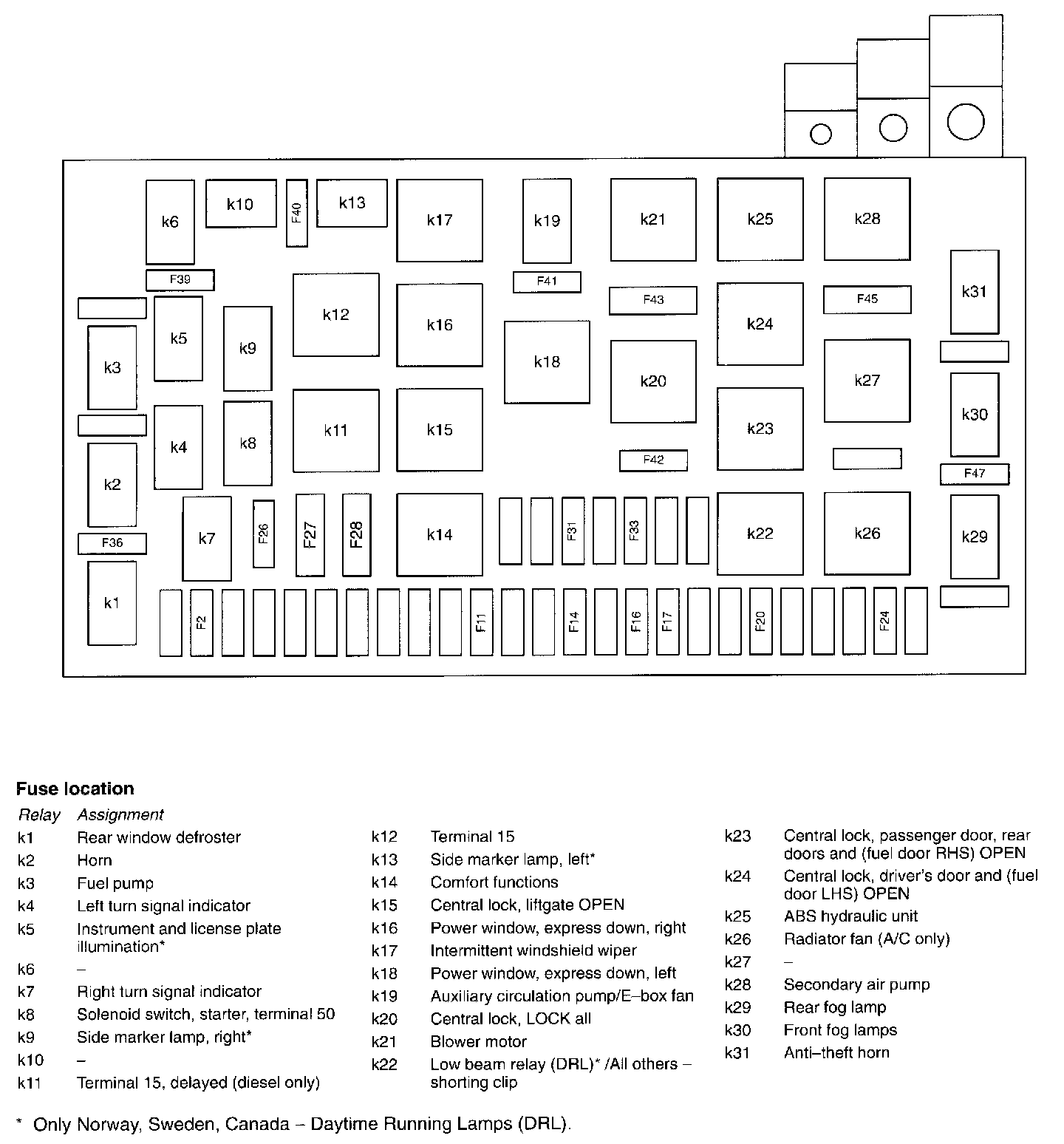

E-Box:

The E-Box is located in the driver's side (LHD) engine compartment in front of the bulkhead. Wiring harnesses are connected to the bottom side of the E-Box. The top side of the E-Box houses fuses and relays.

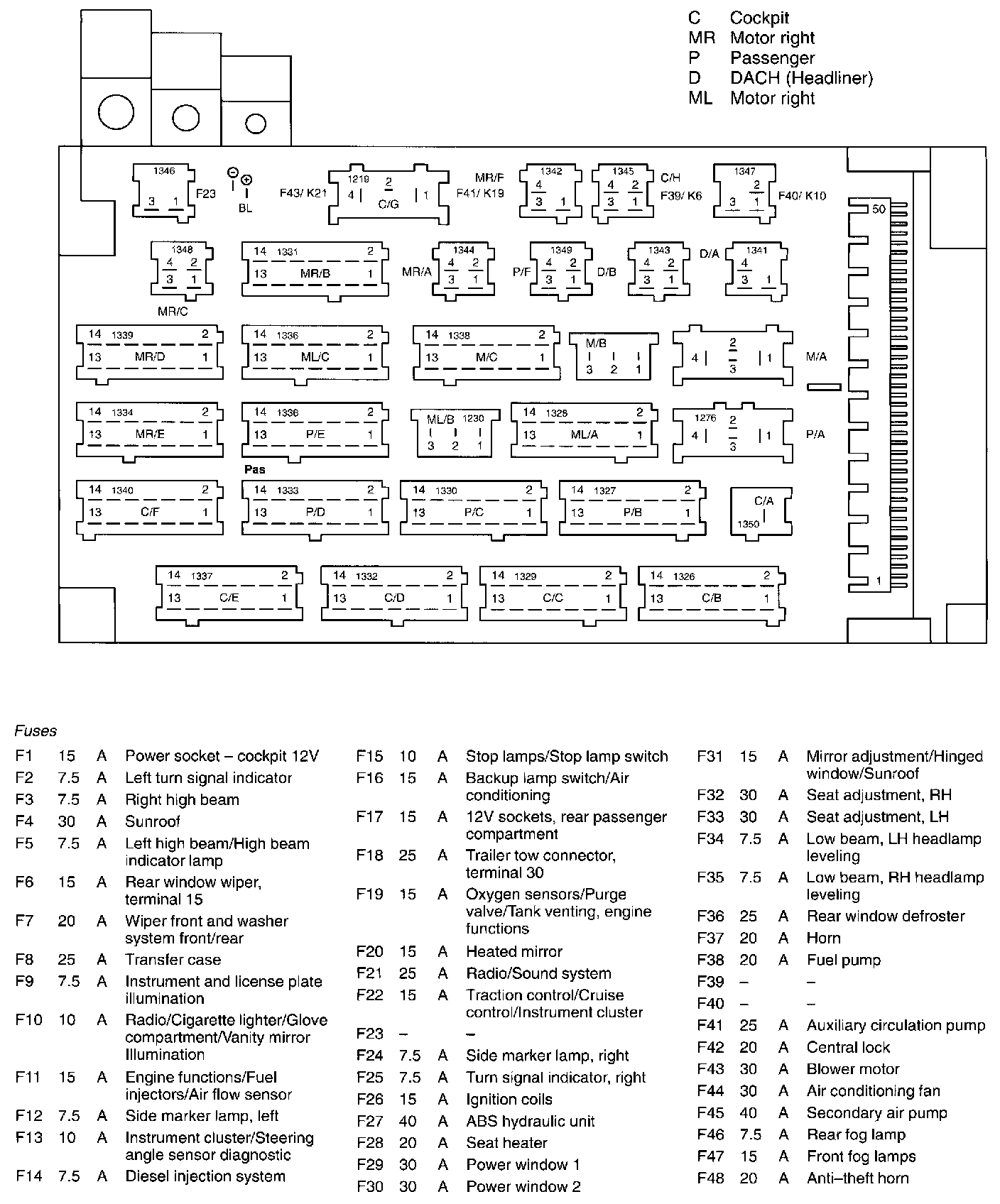

Fuse And Relay Box:
