AR54.10-P-0020GH Remove/Install Additional Socket

Removing And Installing Additional Socket







Removing, installing

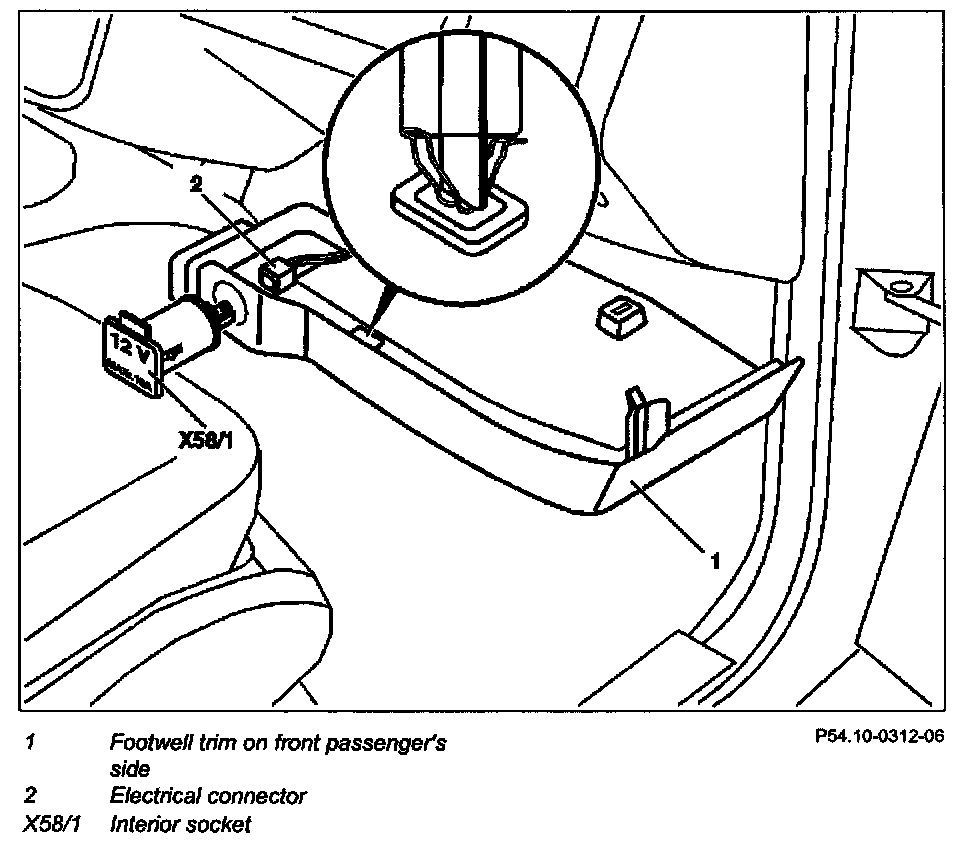

1 Remove footwell trim on front passenger's side (1)
2 Disconnect electrical connector (2)
3 Press interior socket (X58/1) forwards out of footwell trim

CAUTION: Support footwell trim adequately on a suitable base, risk of breakage.

4 Install in reverse order
5 Carry out function check
