AR54.10-P-0010GH Remove/Install Cargo Area Socket

Removing And Installing Cargo Area Connector Box







Removing, installing
1 Open rear lid

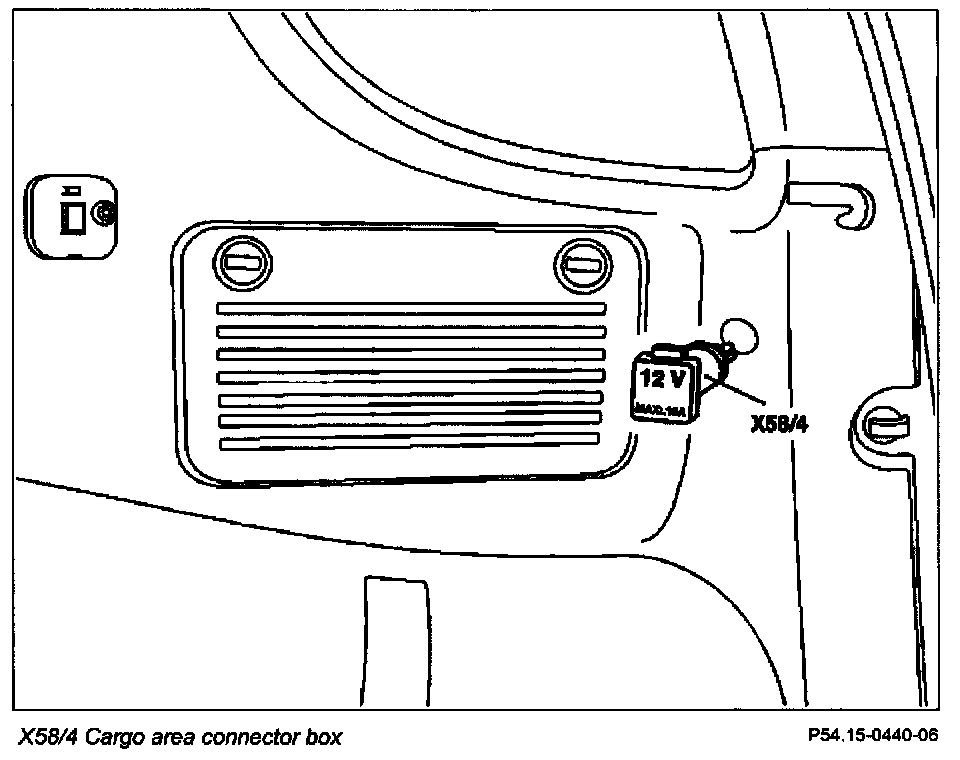

NOTE: The cargo area socket connector box (X58/4) is located in the right-hand side trim

2 Pull cargo area connector box forwards out of trim

CAUTION: Carefully prise out of trim using a suitable tool, e.g. plastic wedge

3 Disconnect electrical connections
4 Install in reverse order
5 Carry out function check
