Electrical Specifications

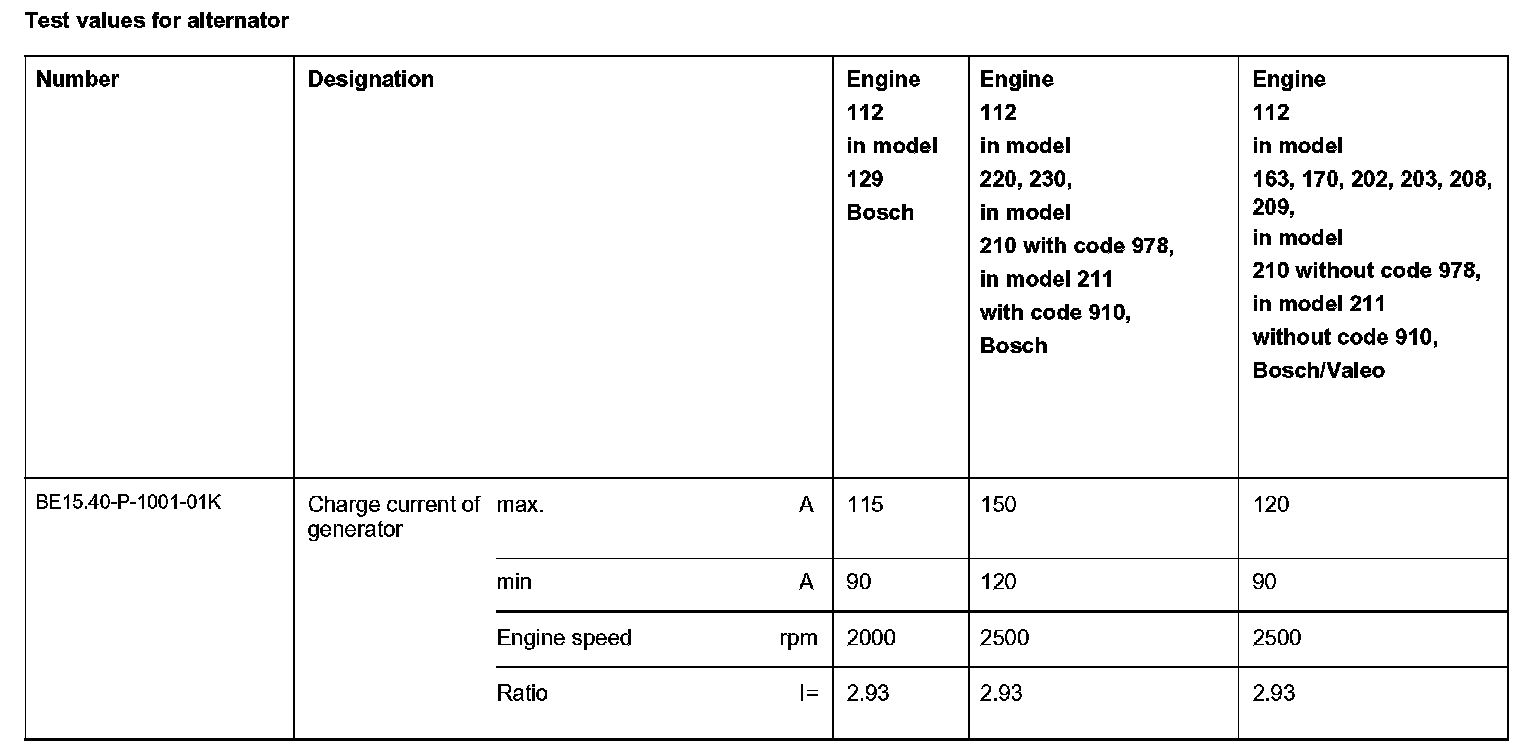

BE15.40-P-1000-01K Test values for alternator

Test values for alternator:

Test values for alternator:
