Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Washer Fluid Level Switch >> Description and Operation

Washer Fluid Level Switch: Description and Operation

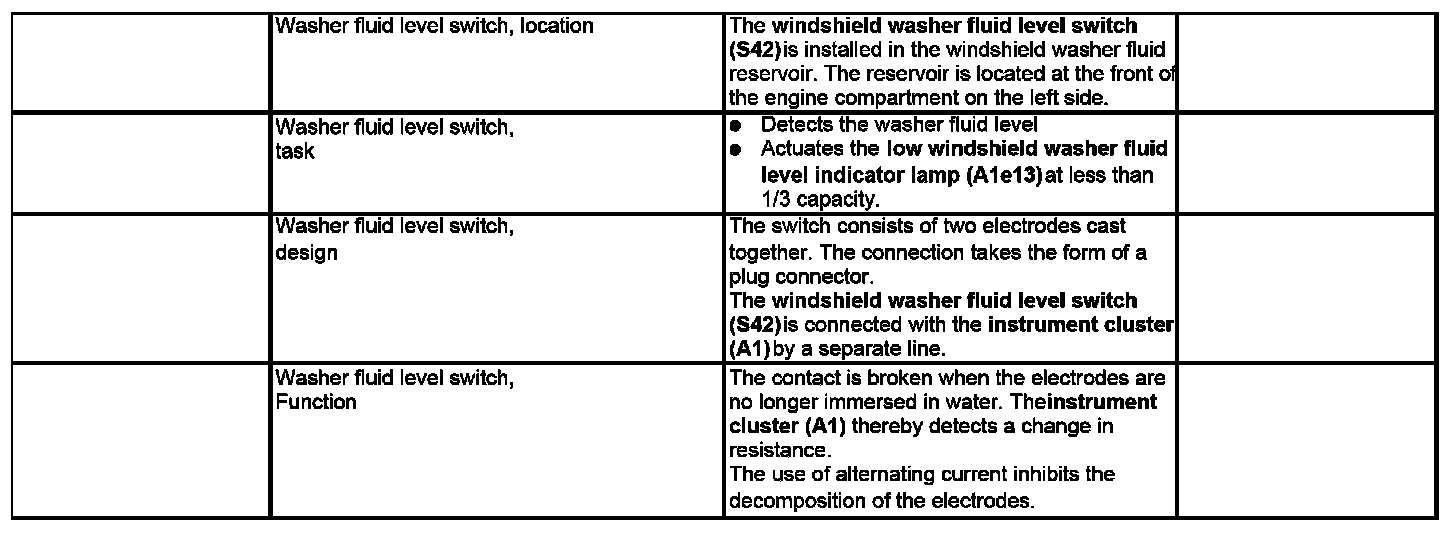

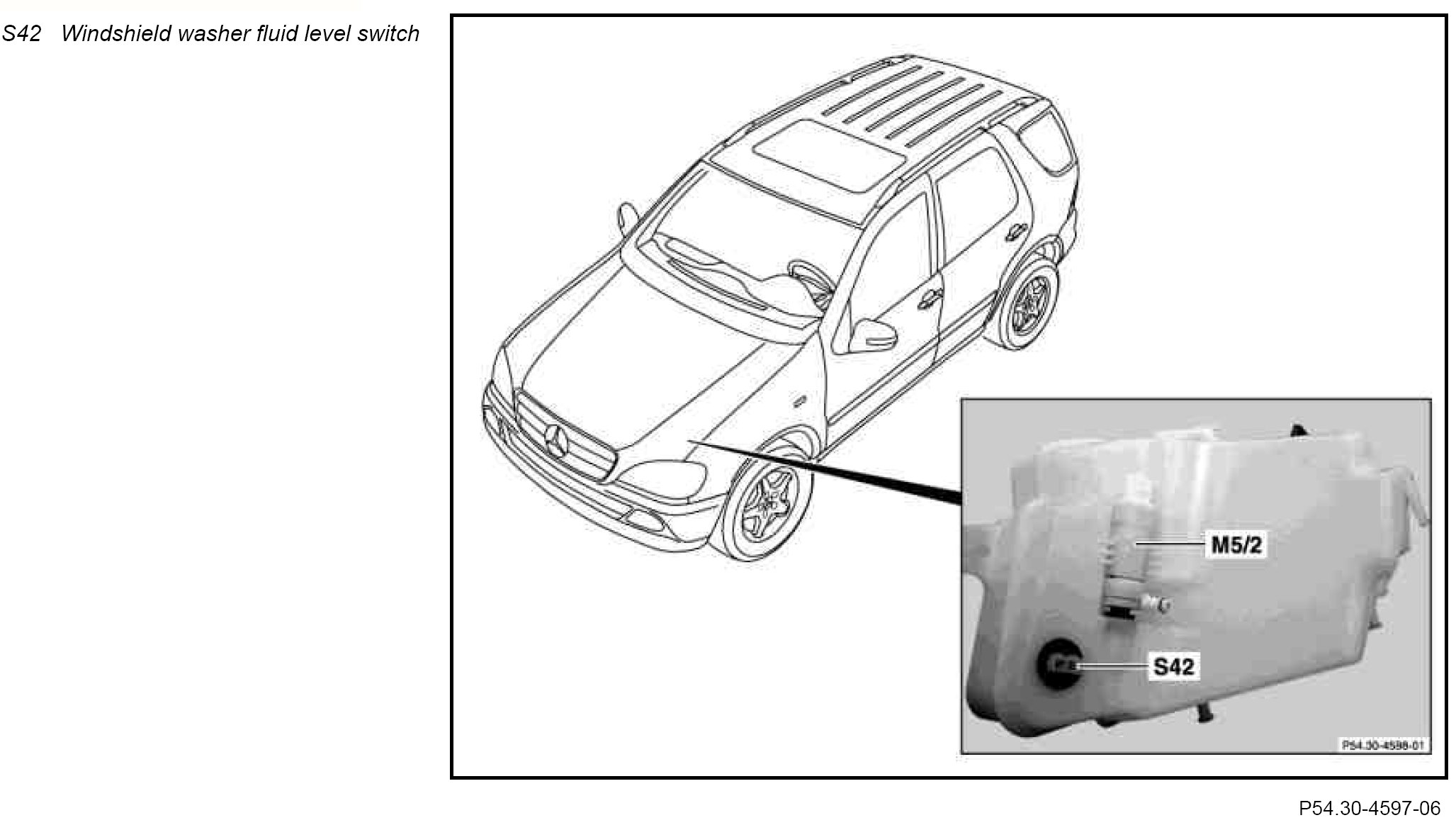

GF54.30-P-4105GH Washer Fluid Level Switch, Location / Task / Design / Function
