Power Window Switch: Service and Repair

Remove/Install Switch Group On Center Console
Model 163.154/174 #A as of 289565,
Model 163.157/175







Remove/Install

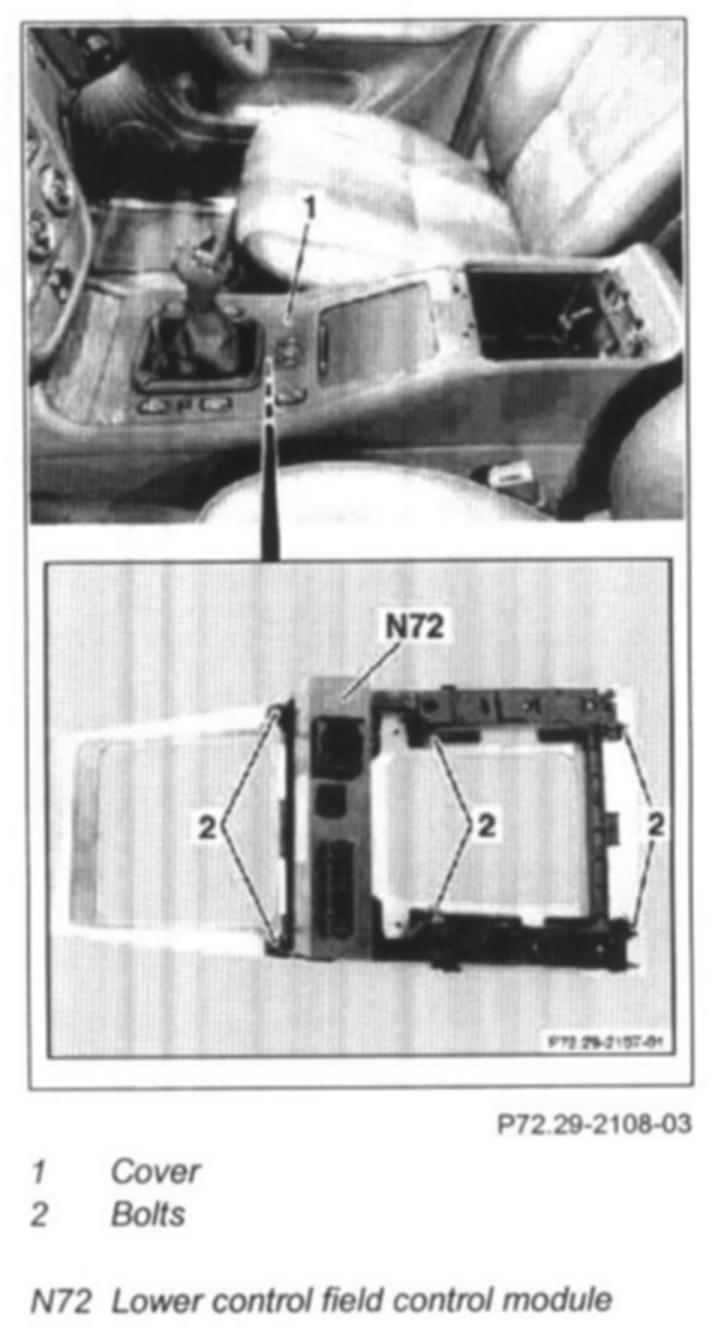

1 Remove cover (1) on gearshift lever
2 Remove screws (2) at the lower side of the lower control panel control module (N72)
3 Detach lower control panel control module (N72) from the cover

NOTE: The lower control panel control module can only be replaced as a unit

4 Install in the reverse order
