Outside Temperature Display Sensor: Service and Repair

Removing And Installing Outside Temperature Indicator Sensor







Removing, installing
1 Open engine hood and position upright

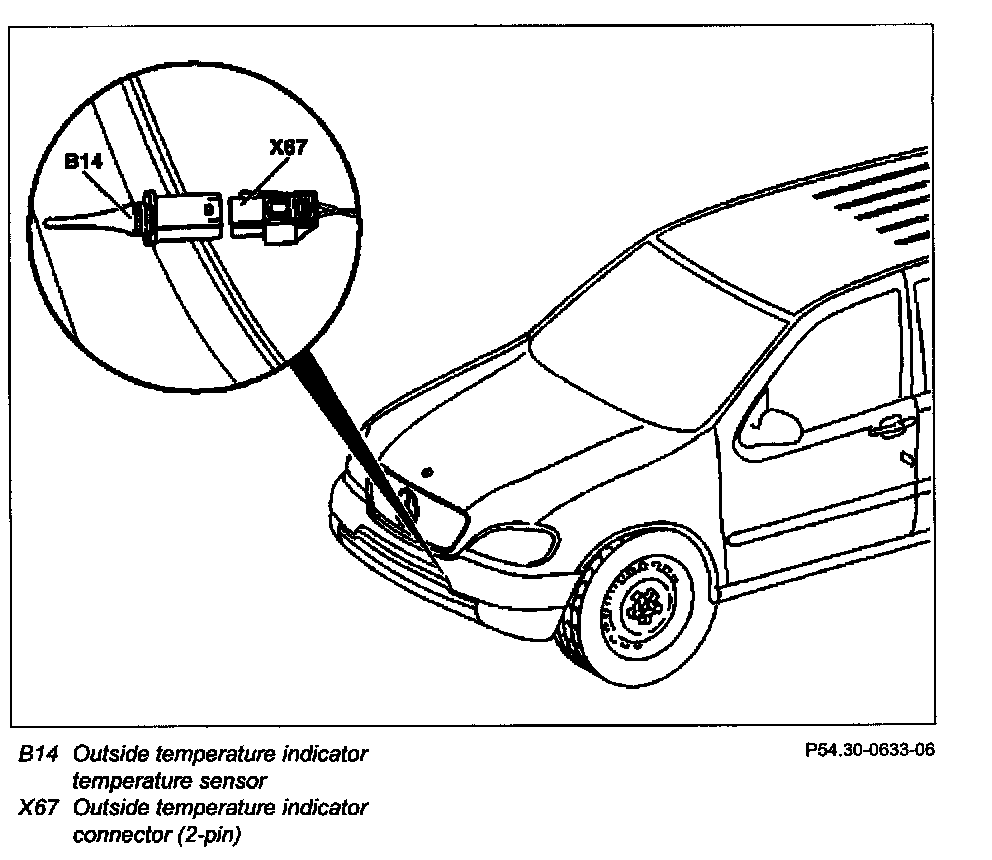

2 Pull outside temperature indicator temperature sensor (B14) out of mount in bumper

NOTE: Installation: Insert temperature sensor in the mount the in bumper until it locks in position.

3 Disconnect outside temperature indicator connector (2-pin) (X67) and remove outside temperature indicator temperature sensor
4 Install in reverse order
5 Carry out function test
