Engine - Oil Leaks Between Oil Level Sensor & Oil Pan

Date: February 26, 2007
Order No.: T-B-18.40/30b
Supersedes: T-B-18.40/30a dated July 6, 2006
Group: 18

Revision History

Revision Date Purpose
b 2/26/07 Warranty Information Updated
a 7/6/06 Applicable Models Updated
- 8/15/05 Initial issue

SUBJECT:
Model 163.154/157/172/174/175

Model164.175

Model251.175

Model463.246/249/271

Leakage Between Oil Level Sensor and Oil Pan

If you receive customer reports in the above model vehicles of oil leakage between the oil level sensor and the oil pan, the cause maybe due to the sealing ring being damaged by the burr at the oil pan installation hole. To resolve, remove and replace only the sealing ring as per the parts information listed below. Lightly oil the sealing ring prior to installation.

Inspect the surface of the oil pan oil level sensor installation hole. If extreme roughness or sharp edges are found, de-bur the rough surface of the oil pan hole with an emery cloth.

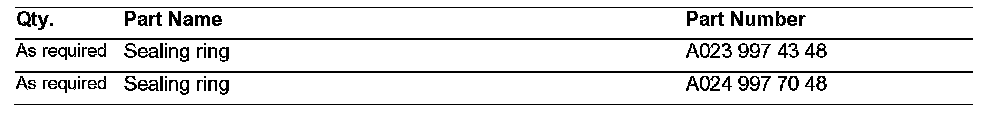

Parts Information

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair.

In Case of Warranty





Operation: Engine compartment panel, bottom - rear part, R&R (61-1072)
Engine oil level/oil quality sensor, replace (18-4110)
