AR42.30-P-0712GH Remove/Install Left or Right Front RPM Sensor

Remove/Install Left Or Right Front rpm Sensor







Work instructions

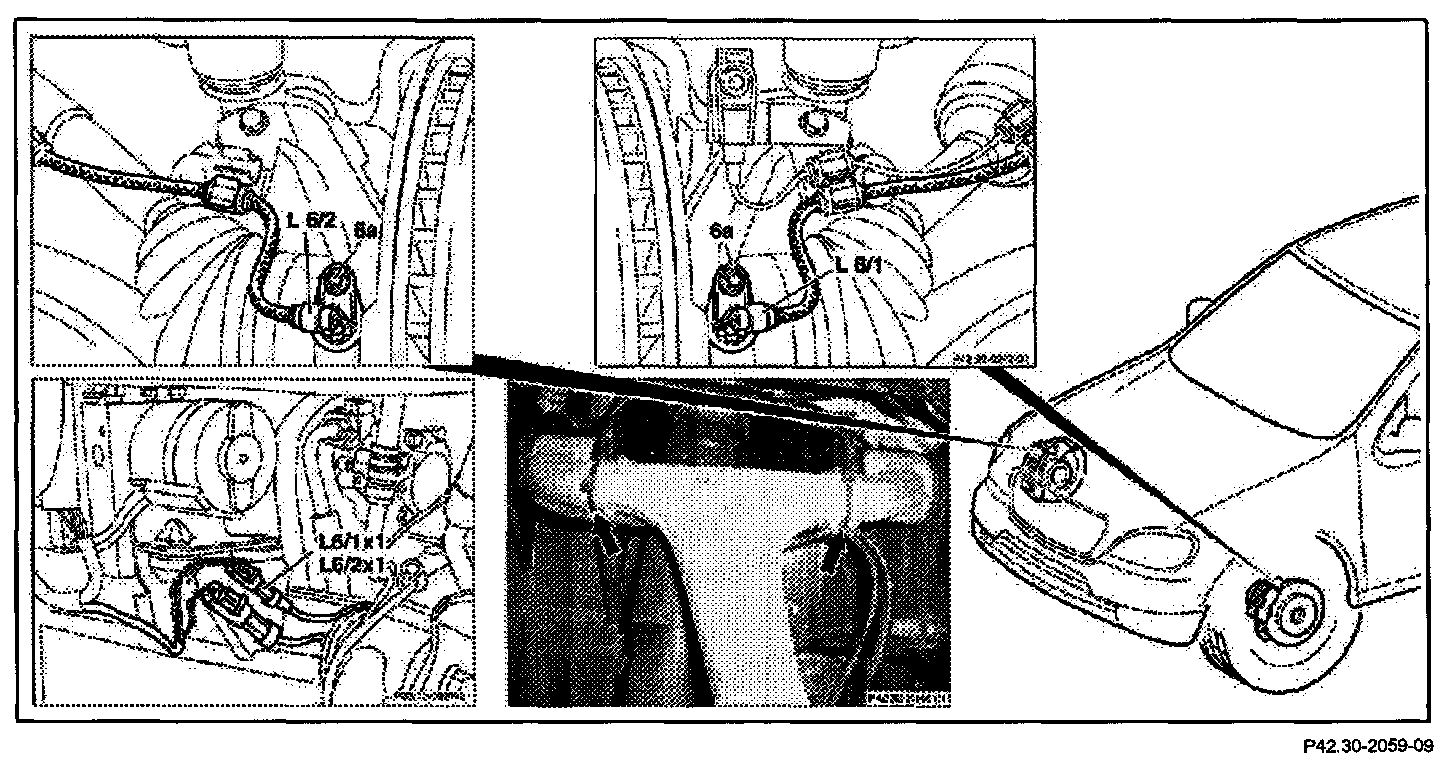

6a Rpm sensor bolts

NOTE: Installation: Install new bolts.

L6/1, L6/2 Left front rpm sensor and right front rpm sensor

NOTE:
- Installation: Check rotor on wheel hub for damage. Pay attention to cleanliness of magnetic tip. Fasten cables for rpm sensor on upper transverse control arm with cable straps (arrows) so that the cables are not damaged when the suspension is fully compressed and rebounded.
- Lightly grease bore for rpm sensor in wheel carrier with MB long-term grease: I MB long-term grease.

L6/1x1,L6/2x1 Rpm sensor connector

NOTE: Installation: Pay attention to correct routing.
