GF91.29-P-2100-02GM Front Seat Adjustment Switch Group, Function

GF91.29-P-2100-02GM Front Seat Adjustment Switch Group, Function
- with CODE (241) Memory for electrically adjustable left front seat
- with CODE (242a) Memory for electrically adjustable right front seat

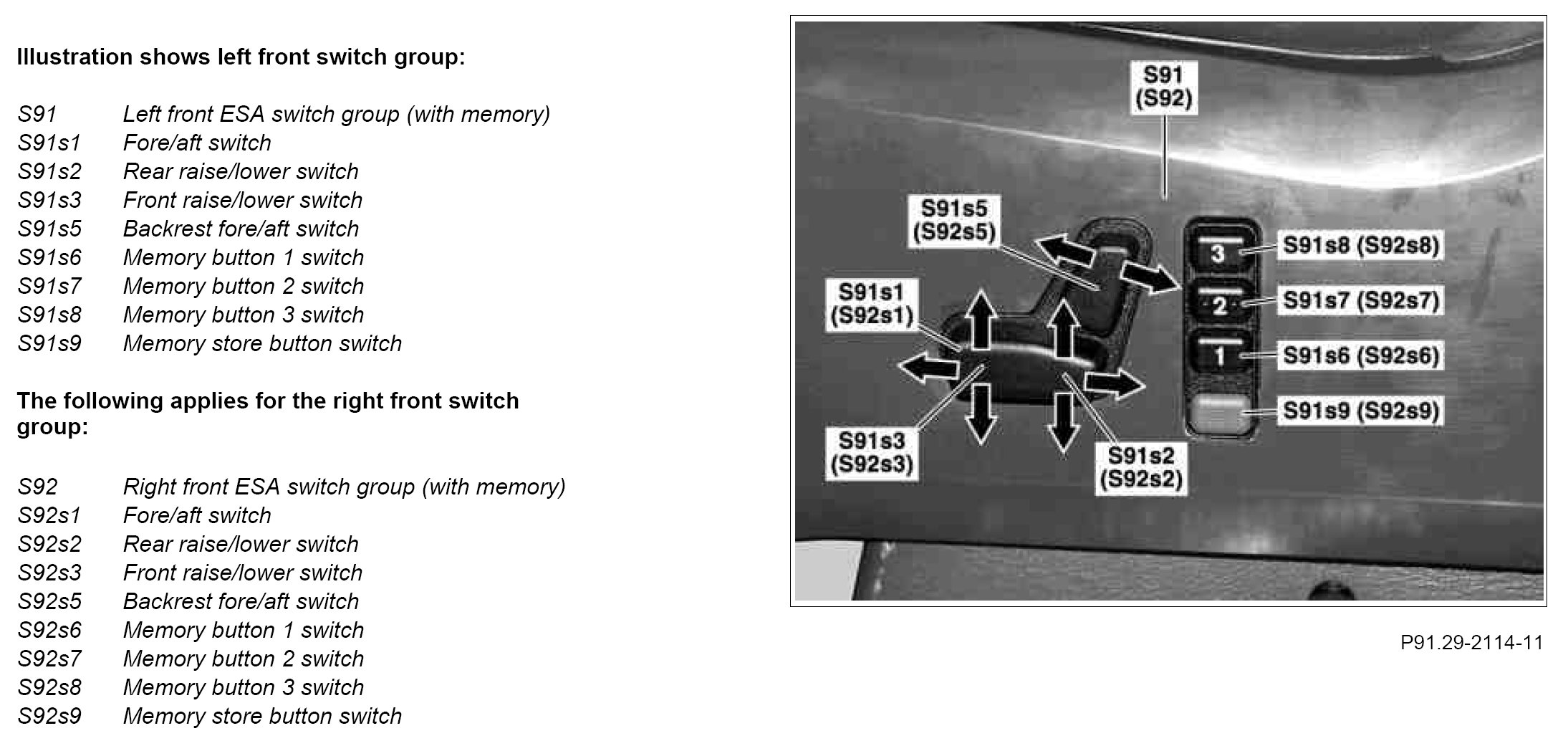

The seat can be adjusted to the desired position when the individual seat adjustment switches are actuated.

The seat position is sensed by one potentiometer each on the shafts of the individual motors for the adjustment functions. The assignment for the direction of rotation is accomplished automatically.

Button actuation
There are two possibilities for storing the seat position:
a. First press the memory button (S91s9 or S92s9) and hold down, then press the corresponding memory button (S91s6/ S91s7/S91s8 or S92s6/S92s7/S92s8) in addition.
b. First press and release the memory button (S91s9 or S92s9). Then press the corresponding memory location button ((S91s6/ S91s7/S91s8 or S92s6/S92s7/S92s8) (within ≤ 3 s).
c. Storage is accomplished in the left/right front seat adjustment control module with memory (N32/1, N32/2).

Calling up stored seat positions
Press the desired memory location button (S91s6/S91s7/S91s8 or S92s6/S92s7/S92s8) until the seat is adjusted to the stored position. When adjusting the seat, one adjustment function per group is actuated. If the position button is released while moving to a stored position the adjustment stops immediately.
