AR54.65-P-0001GH Remove/Install Parktronic System (Pts) Sensors In Front Bumper

Remove/Install Parktronic System (PTS) Sensors In Front Bumper







Remove/Install
1 Remove front bumper

NOTE:
- with styling package, code U49.
- As of 01.09 01

2 Put down bumper safely in a suitable place

CAUTION: Do not damage paintwork.

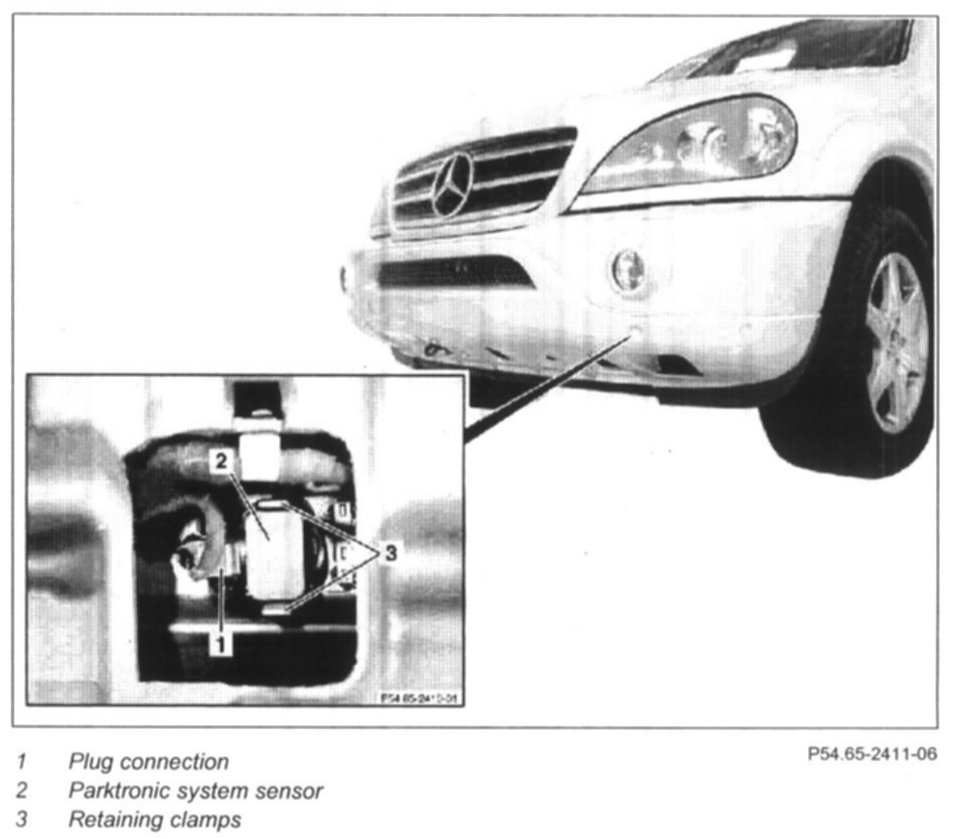

3 Disconnect connector (1) from Parktronic system sensor (2)
4 Remove Parktronic system sensor (2) from the bumper

CAUTION: Do not brake off the retaining damps (3)

- Release tool: See Special Tools below.

5 Install in the reverse order

Special Tools

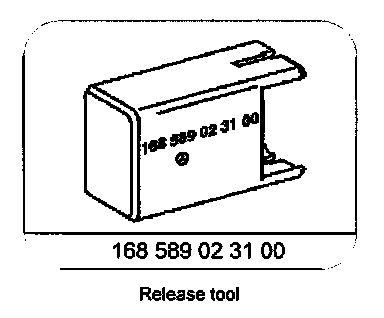

Release Tool P/N # 168 589 02 31 00:
