Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Service and Repair

Air Bag Control Module: Service and Repair

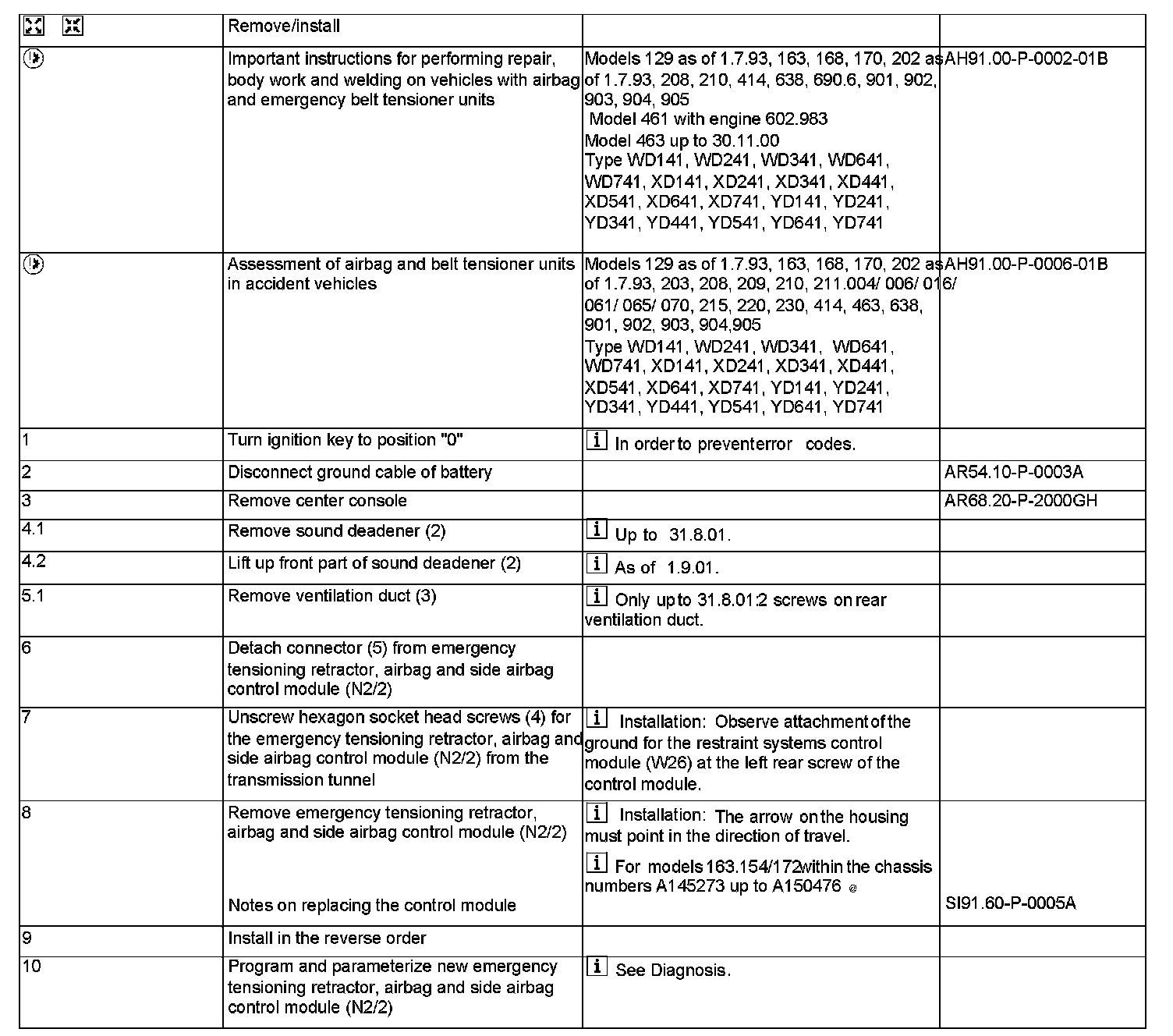

Remove/Install Airbag, Side Airbag And Emergency Tensioning Retractor Control Module
- with CODE (292) Side airbag at front left and right
