Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Restraints and Safety Systems >> Description and Operation >> GF91.60-P-0002-06B Supplemental Restraint System (SRS) - Location of Comp Driver/Pass Airbags, Emergency Tensioning

GF91.60-P-0002-06B Supplemental Restraint System (SRS) - Location of Comp Driver/Pass Airbags, Emergency Tensioning



GF91.60-P-0002-06B Supplemental Restraint System (SRS) - Location Of Components Driver/passenger Airbags, Emergency Tensioning Retractors And Side Airbags
- as of 1.12.99

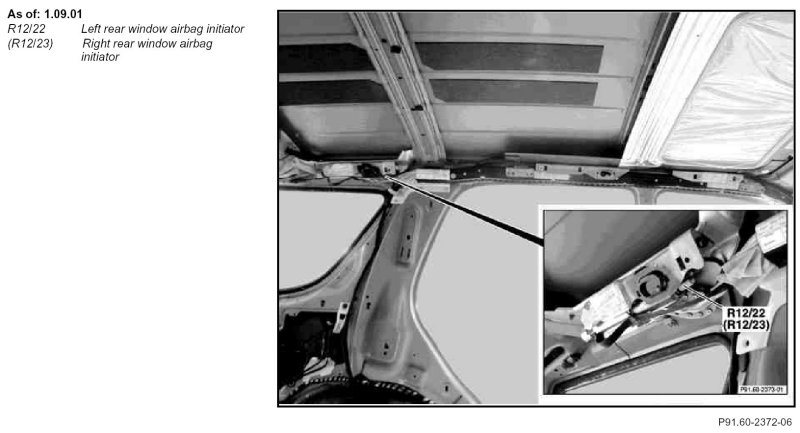

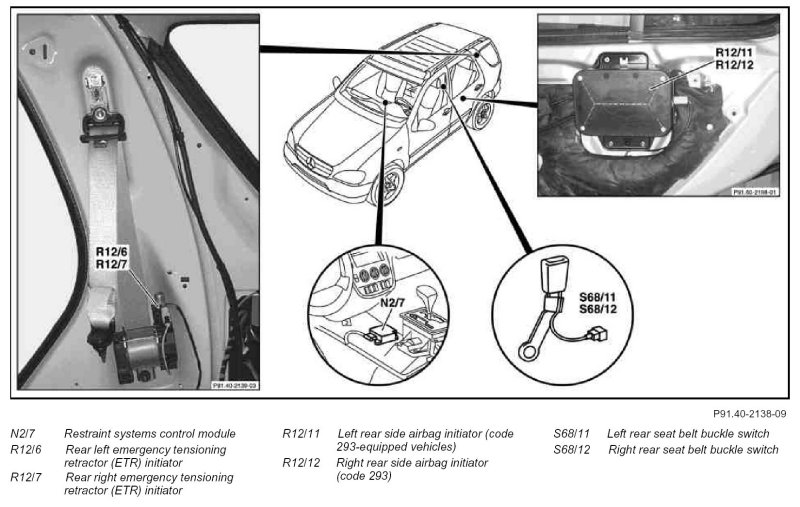

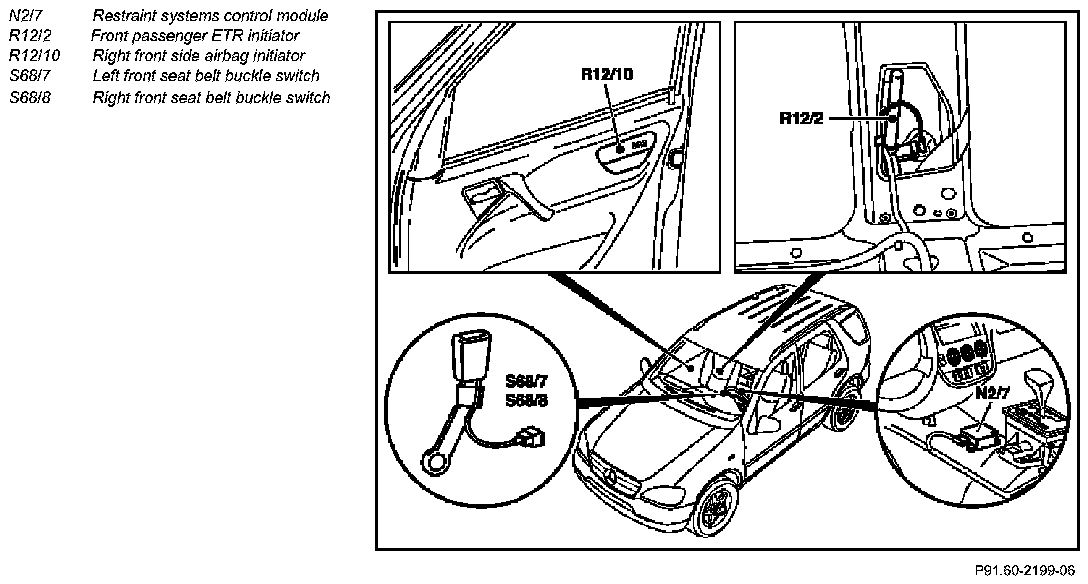

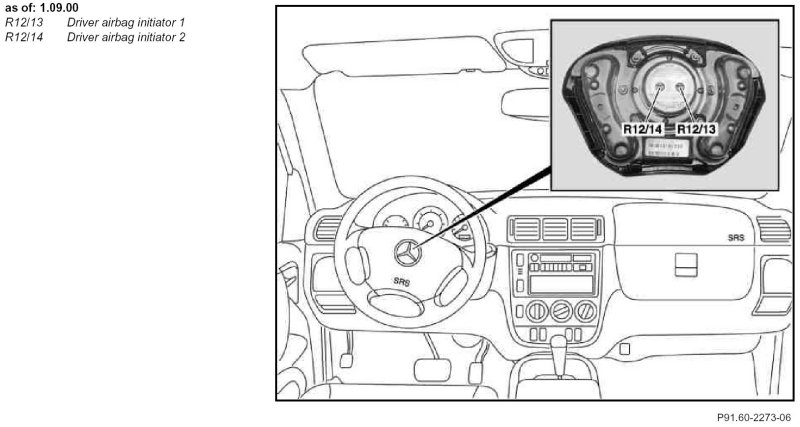

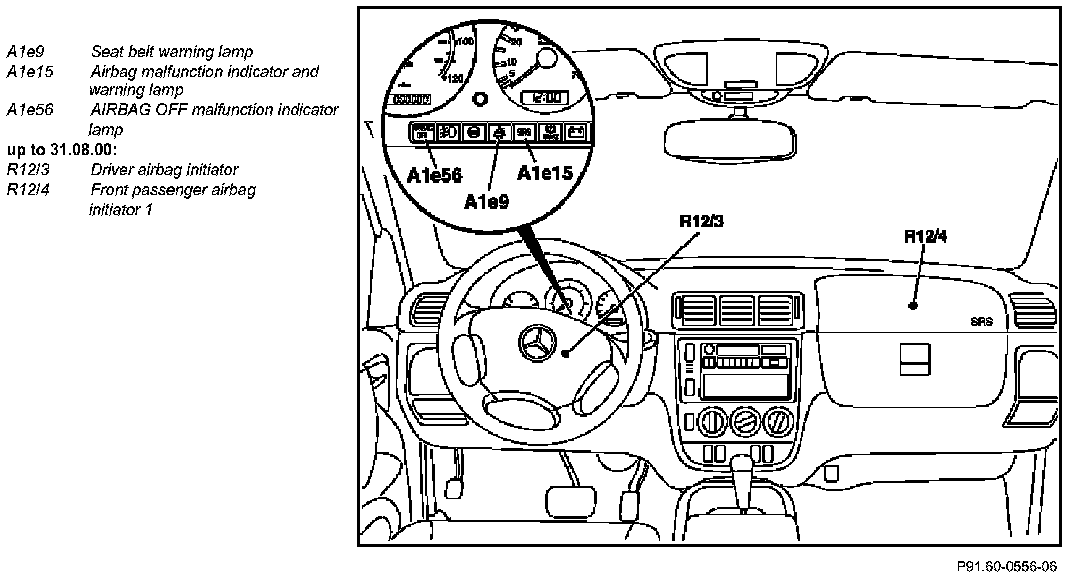

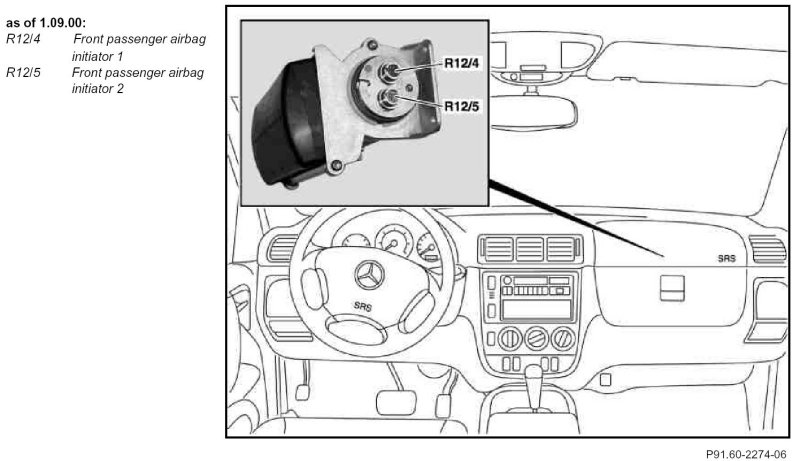

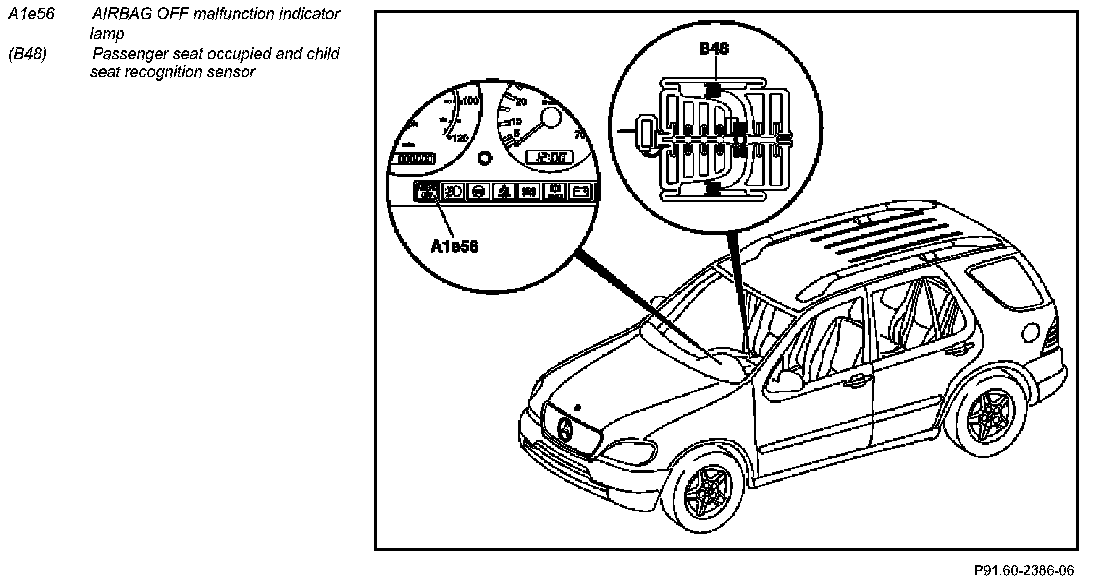

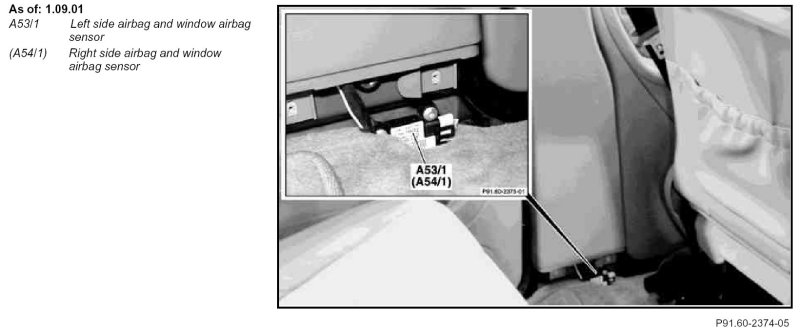

Component Identification:




Component Identification:




Component Identification:




Component Identification:




Component Identification:




Component Identification:
