Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Description and Operation >> GF91.60-P-4015B Rear Side Airbag - Location/Task/Design/Function

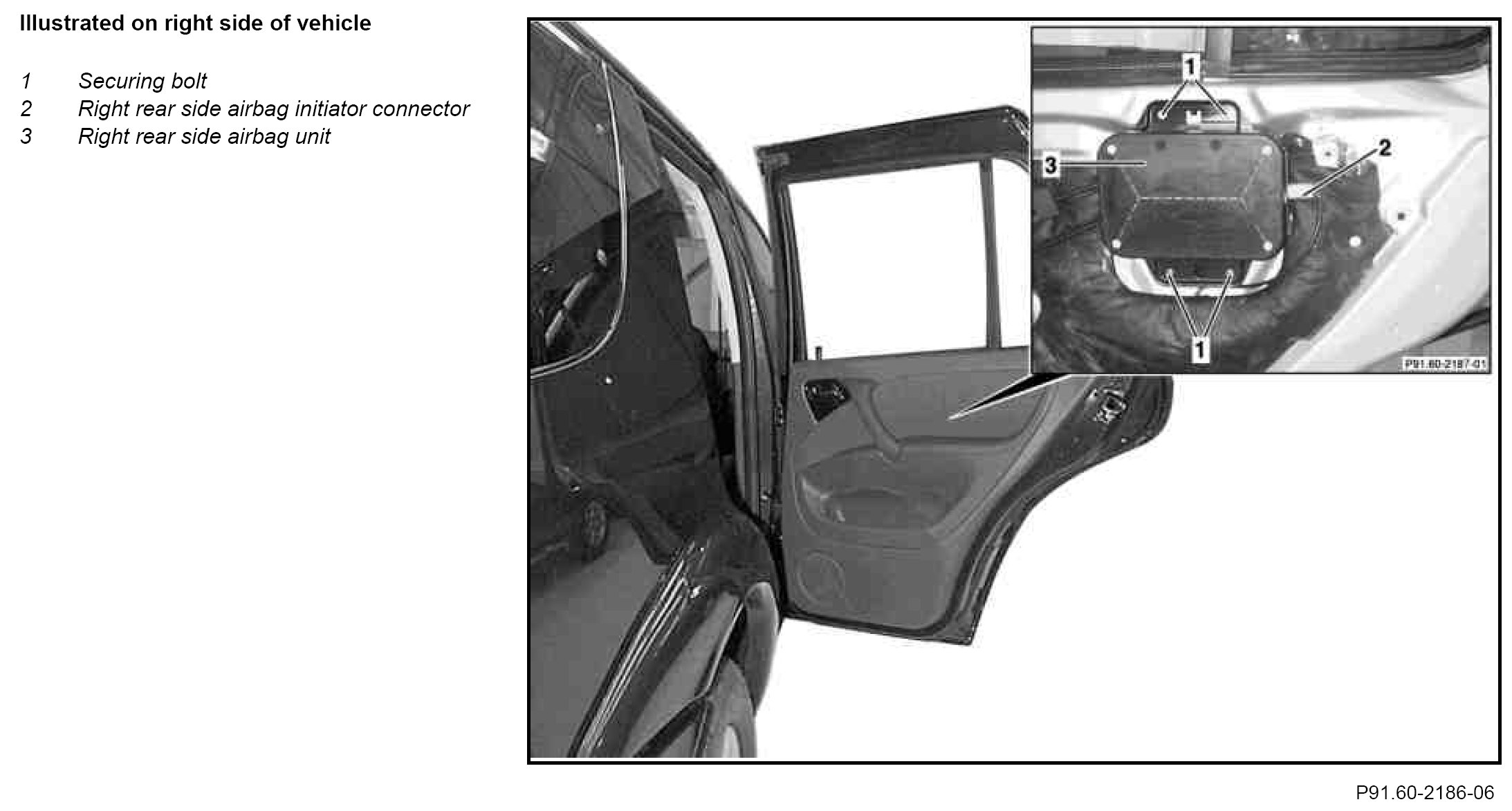

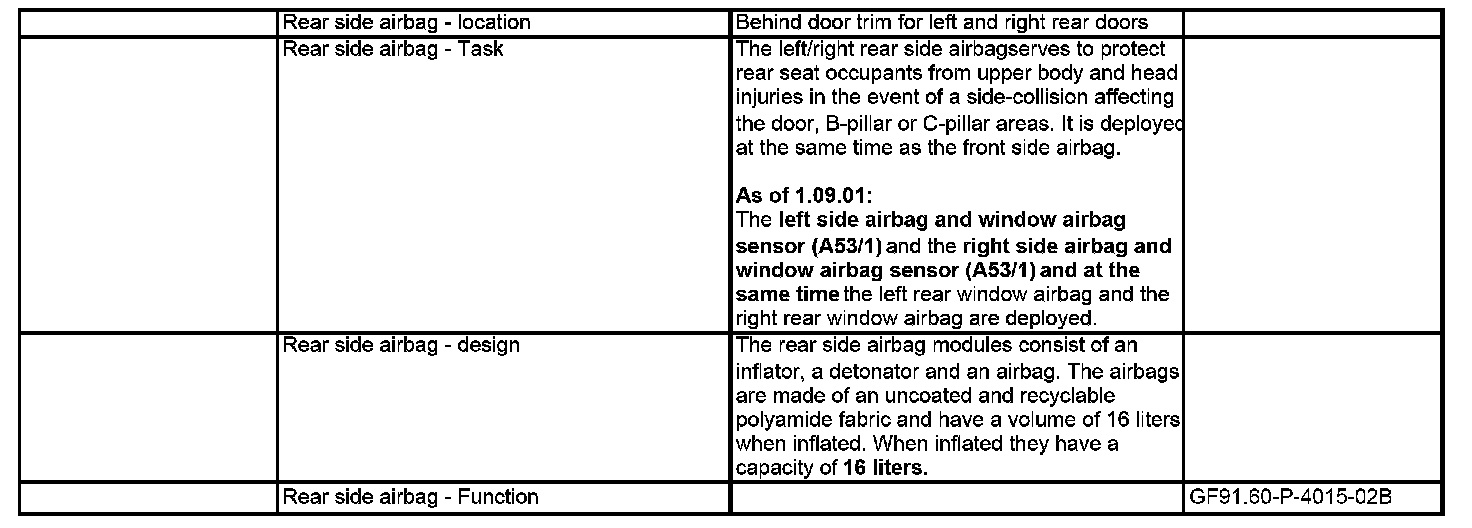

GF91.60-P-4015B Rear Side Airbag - Location/Task/Design/Function



GF91.60-P-4015B Rear Side Airbag - Location/Task/Design/Function
- with CODE (293) left and right rear side airbags
