Heated Glass Element Relay: Description and Operation

As of 12/99

Component Identification:

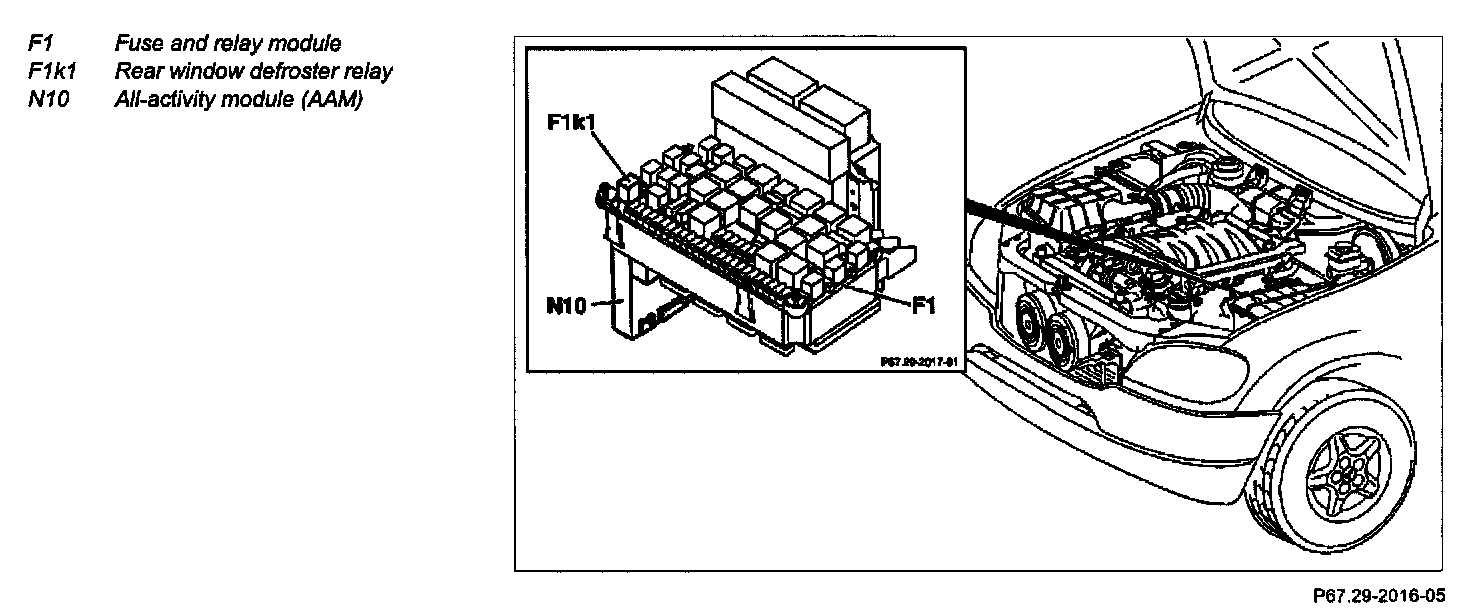

Rear window defroster relay, location
The rear window defroster relay (F1k1) is located on the left front in the engine compartment on the all-activity module (AAM) (N10).

Rear window defroster relay, purpose
The relay (F1k1) is the operating relay forth rear window defroster. It is actuated by the extended activity module (EAM) (N10/1).
Circuit 30 is connected to the rear window defroster (R1) by the antenna splitter (A2/5) over the closed switch contact of the relay.
